Clockspring Assembly / Spiral Cable: Testing and Inspection

INSPECTION

INSPECT SPIRAL CABLE

a. If there are any defects as mentioned below, replace the spiral cable with a new one:

Scratches, cracks, dents or chips on the connector or the spiral cable.

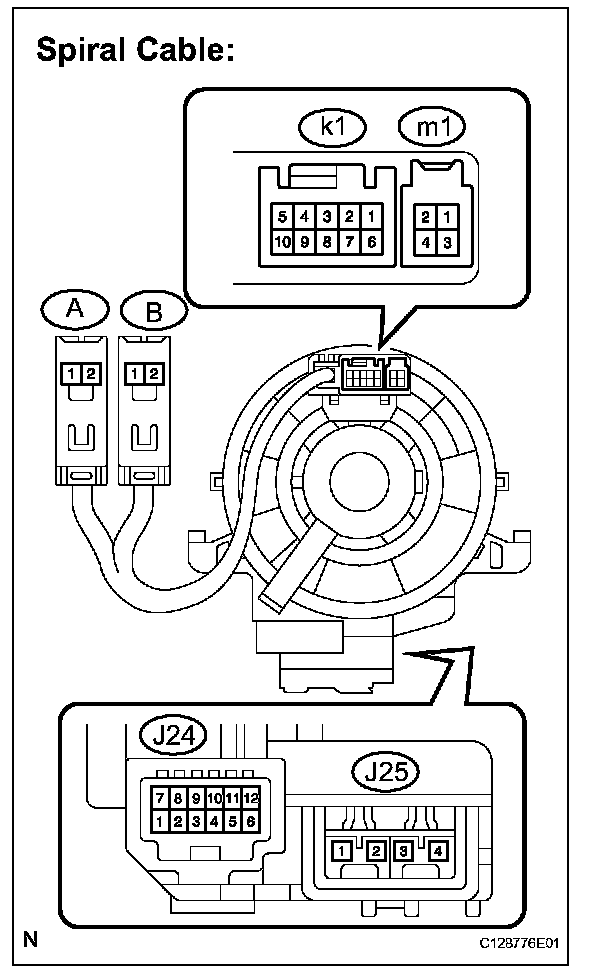

b. Inspect the spiral cable.

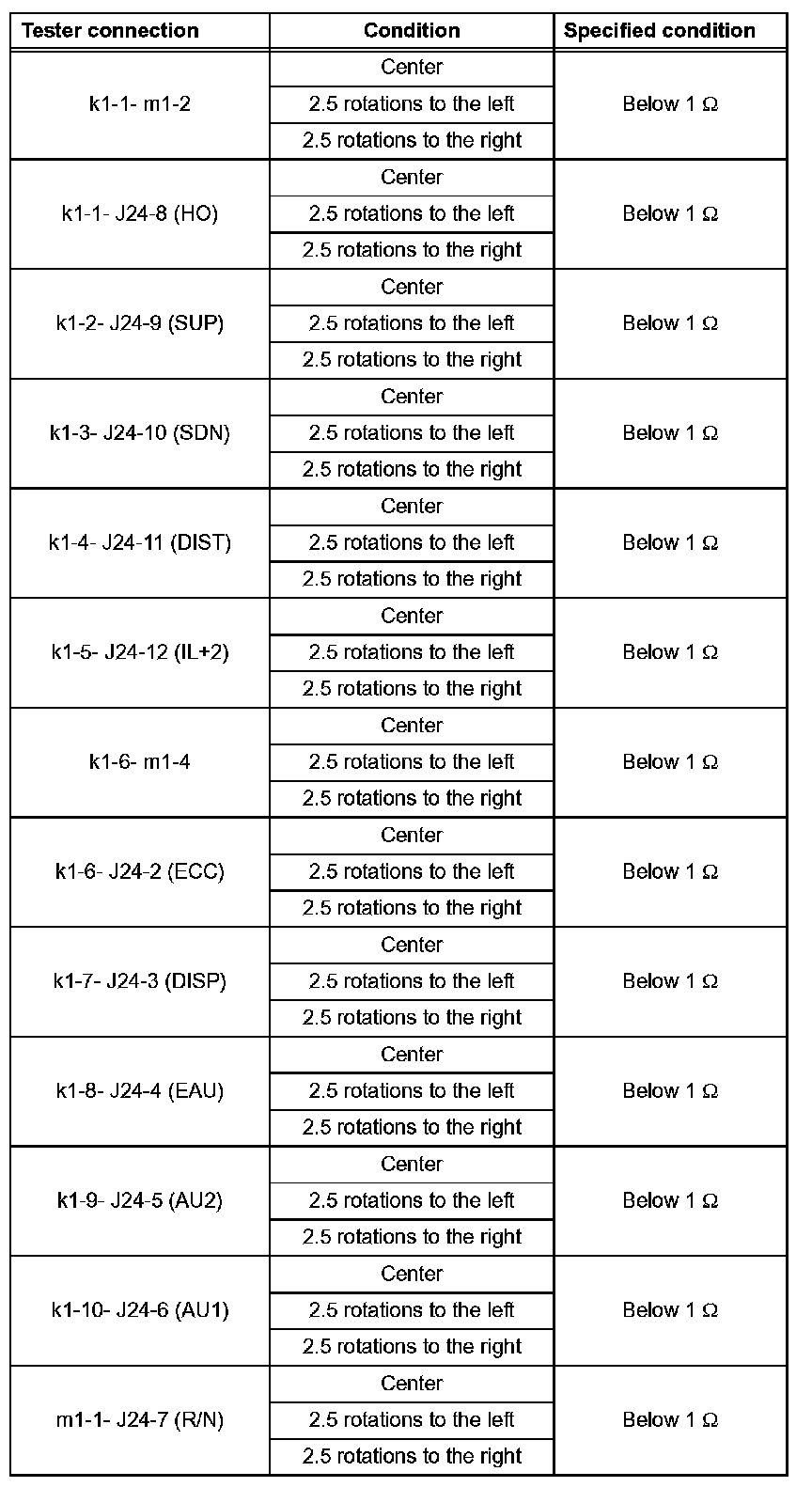

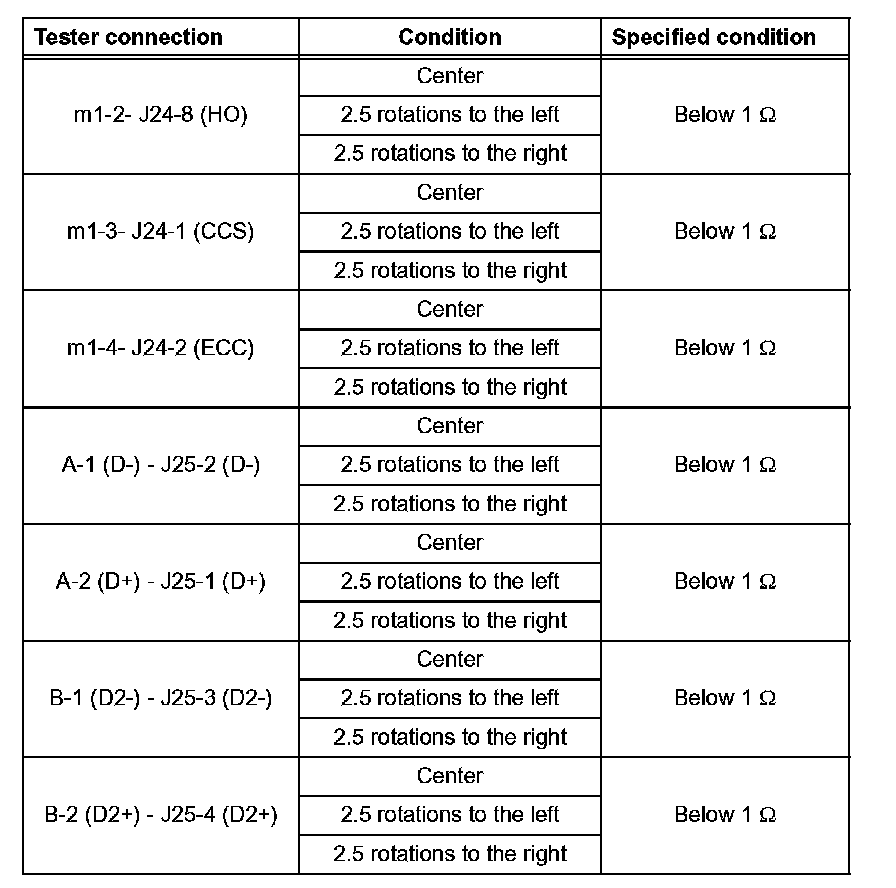

1. Measure the resistance according to the value(s) in the given table.
