Fuel Pressure Pulsation Damper: Service and Repair
REMOVAL1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE NO.1 ENGINE COVER SUB-ASSEMBLY
4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
5. DISCONNECT FUEL TUBE SUB-ASSEMBLY
HINT: Disconnect the metallic type connector
6. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

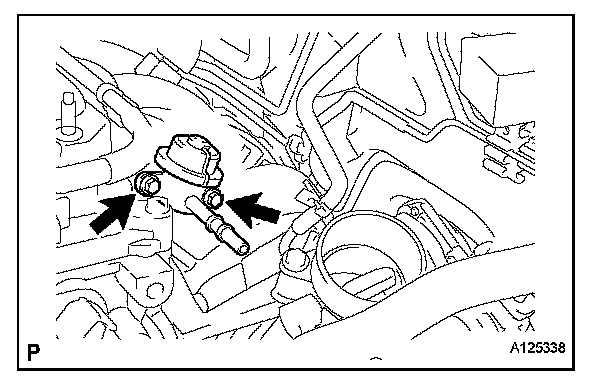

a. Remove the 2 bolts and fuel pressure pulsation damper.
INSTALLATION
1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
a. Apply a light coat of gasoline or spindle oil to the Oring of the fuel pressure pulsation damper.

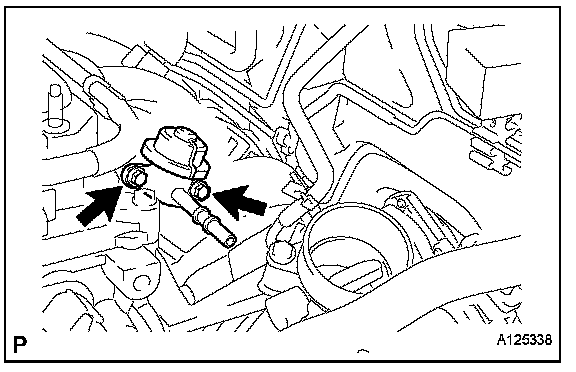

b. Install the fuel pressure pulsation damper with the bolts.
Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
NOTE: Make sure that the O-ring is not cracked or jammed before installing the damper.
2. INSTALL FUEL TUBE SUB-ASSEMBLY
HINT: Connect the metallic type connector
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. CHECK FOR FUEL LEAKS
6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
