Glove Box Lamp: Service and Repair
REMOVAL1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
3. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
5. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
6. REMOVE GLOVE BOX LIGHT ASSEMBLY

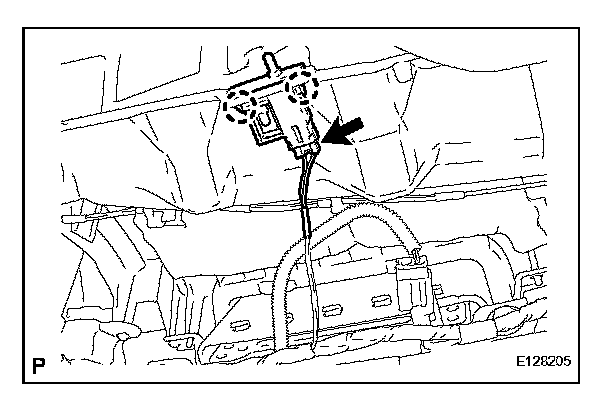

a. Disconnect the connector.
b. Disengage the 2 claws and remove the glove box light assembly.
INSTALLATION

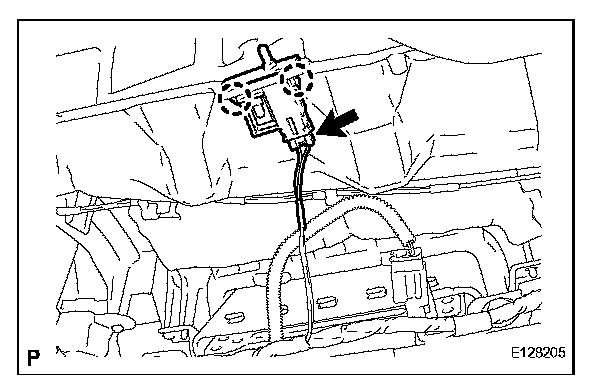

1. INSTALL GLOVE BOX LIGHT ASSEMBLY
a. Engage the 2 claws and install the glove box light assembly.
b. Connect the connector.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)
3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)
4. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
6. INSTALL FRONT DOOR SCUFF PLATE RH
