Door Lamp: Testing and Inspection

INSPECTION




1. INSPECT DOOR COURTESY LIGHT ASSEMBLY

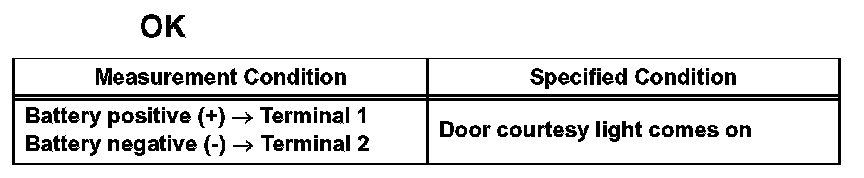

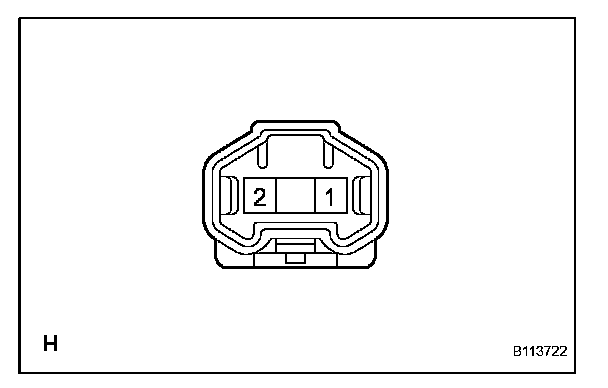

a. Apply battery voltage to the door courtesy light assembly connector.




b. Check that the door courtesy light comes on.
If the result is not as specified, replace the door courtesy light assembly.
