Reassembly

REASSEMBLY

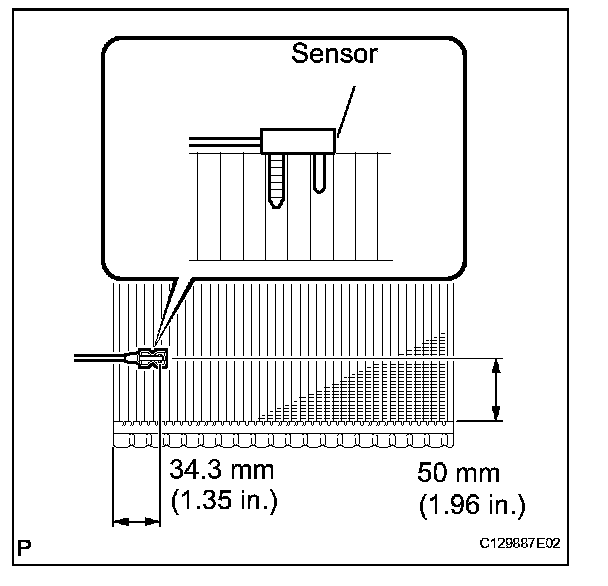

1. INSTALL NO. 1 COOLER THERMISTOR (for TMC Made)
a. If using a new evaporator:
1. Install the No. 1 cooler thermistor to the evaporator as shown in the illustration.




b. If reusing the evaporator:
1. Install the No. 1 cooler thermistor to the evaporator as shown in the illustration.




2. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY (for TMC Made)
a. Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces. Install the 2 O-rings to the No. 1 cooler evaporator sub-assembly.

Compressor oil: ND-OIL 8 or equivalent

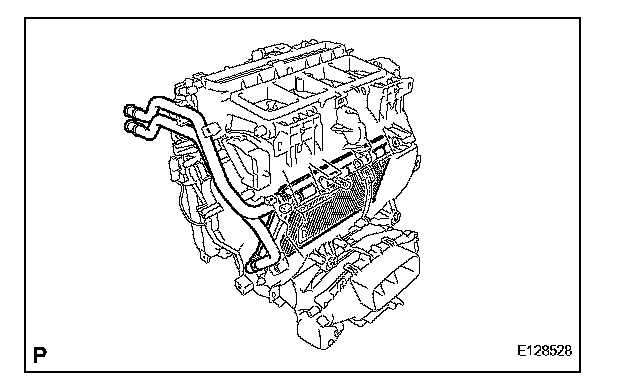

b. Install the No. 1 cooler evaporator sub-assembly.

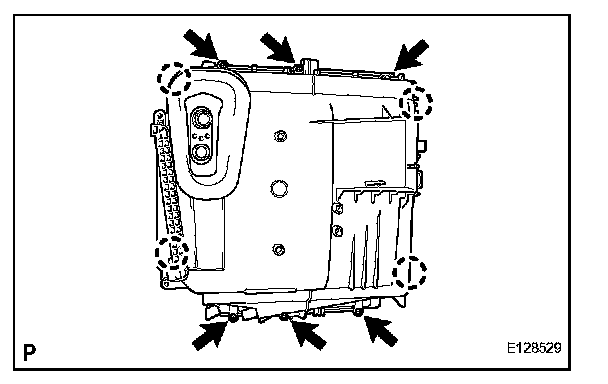

c. Engage the 4 claws and install the plate cover with the 6 screws.




3. INSTALL COOLER EXPANSION VALVE (for TMC Made)
a. Using a 4 mm hexagon wrench, install the cooler expansion valve with the 2 hexagon bolts.

Torque: 3.5 N.m (35 kgf.cm, 30 in.lbf)

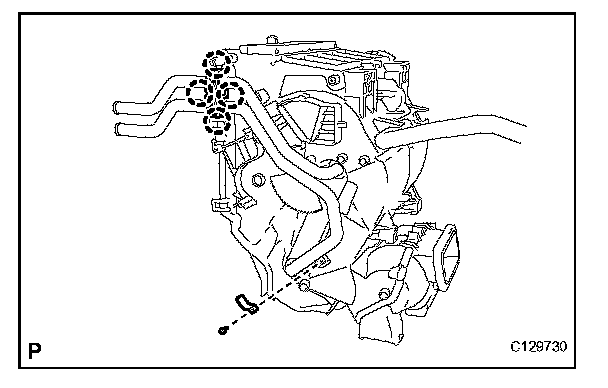

4. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY (for TMC Made)
a. Install the heater radiator unit sub-assembly to the air conditioner radiator assembly.




b. Install the clamp with the screw.
c. Engage the 4 claws and install the heater clamp.




5. INSTALL AIR MIX CONTROL SERVO MOTOR (for Automatic Air Conditioning System)
a. Install the air mix control servo motor with the 2 screws.

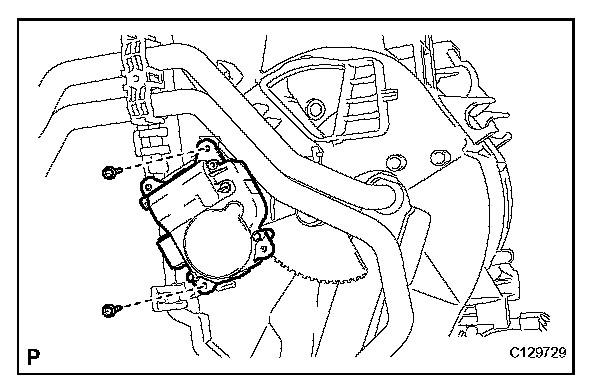

6. INSTALL AIR OUTLET CONTROL SERVO MOTOR (for TMC Made)
a. Install the air outlet control servo motor with the 3 screws.

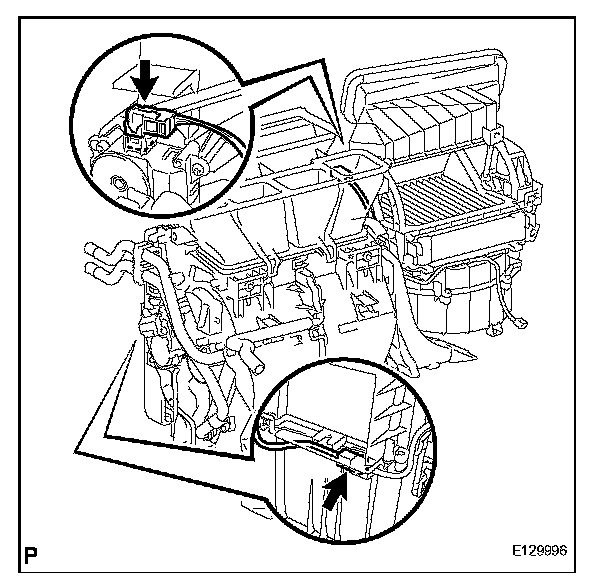

b. Connect the 2 connectors and install the air conditioner harness.

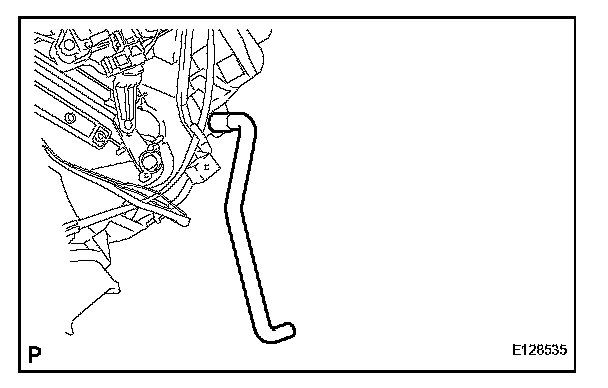

7. INSTALL DRAIN COOLER HOSE (for TMC Made)
a. Install the drain cooler hose to the air conditioner radiator assembly.

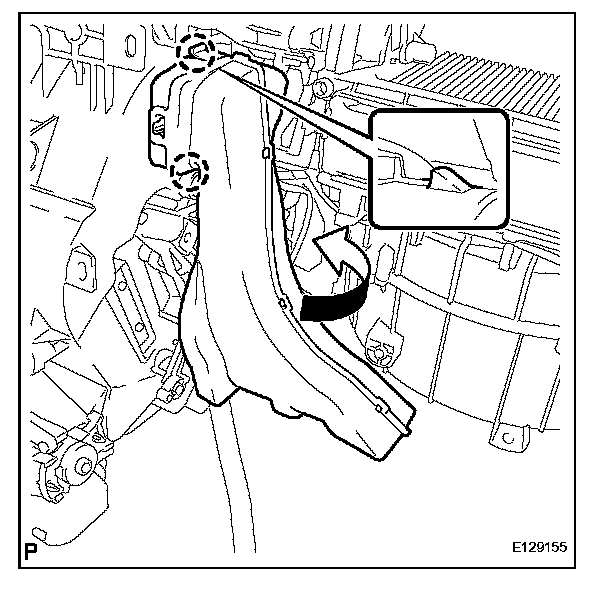

8. INSTALL NO. 6 HEATER TO REGISTER DUCT ASSEMBLY (for TMC Made)
a. Engage the 4 claws to install the No. 6 heater to register duct assembly.

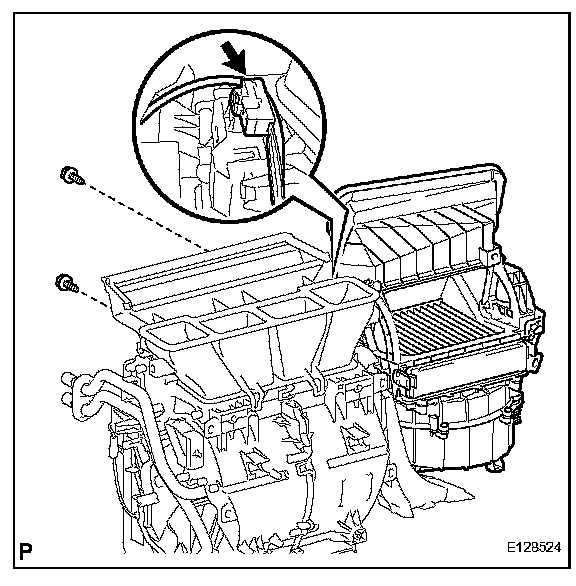

9. INSTALL BLOWER ASSEMBLY (for TMC Made)
a. Install the blower assembly with the 2 screws.
b. Connect the connector.

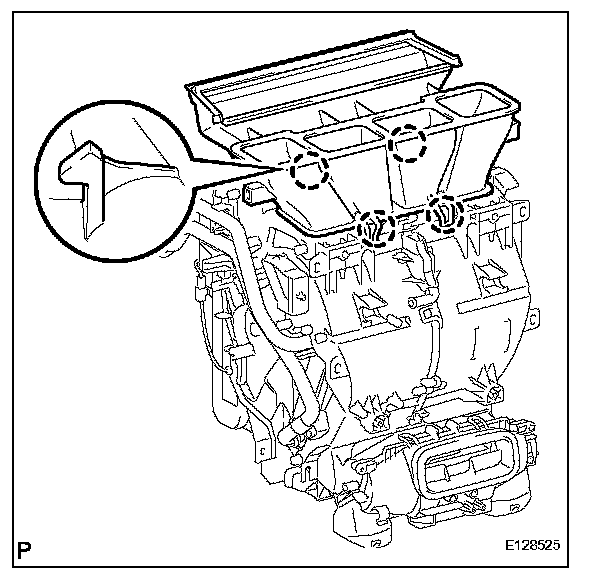

10. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY (for TMC Made)
a. Engage the 2 claws to install the No. 2 air duct sub-assembly.

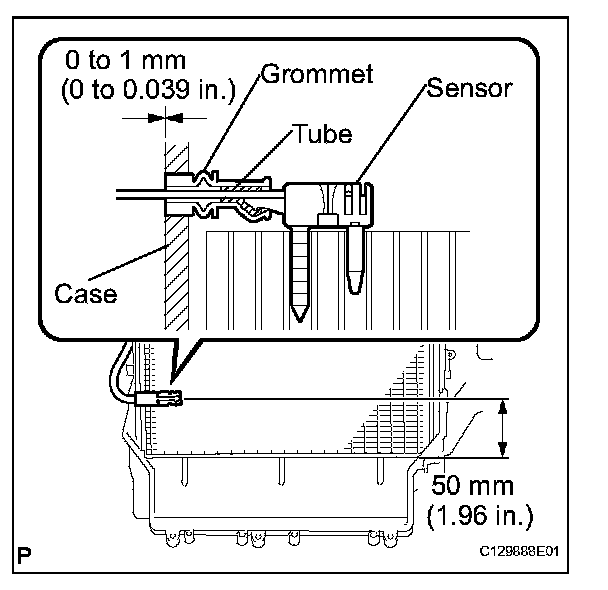

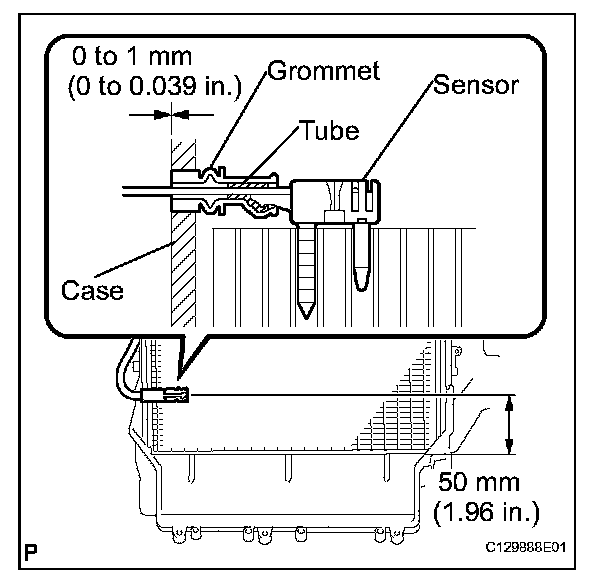

11. INSTALL NO. 1 COOLER THERMISTOR (for TMMK Made)
a. If using a new evaporator:
1. Install the No. 1 cooler thermistor to the evaporator as shown in the illustration.




b. If reusing the evaporator:
1. Install the No. 1 cooler thermistor to the evaporator as shown in the illustration.

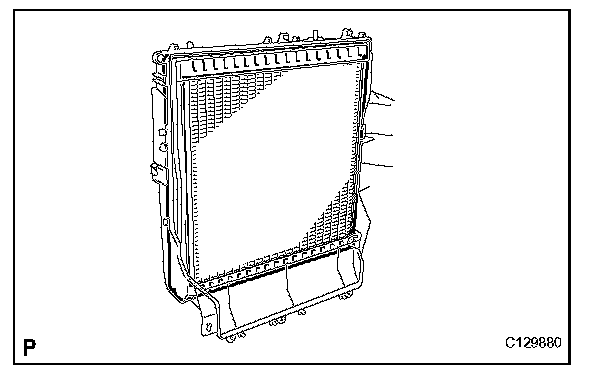

12. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY (for TMMK Made)

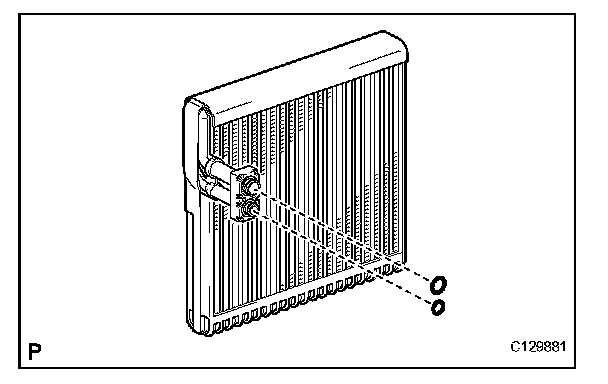

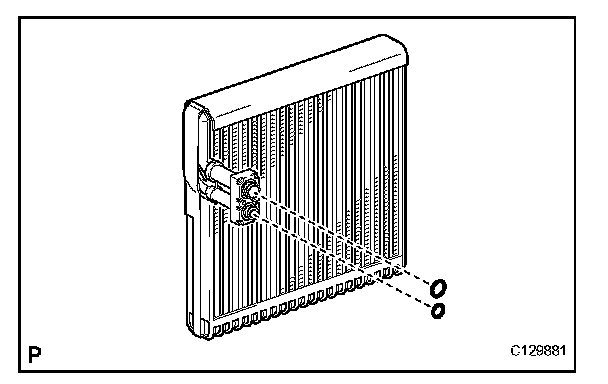

a. Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces. Install the 2 O-rings to the No. 1 cooler evaporator sub-assembly.

Compressor oil: ND-OIL 8 or equivalent

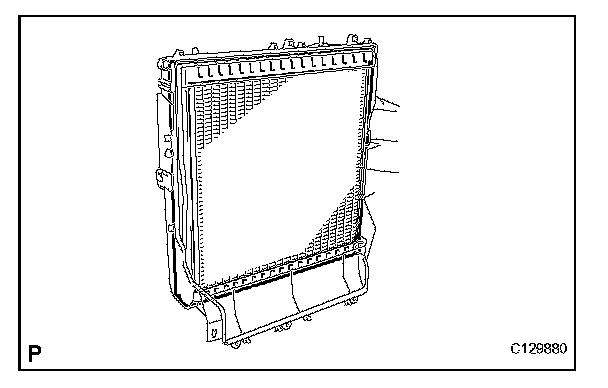

b. Install the No. 1 cooler evaporator sub-assembly.

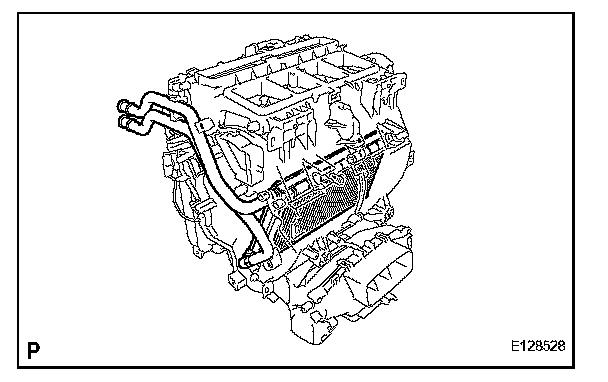

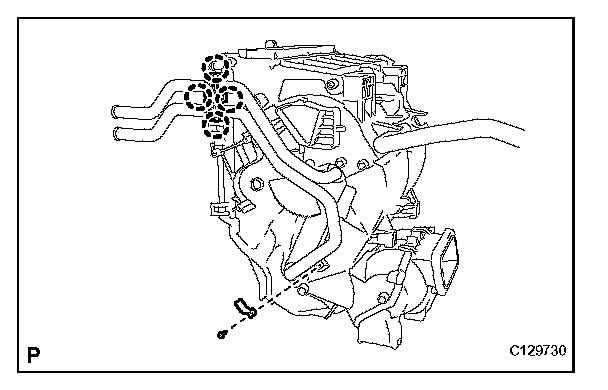

13. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY (for TMMK Made)
a. Install the heater radiator unit sub-assembly to the air conditioner radiator assembly.




b. Install the clamp with the screw.
c. Engage the 4 claws and install the heater clamp.

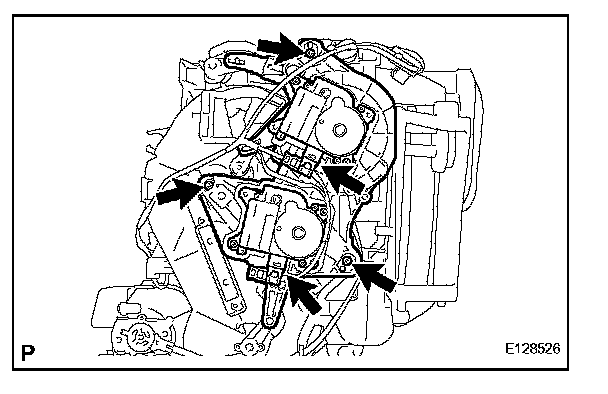

14. INSTALL AIR OUTLET CONTROL SERVO MOTOR (for TMMK Made)
a. Install the air outlet control servo motor with the 3 screws.

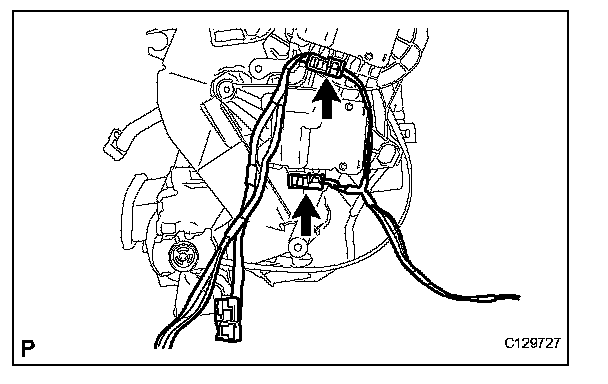

b. Connect the 2 connectors and install the air conditioner harness.

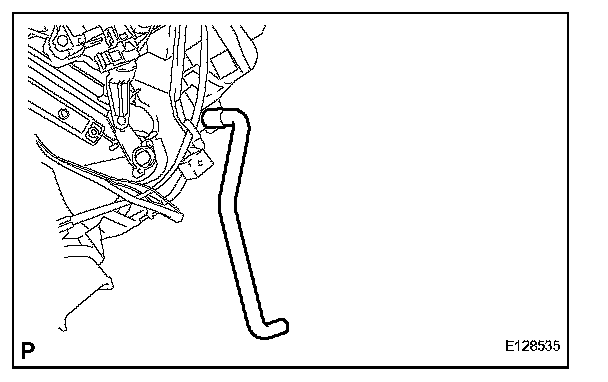

15. INSTALL DRAIN COOLER HOSE (for TMMK Made)
a. Install the drain cooler hose to the air conditioner radiator assembly.




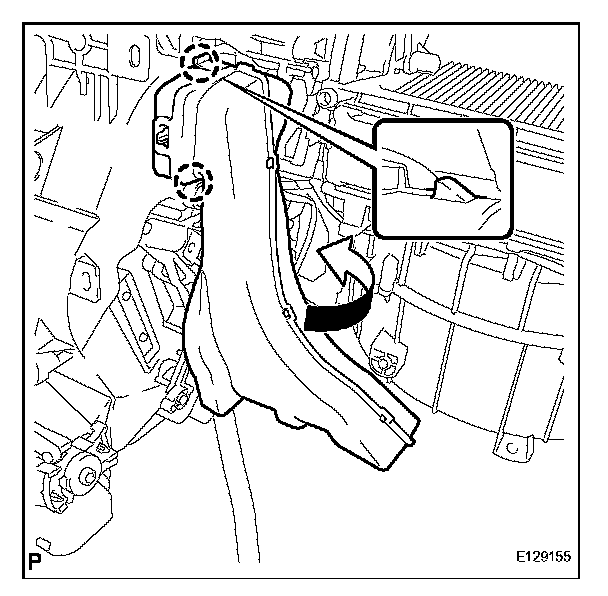

16. INSTALL NO. 6 HEATER TO REGISTER DUCT ASSEMBLY (for TMMK Made)
a. Engage the 4 claws to install the No. 6 heater to register duct assembly.

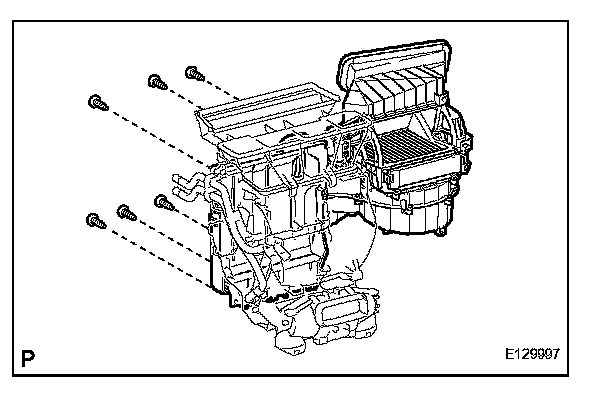

17. INSTALL BLOWER ASSEMBLY (for TMMK Made)
a. Install the blower assembly with the 6 screws.




b. Connect the connector.

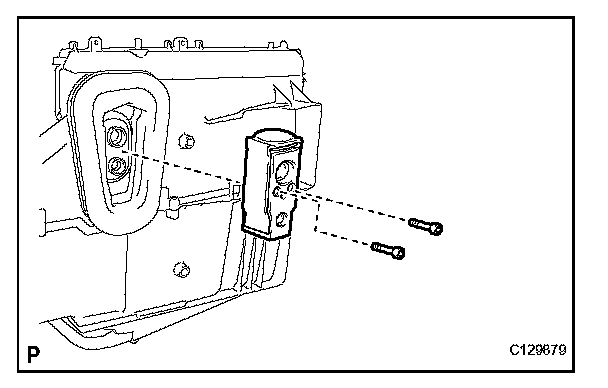

18. INSTALL COOLER EXPANSION VALVE (for TMMK Made)
a. Using a 4 mm hexagon wrench, install the cooler expansion valve with the 2 hexagon bolts.

Torque: 3.5 N.m (35 kgf.cm, 30 in.lbf)




19. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY (for TMMK Made)
a. Engage the 2 claws to install the No. 2 air duct sub-assembly.
