Overhaul

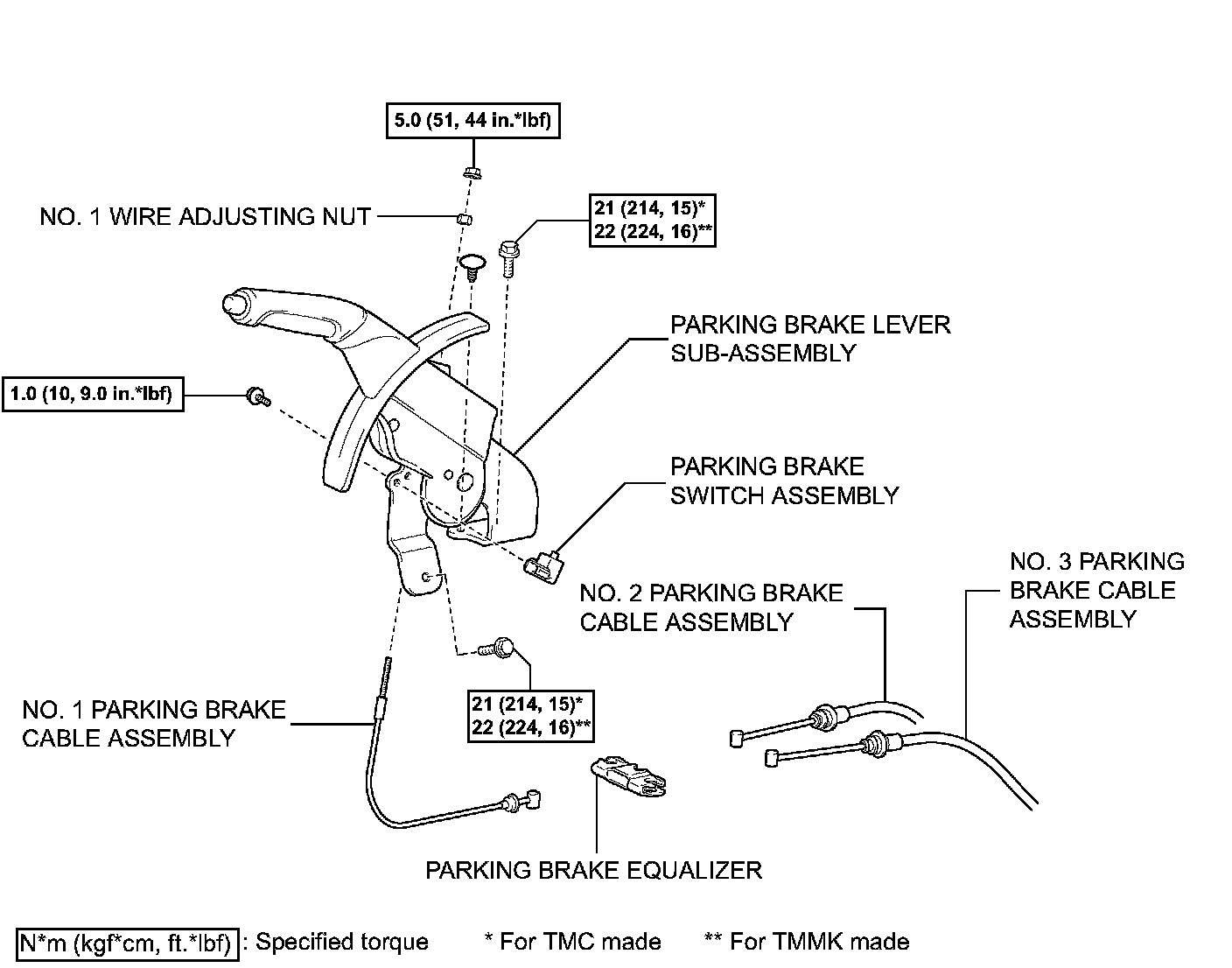

PARKING BRAKE LEVER

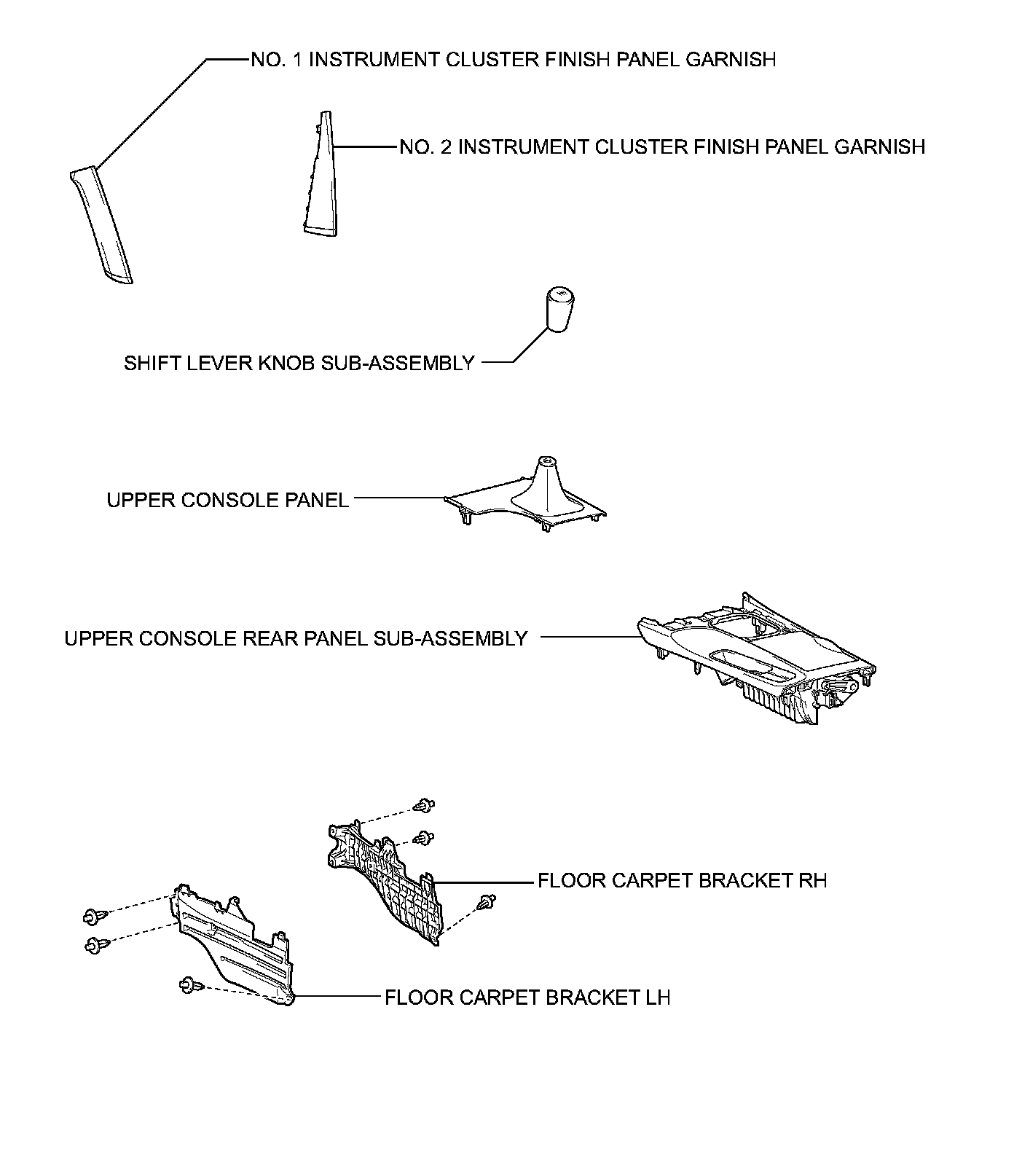

COMPONENTS (Part 1):

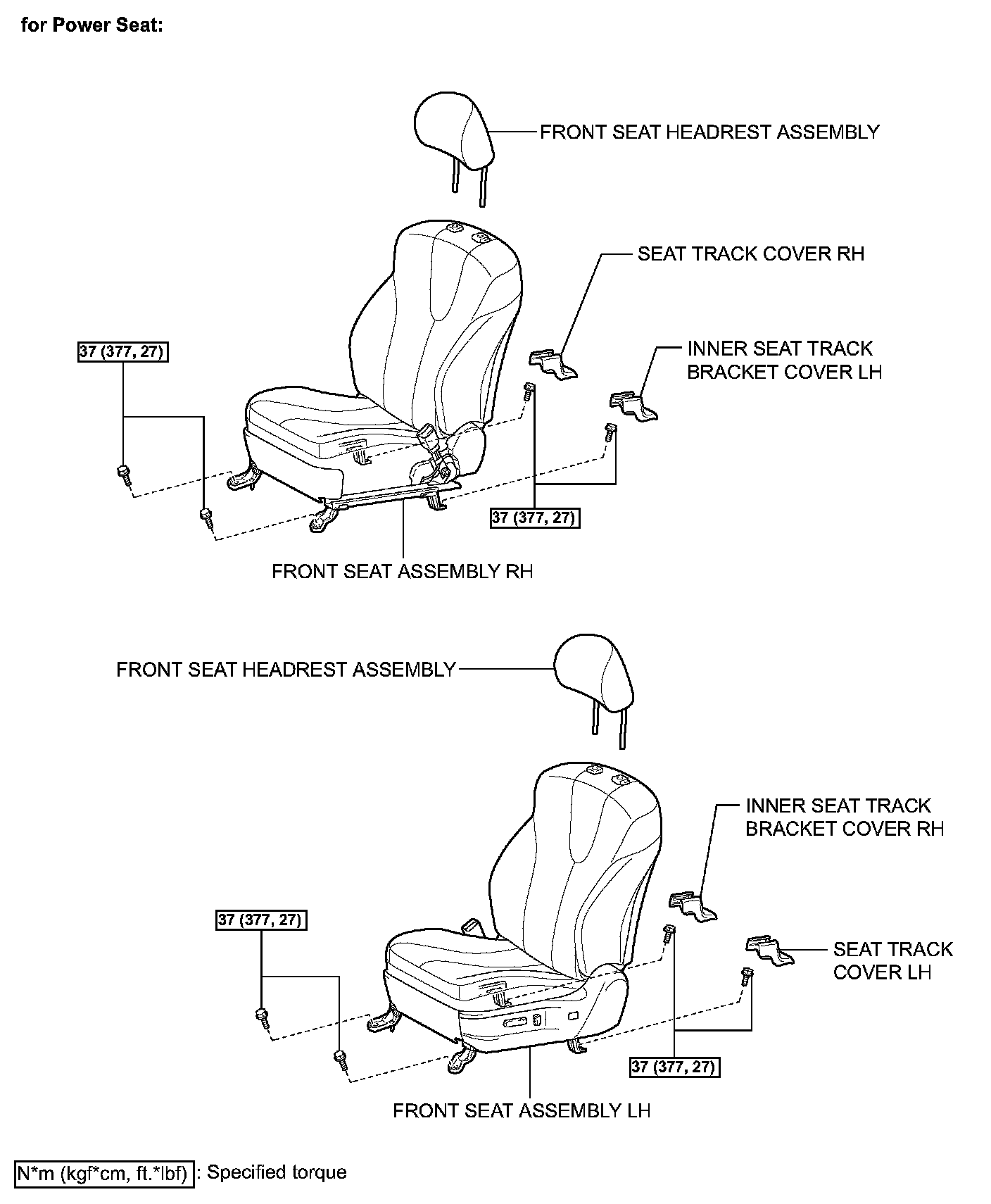

COMPONENTS (Part 2):

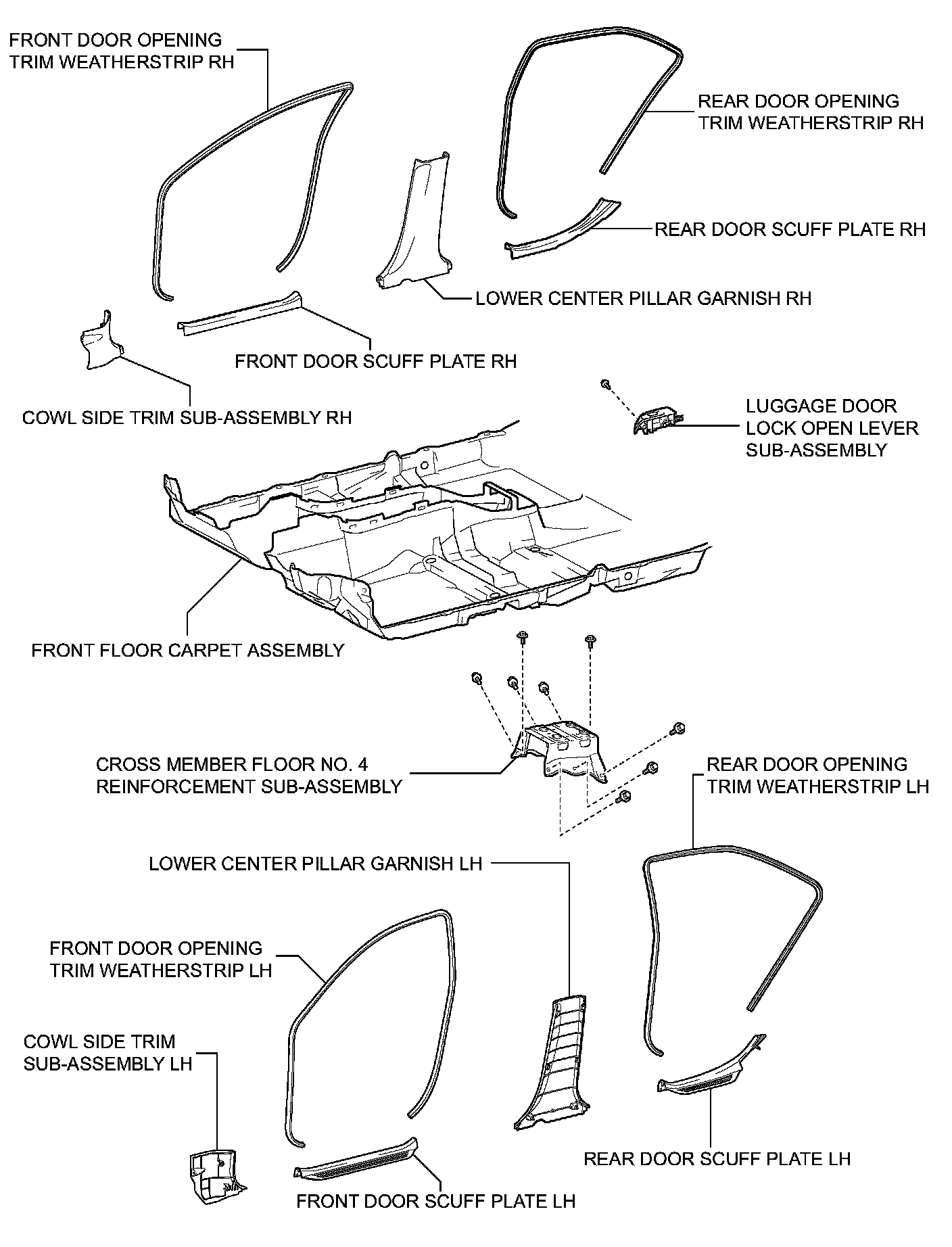

COMPONENTS (Part 3):

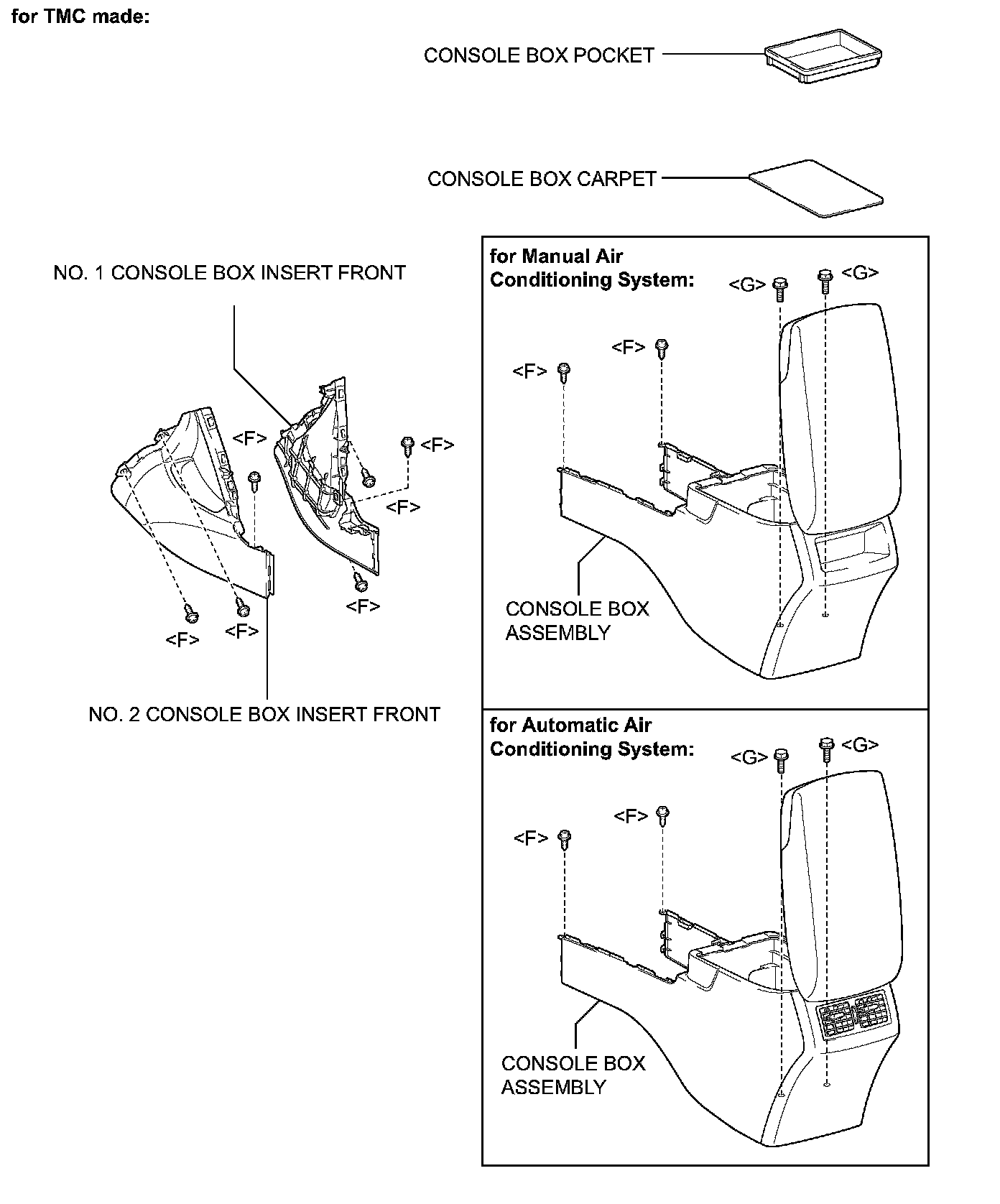

COMPONENTS (Part 4):

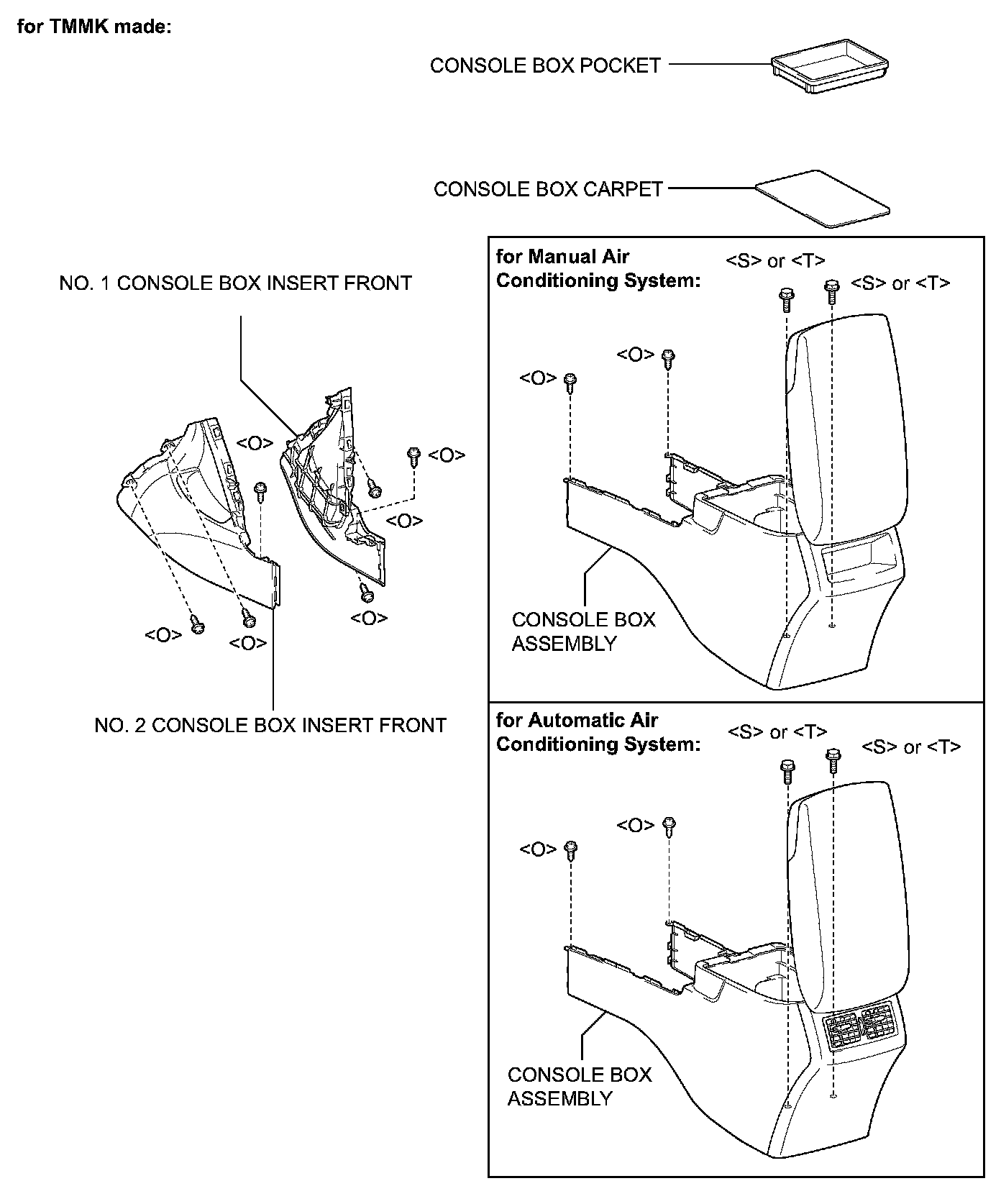

COMPONENTS (Part 5):

COMPONENTS (Part 6):

COMPONENTS (Part 7):

COMPONENTS (Part 8):

COMPONENTS (Part 9):

DISASSEMBLY

1. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

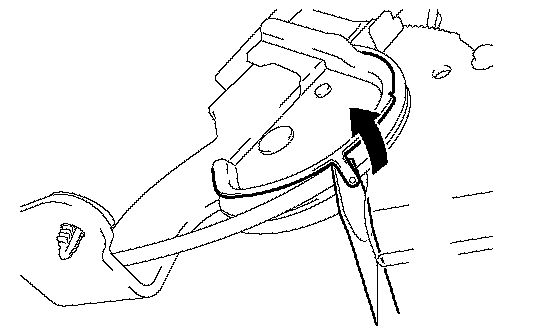

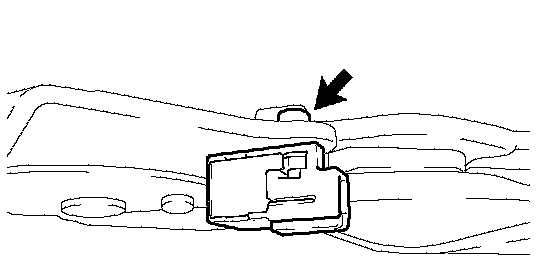

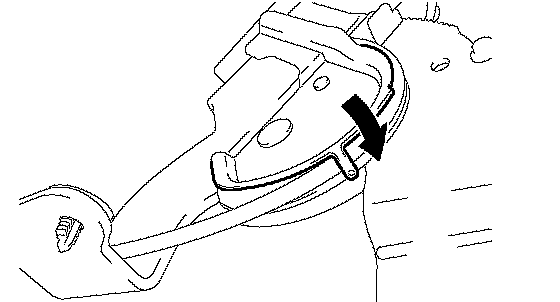

(a) Using a screwdriver, pull up the parking brake lever claw.

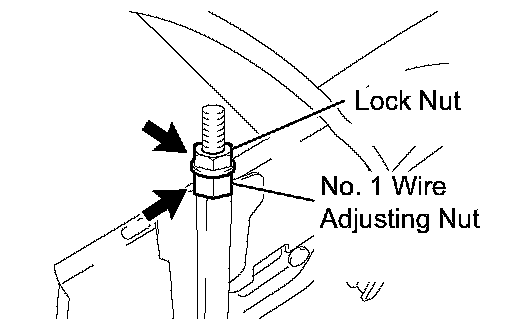

(b) Remove the lock nut, the No. 1 wire adjusting nut, and the No. 1 parking brake cable assembly from the parking brake lever sub-assembly.

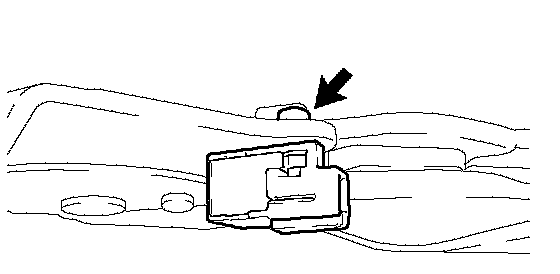

2. REMOVE PARKING BRAKE SWITCH ASSEMBLY
(a) Remove the screw and the parking brake switch assembly.

REASSEMBLY

1. INSTALL PARKING BRAKE SWITCH ASSEMBLY
(a) Install the parking brake switch assembly with the screw.
Torque: 1.0 Nm (10 kgf-cm, 9.0 inch lbs.)
2. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
(a) Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

(b) Temporarily tighten the lock nut and the No. 1 wire adjusting nut.

NOTICE: Fully tighten the lock nut when adjusting the parking brake lever travel.

Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
