Brake Warning Indicator: Service and Repair
REMOVAL1. PRECAUTION
Observe Restraint Systems; Service Precautions.
2. REMOVE FRONT DOOR SCUFF PLATE
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
6. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)
8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)

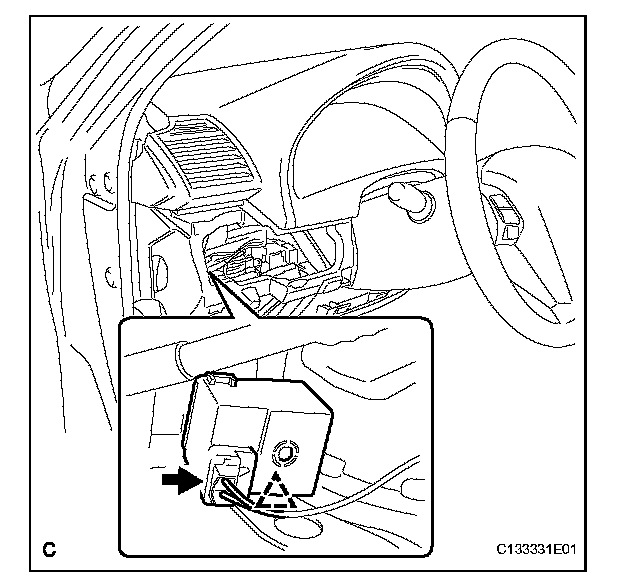

9. REMOVE SKID CONTROL BUZZER
a. Disconnect the skid control buzzer connector.
b. Remove the clip and skid control buzzer assembly.
INSTALLATION
1. INSTALL SKID CONTROL BUZZER
a. Attach the claw and install the skid control buzzer.
b. Connect the skid control buzzer assembly connector.
2. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)
6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)
7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY
8. INSTALL FRONT DOOR SCUFF PLATE
