Brake Warning Light Remains ON

Brake Warning Light Remains ON

DESCRIPTION
The skid control ECU is connected to the combination meter assembly via CAN communication.

If any of the following is detected, the BRAKE warning light remains on:
- The skid control ECU connector is disconnected from the skid control ECU.
- The brake fluid level is insufficient.
- The parking brake is applied.
- EBD operation is not possible.

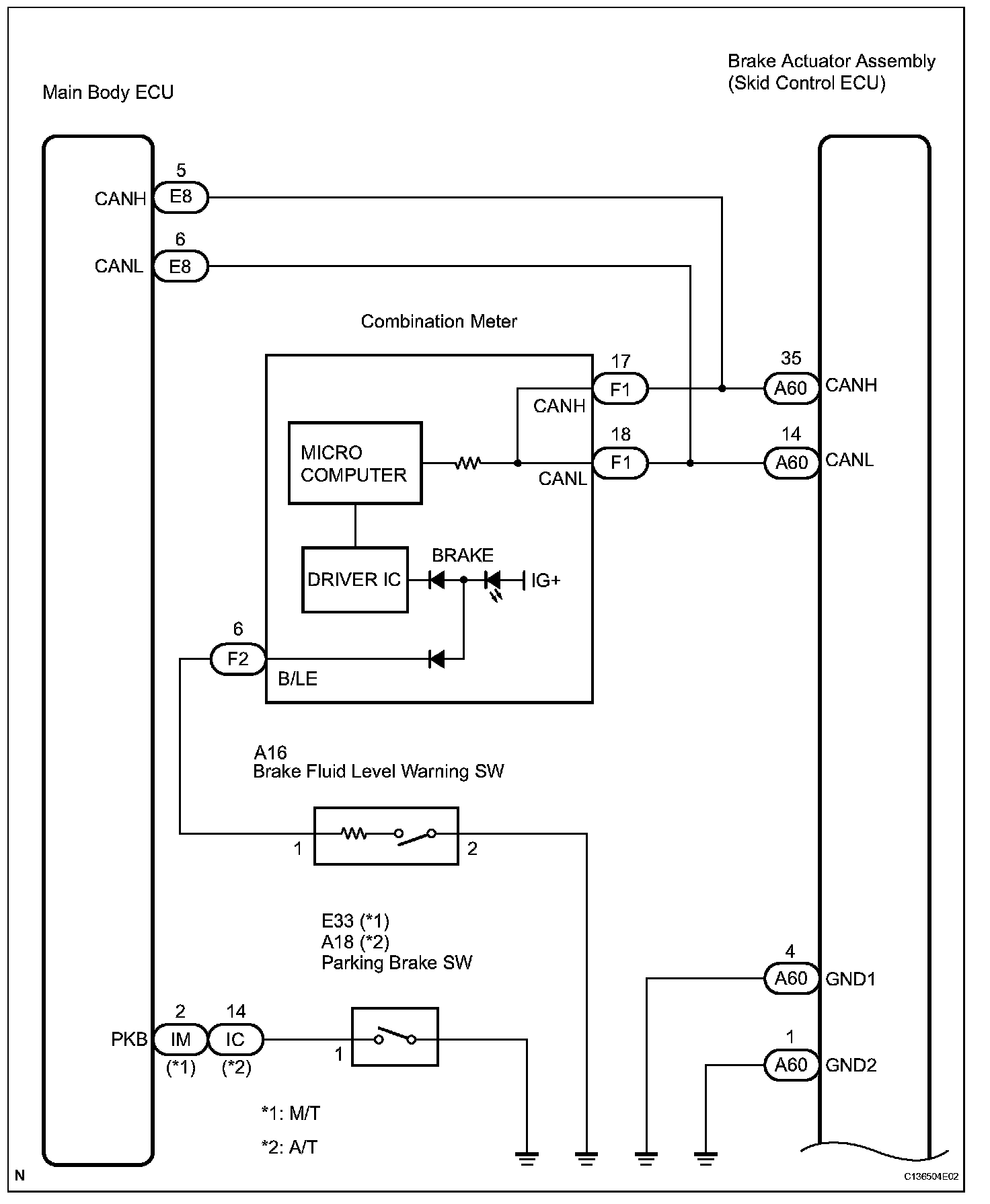

Wiring Diagram:

Wiring Diagram:

Step 1:

Step 1(continued)-4:

Step 5-6:

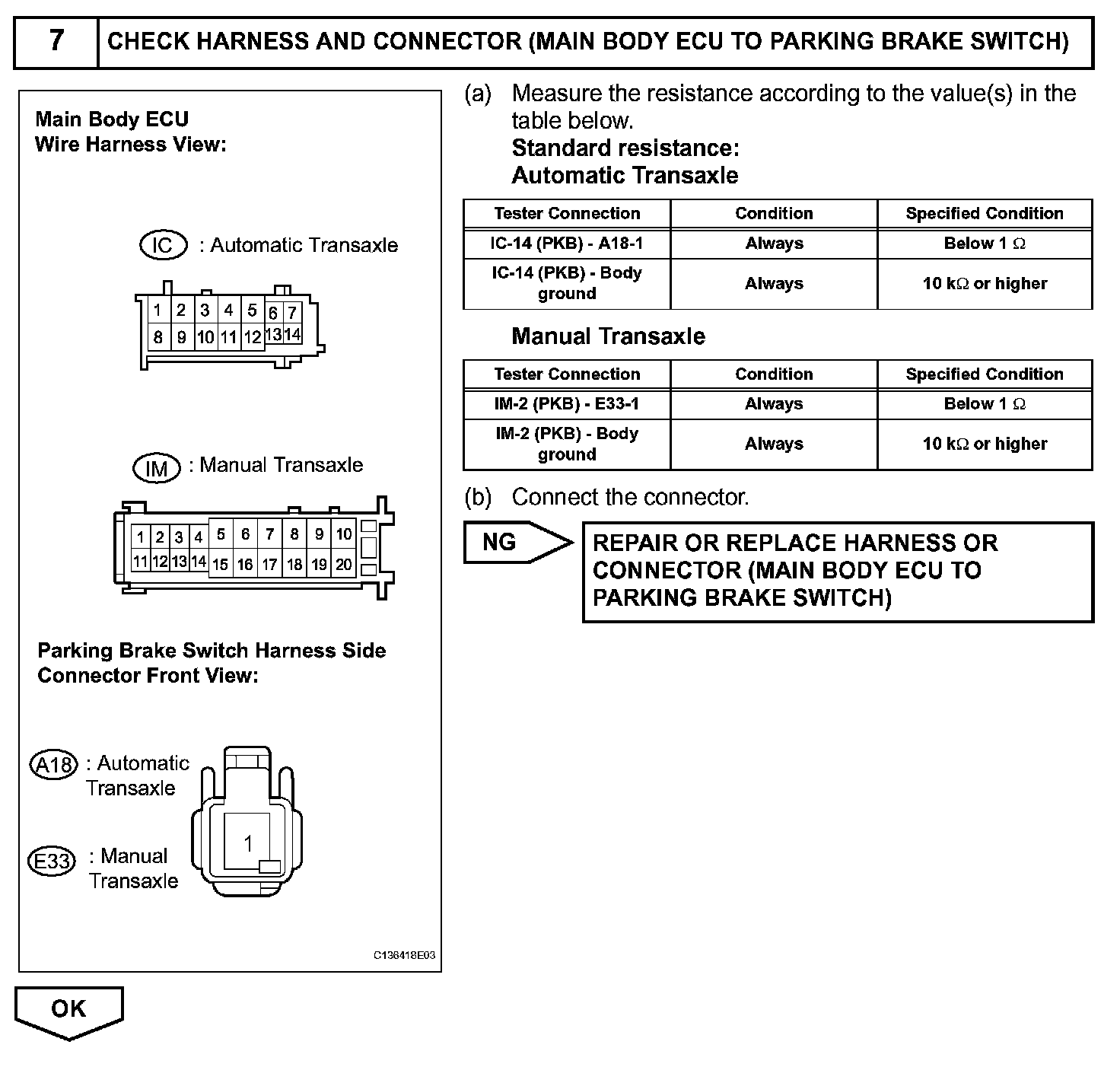

Step 7:

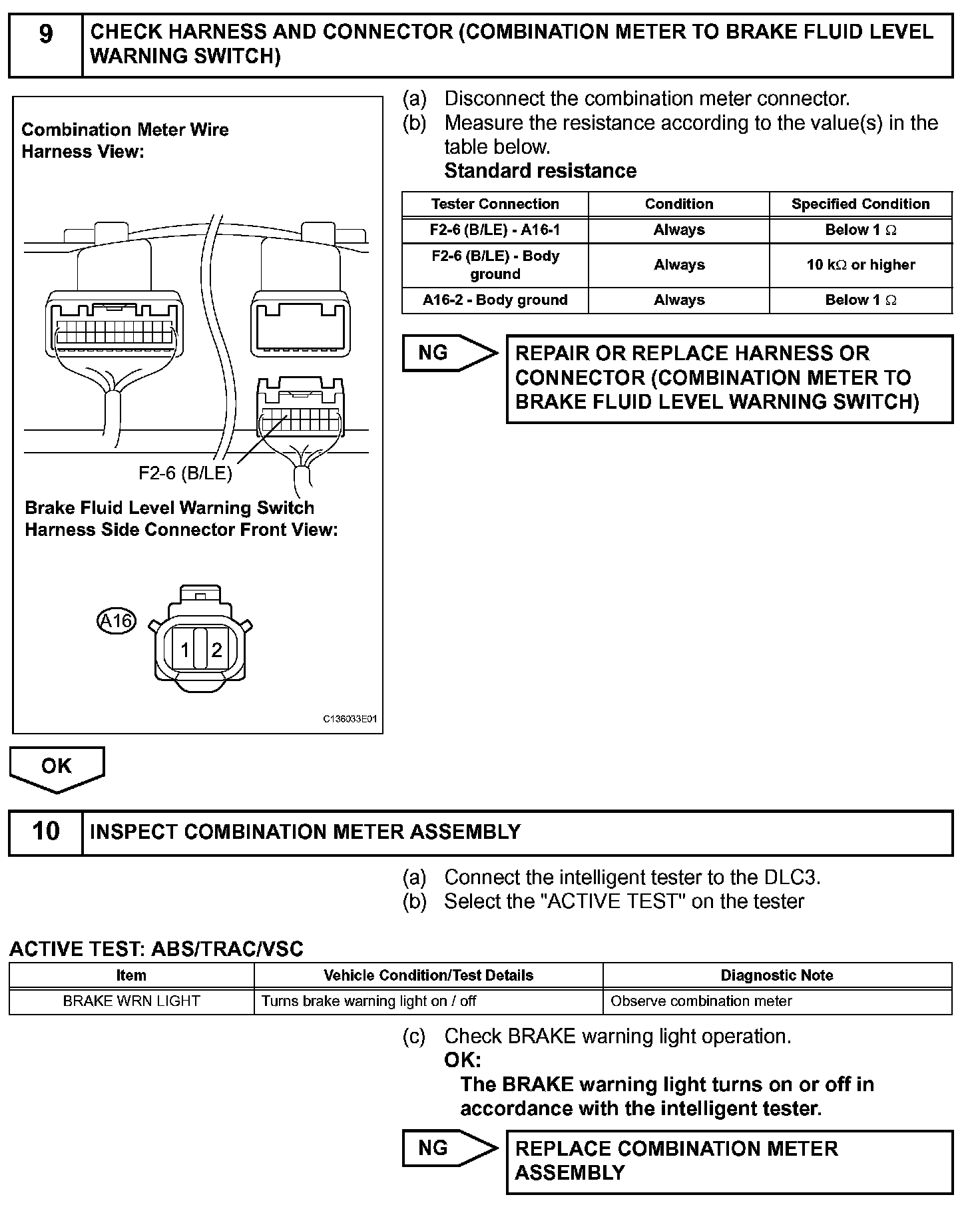

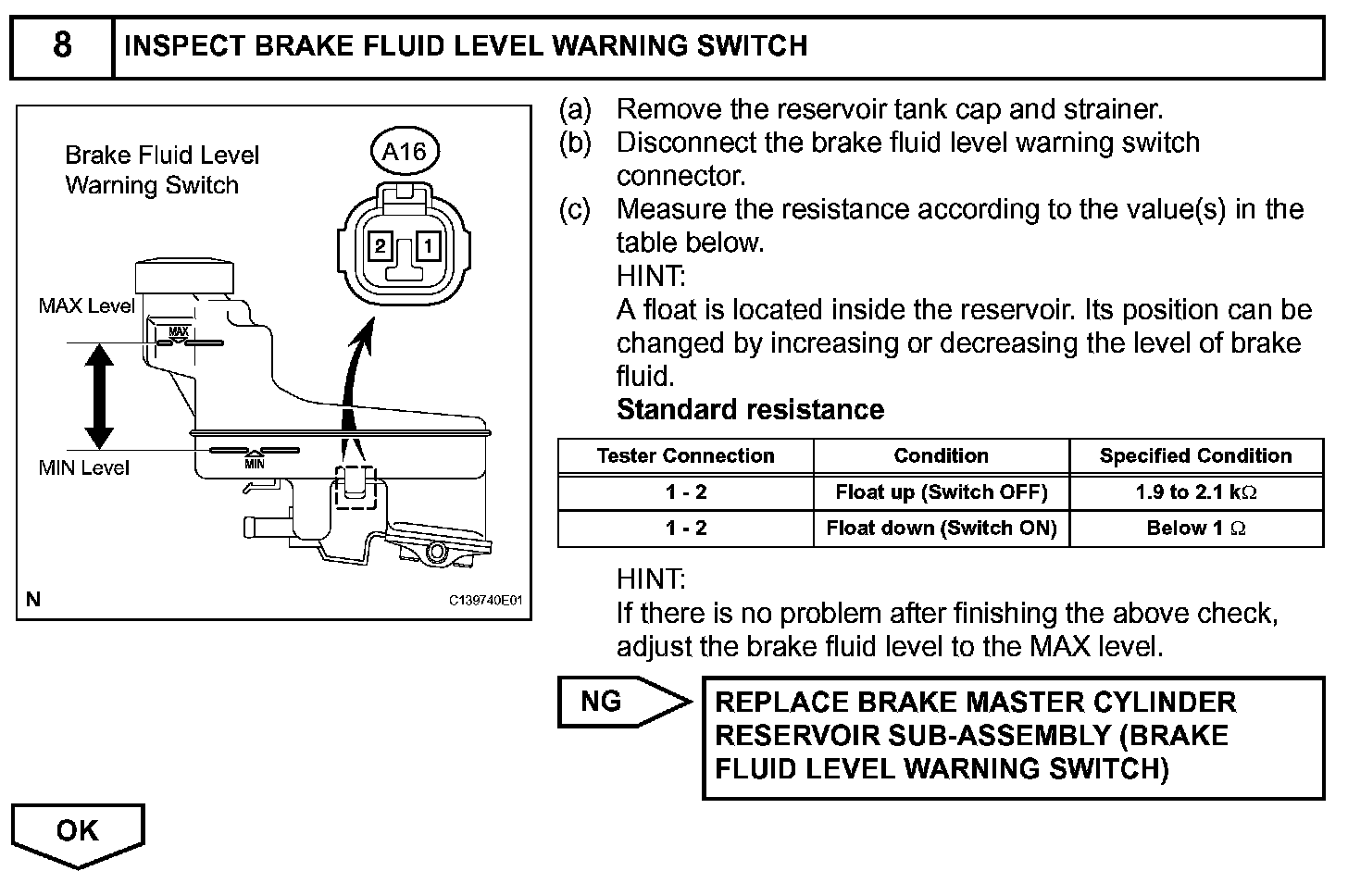

Step 8:

Step 9-10:

Step 10(continued):

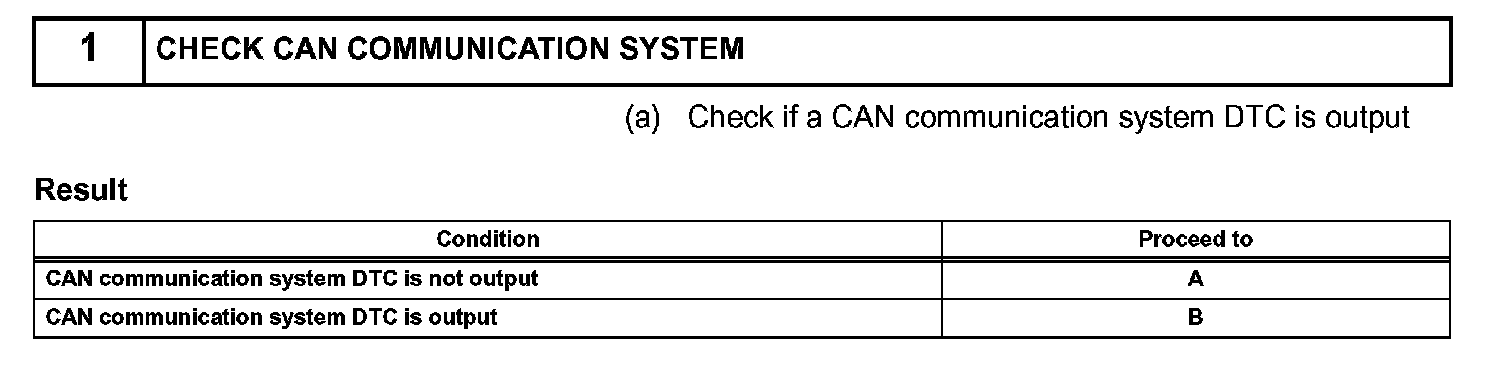

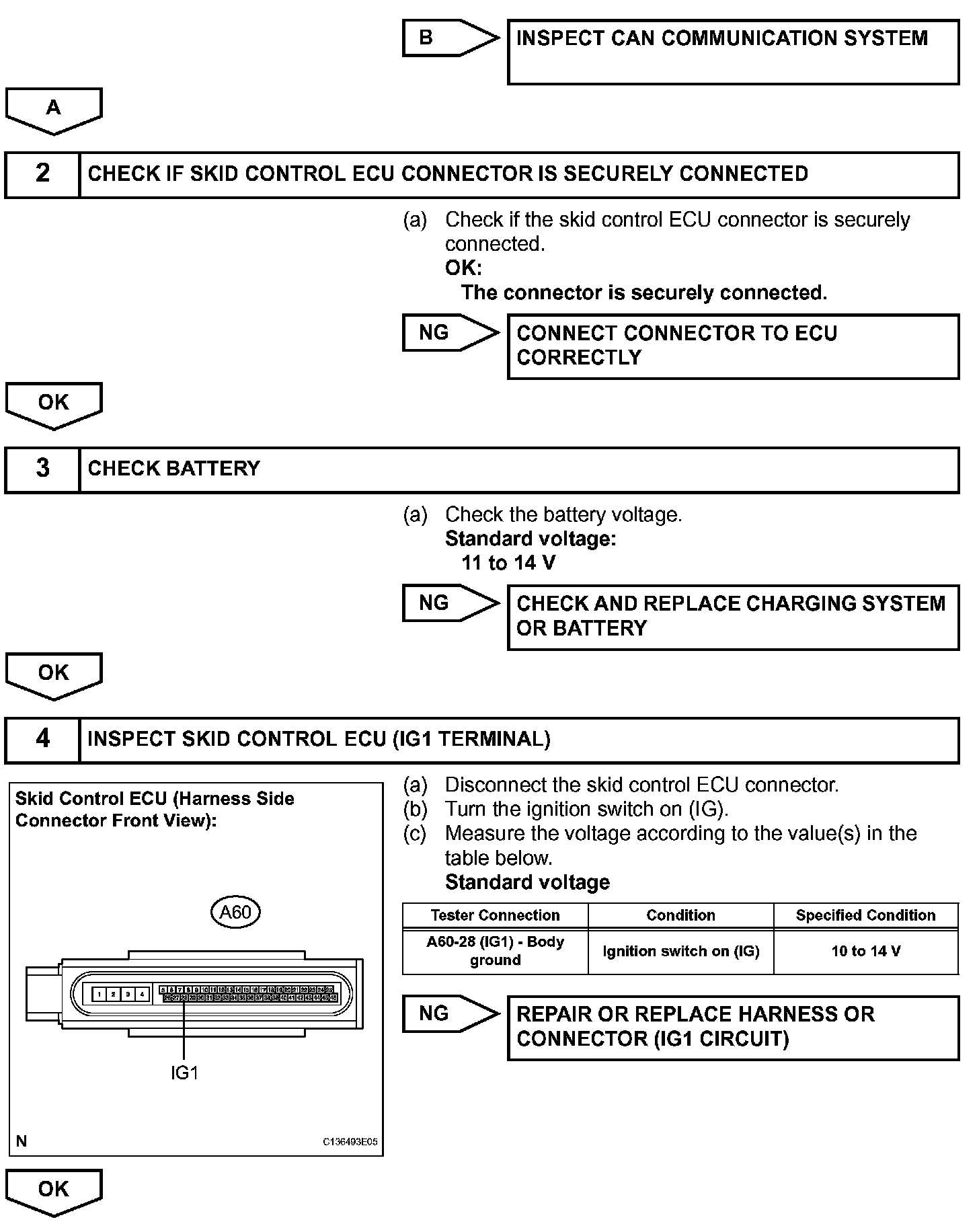

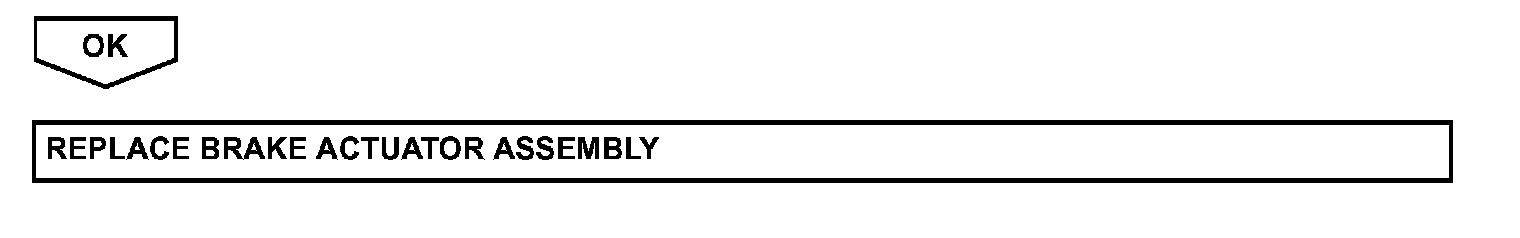

INSPECTION PROCEDURE

HINT: Check the condition of each related circuit connector before troubleshooting.
