Brake Warning Light Does Not Come ON

Brake Warning Light Does Not Come ON

DESCRIPTION
The skid control ECU is connected to the combination meter assembly via CAN communication.

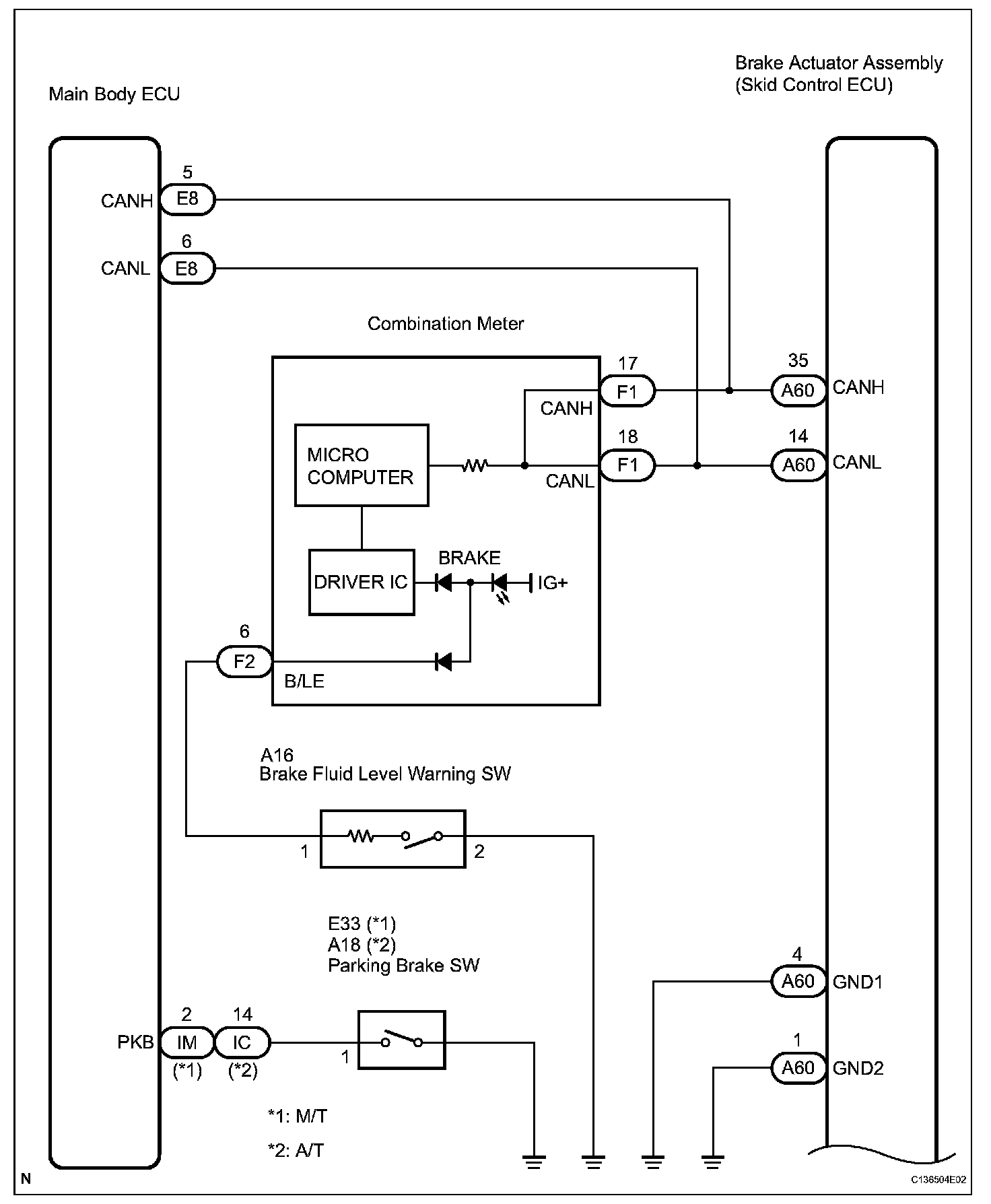

Wiring Diagram:

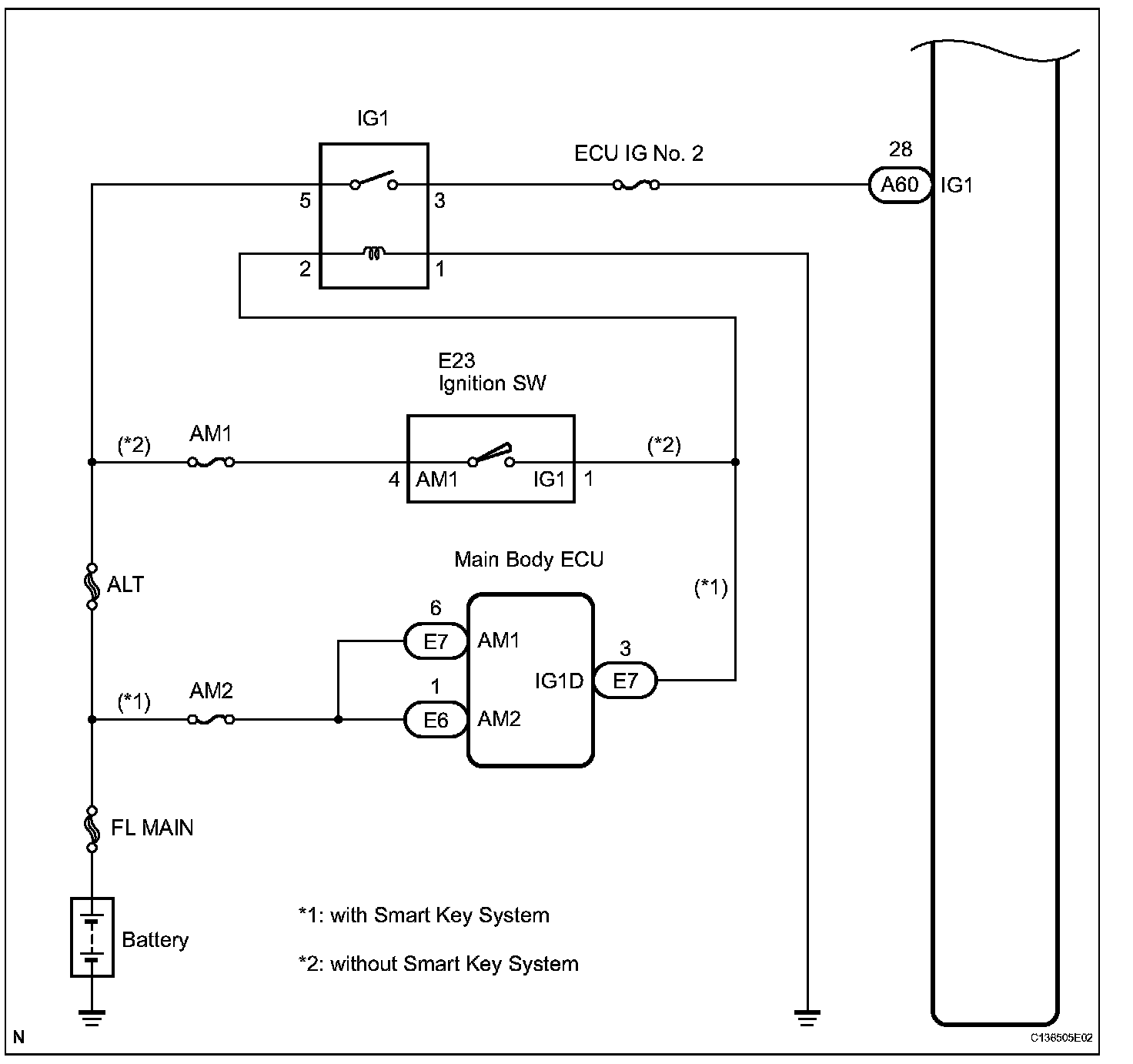

Wiring Diagram:

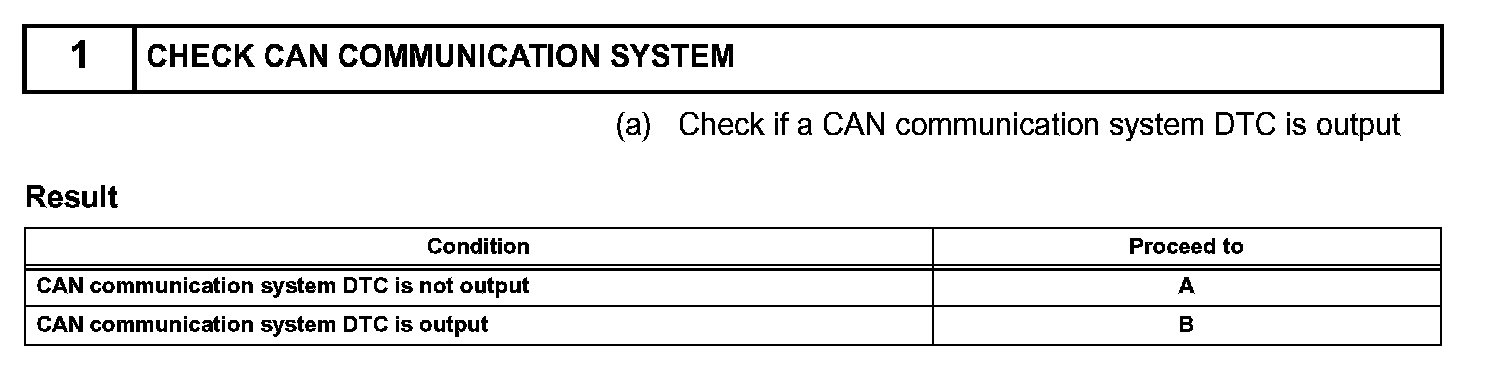

Step 1:

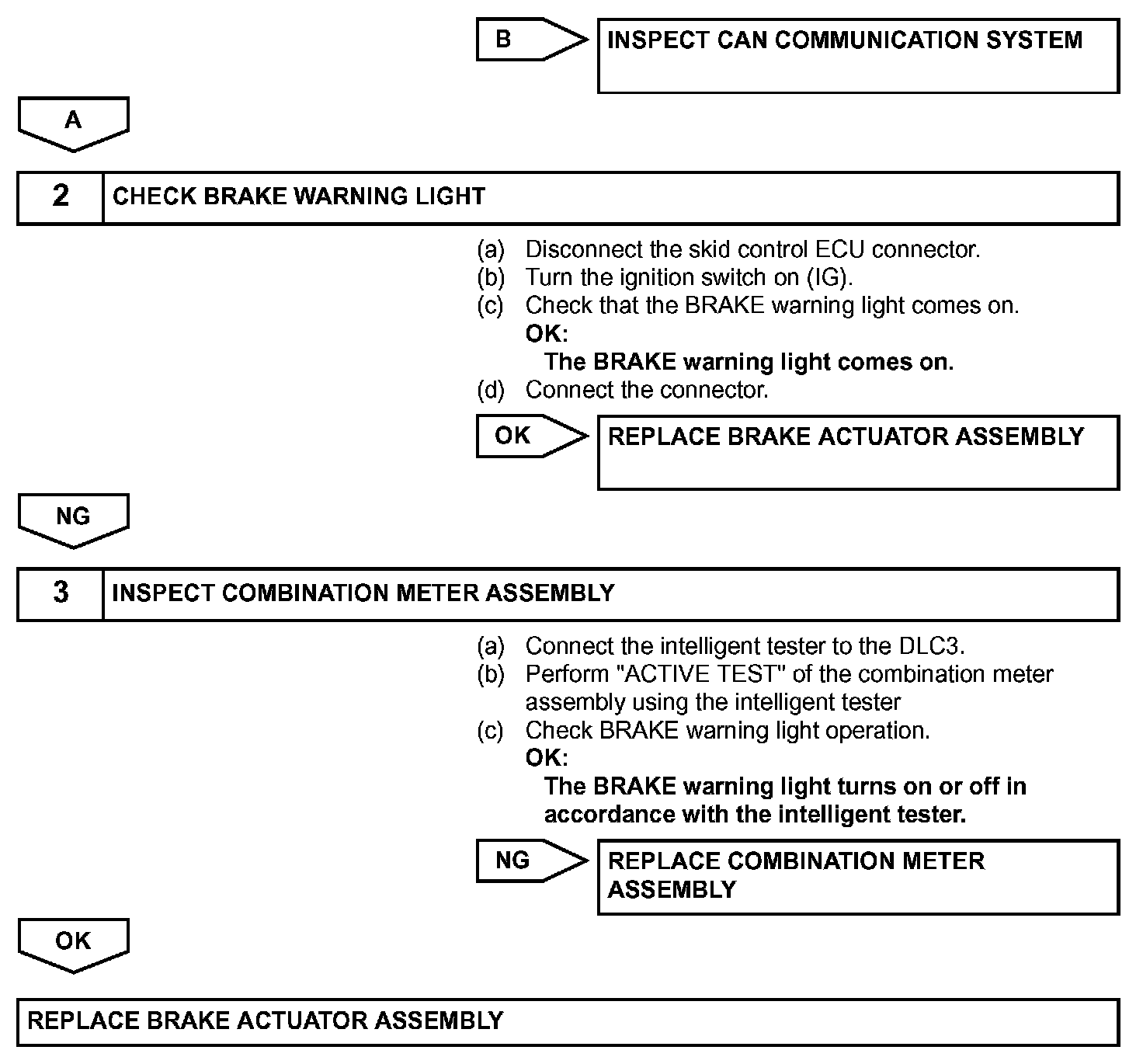

Step 1(continued)-3:




INSPECTION PROCEDURE

HINT: Check the condition of each related circuit connector before troubleshooting.
