Brake Warning Light Remains ON

Brake Warning Light Remains ON

DESCRIPTION
The skid control ECU sends the indicator signals to the combination meter assembly via the CAN communication system.

If any of the following is detected, the brake warning light remains on:
- The skid control ECU connector is disconnected from the skid control ECU.
- The brake fluid level is insufficient.
- The parking brake is applied.
- EBD operation is not possible.

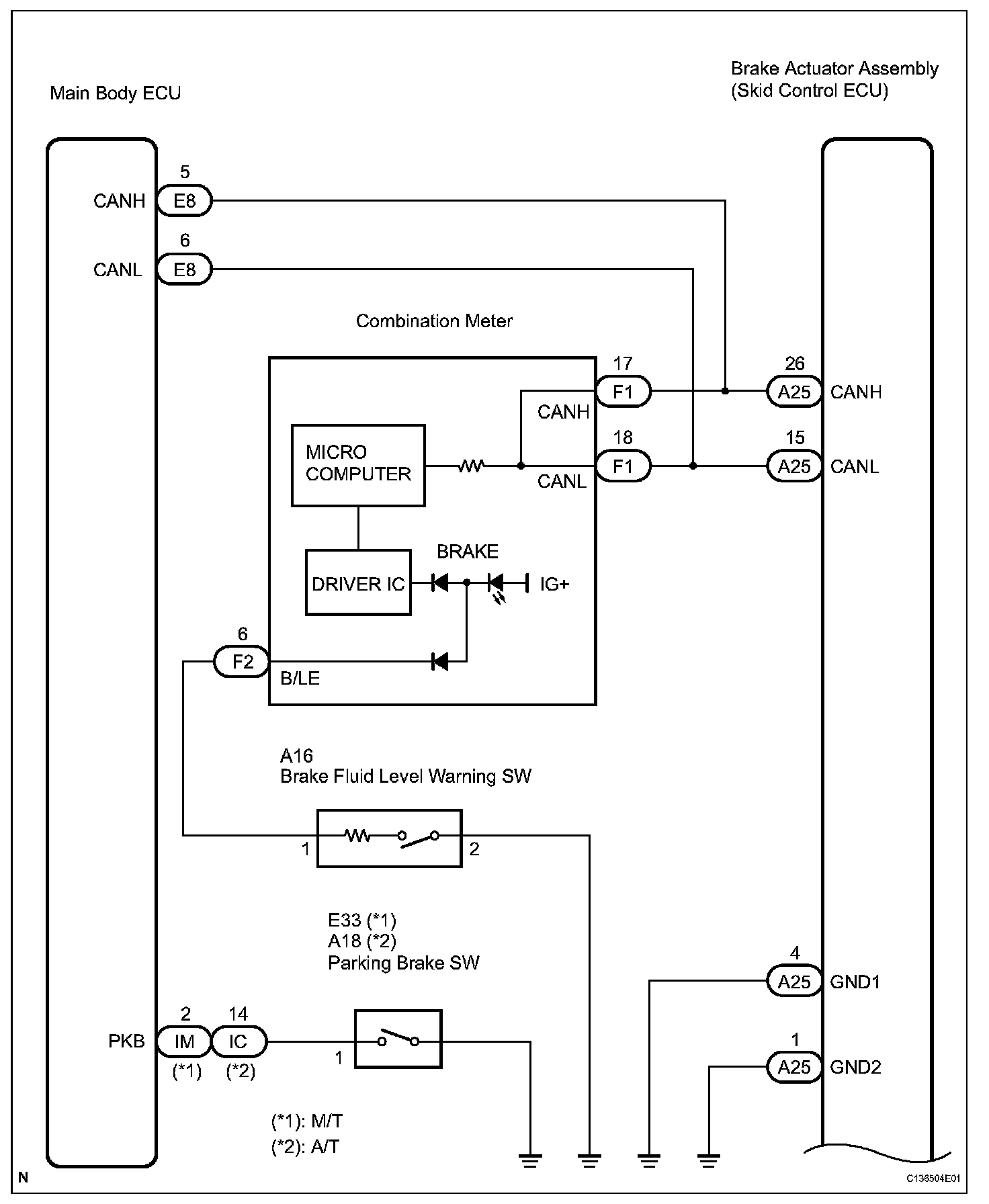

Wiring Diagram:

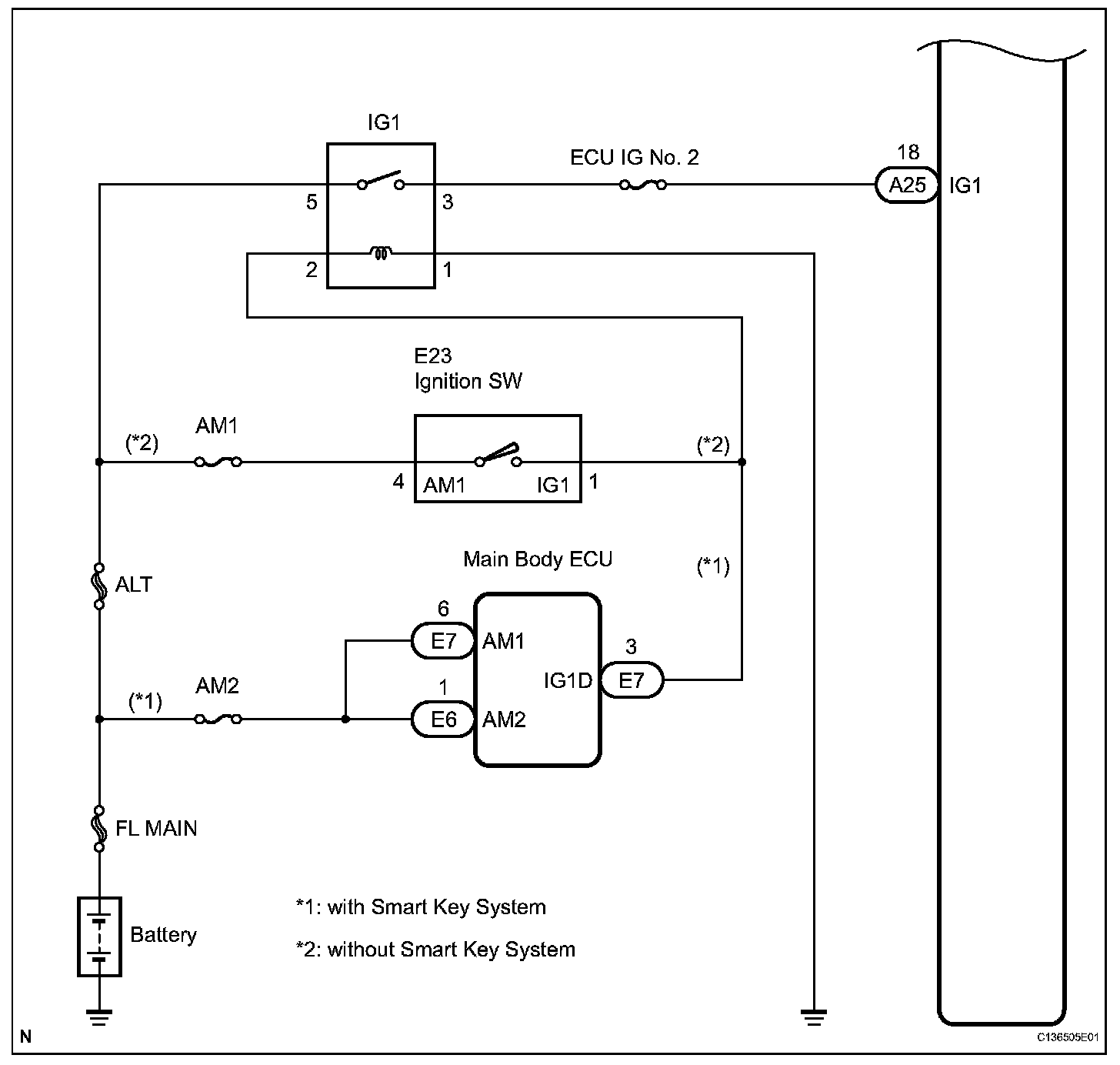

Wiring Diagram:

Step 1:

Step 1(continued)-4:

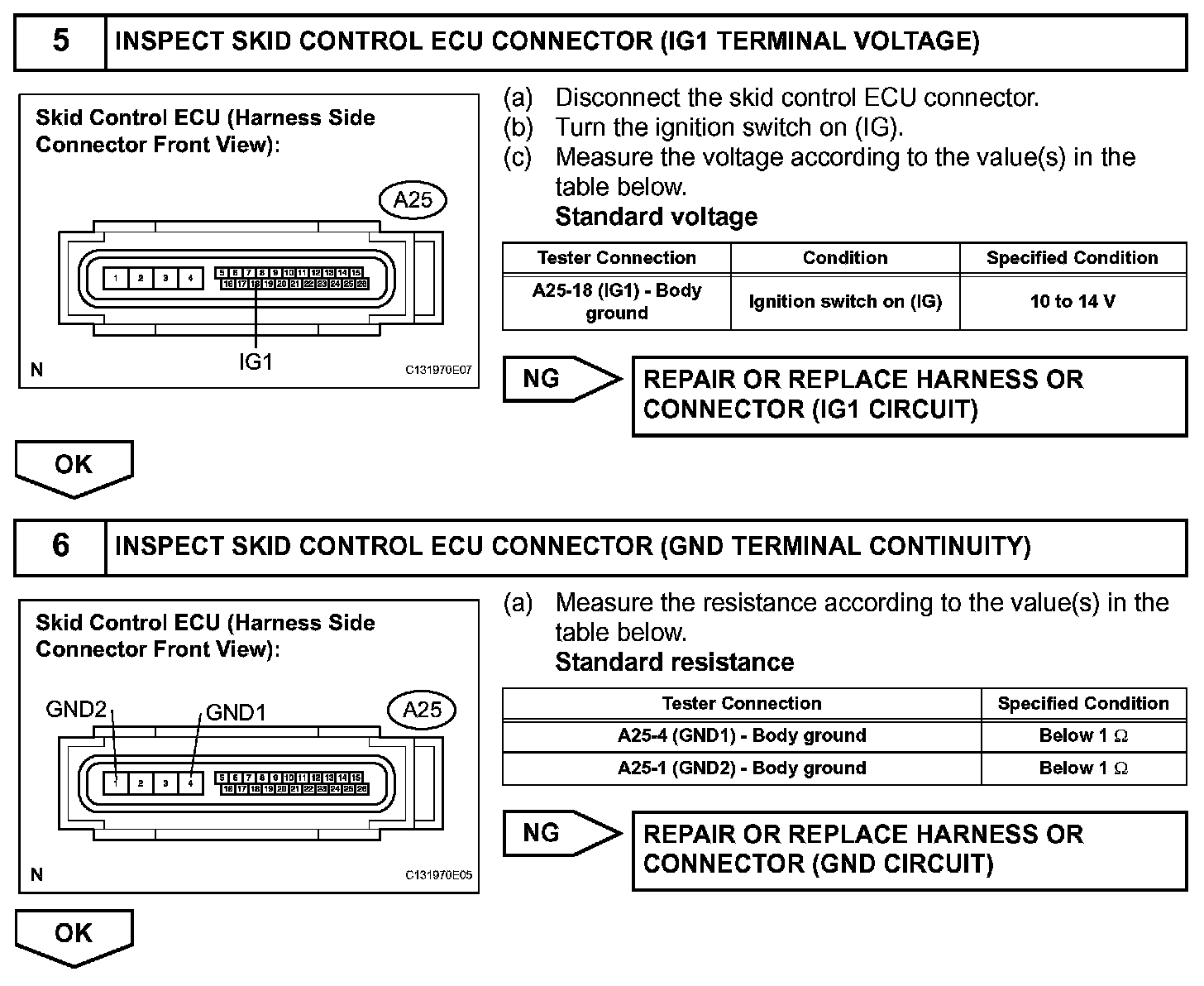

Step 5-6:

Step 7:

Step 8:

Step 9:

Step 10-11:

Step 11(continued):

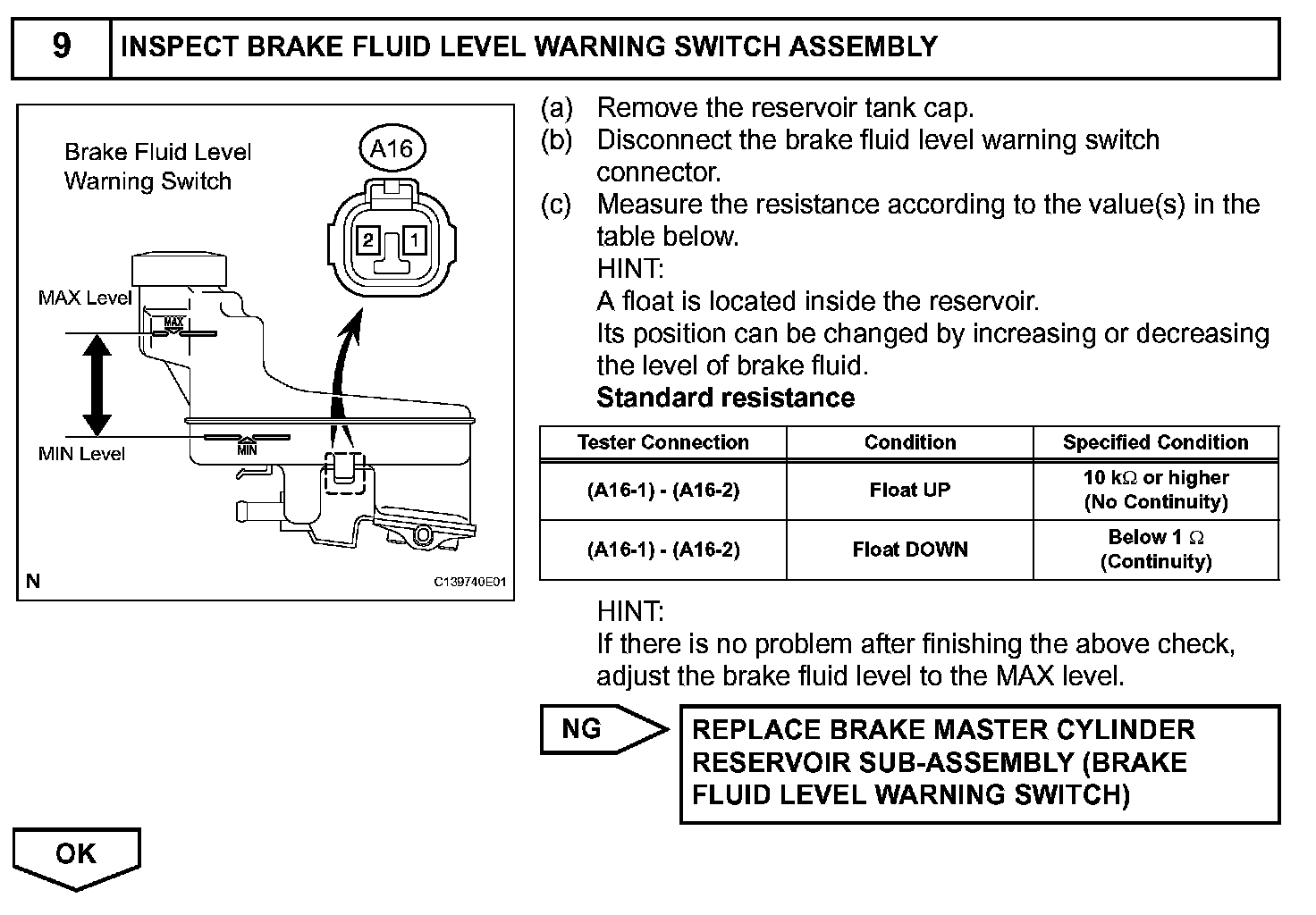

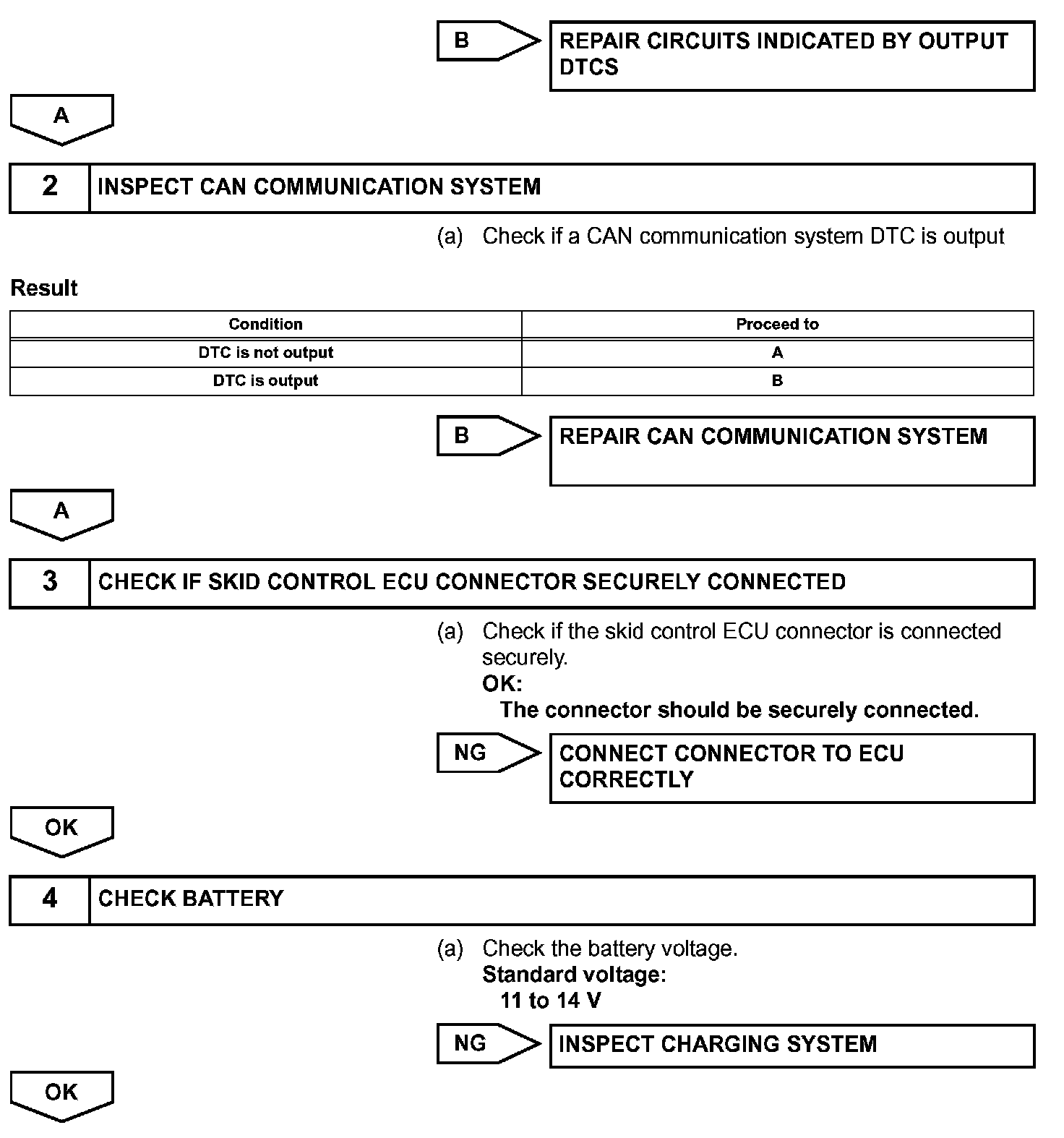

INSPECTION PROCEDURE

HINT: Check the condition of each related circuit connector before troubleshooting.
