Brake Warning Light Does Not Come ON

Brake Warning Light does not Come ON

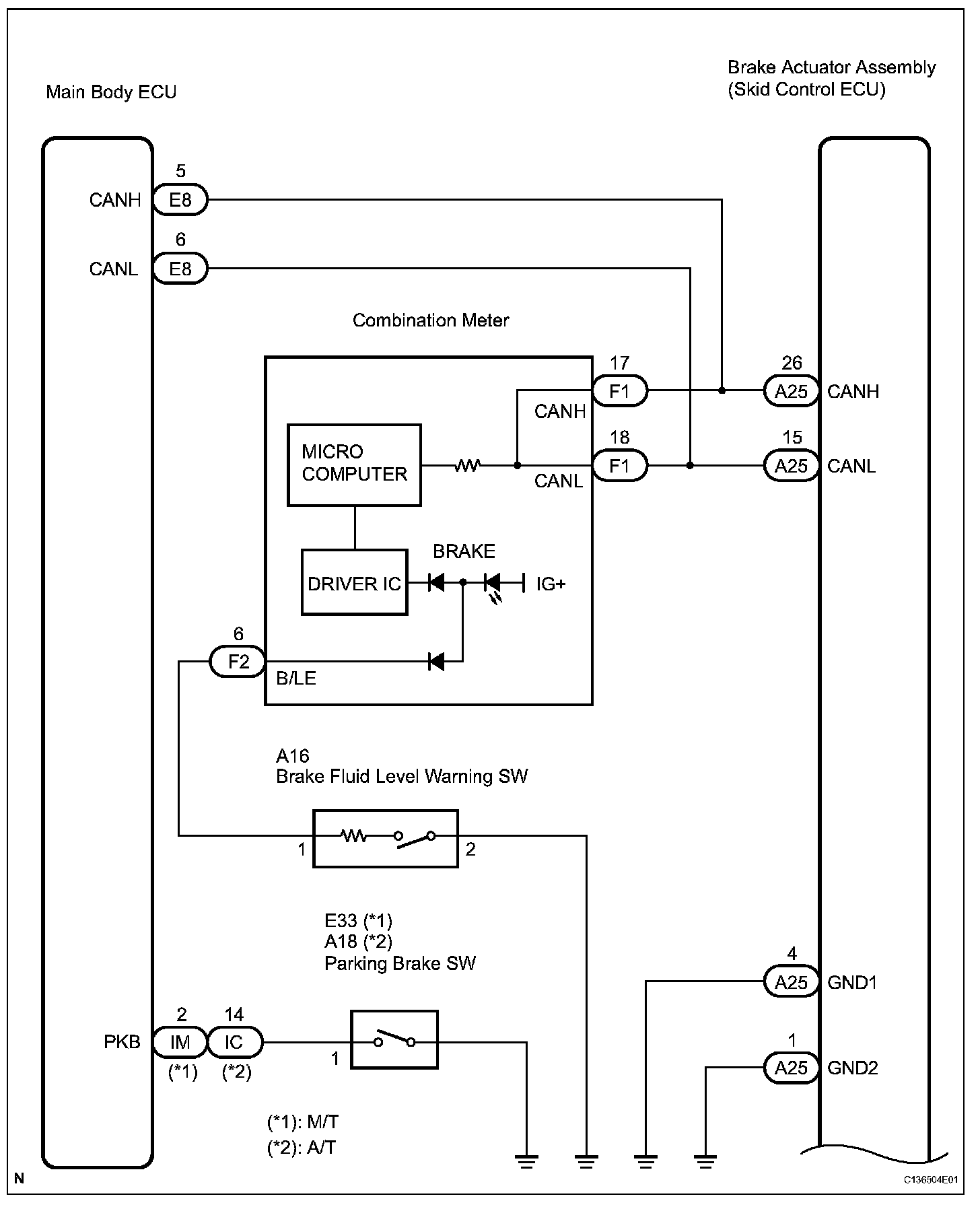

Wiring Diagram:

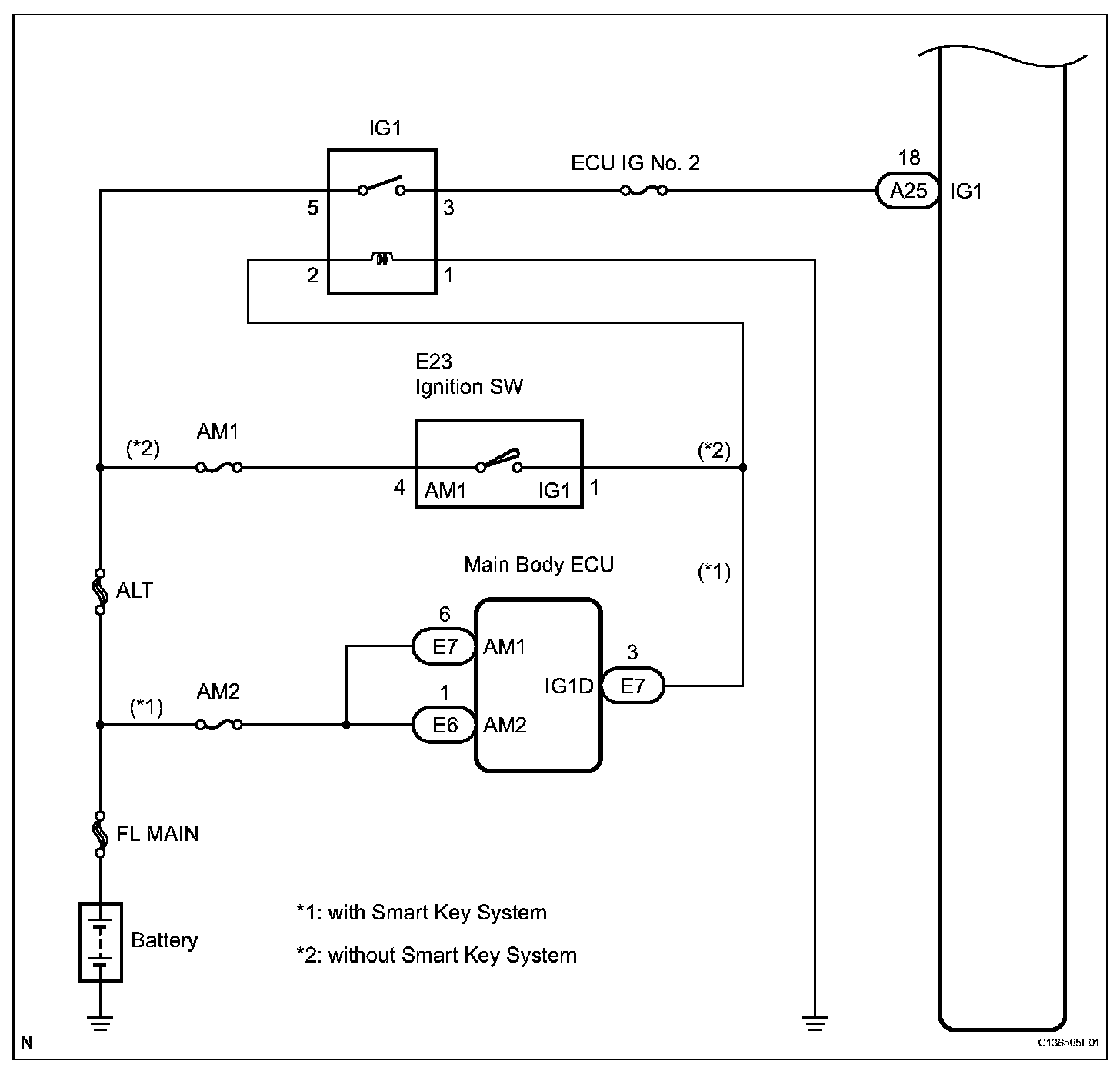

Wiring Diagram:

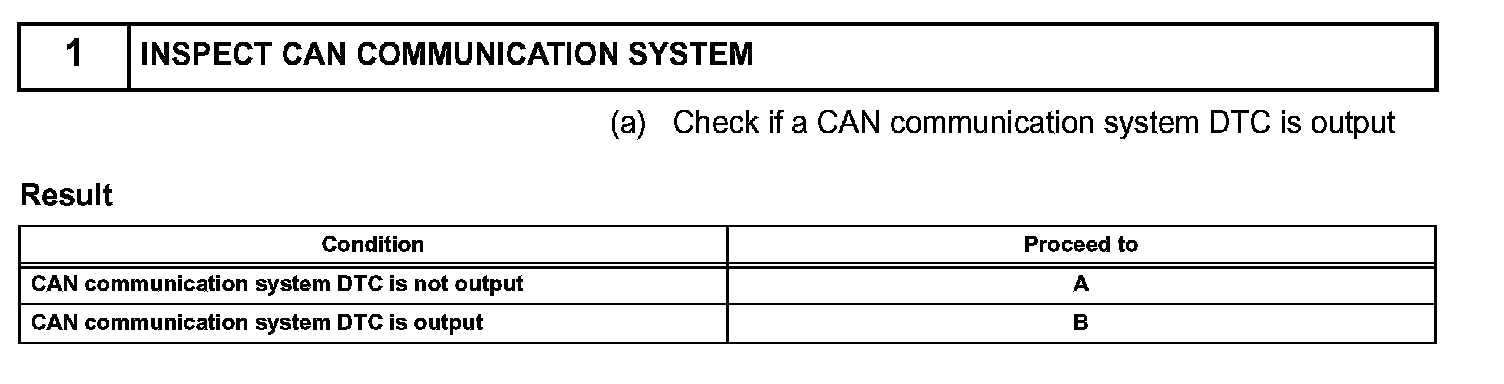

Step 1:

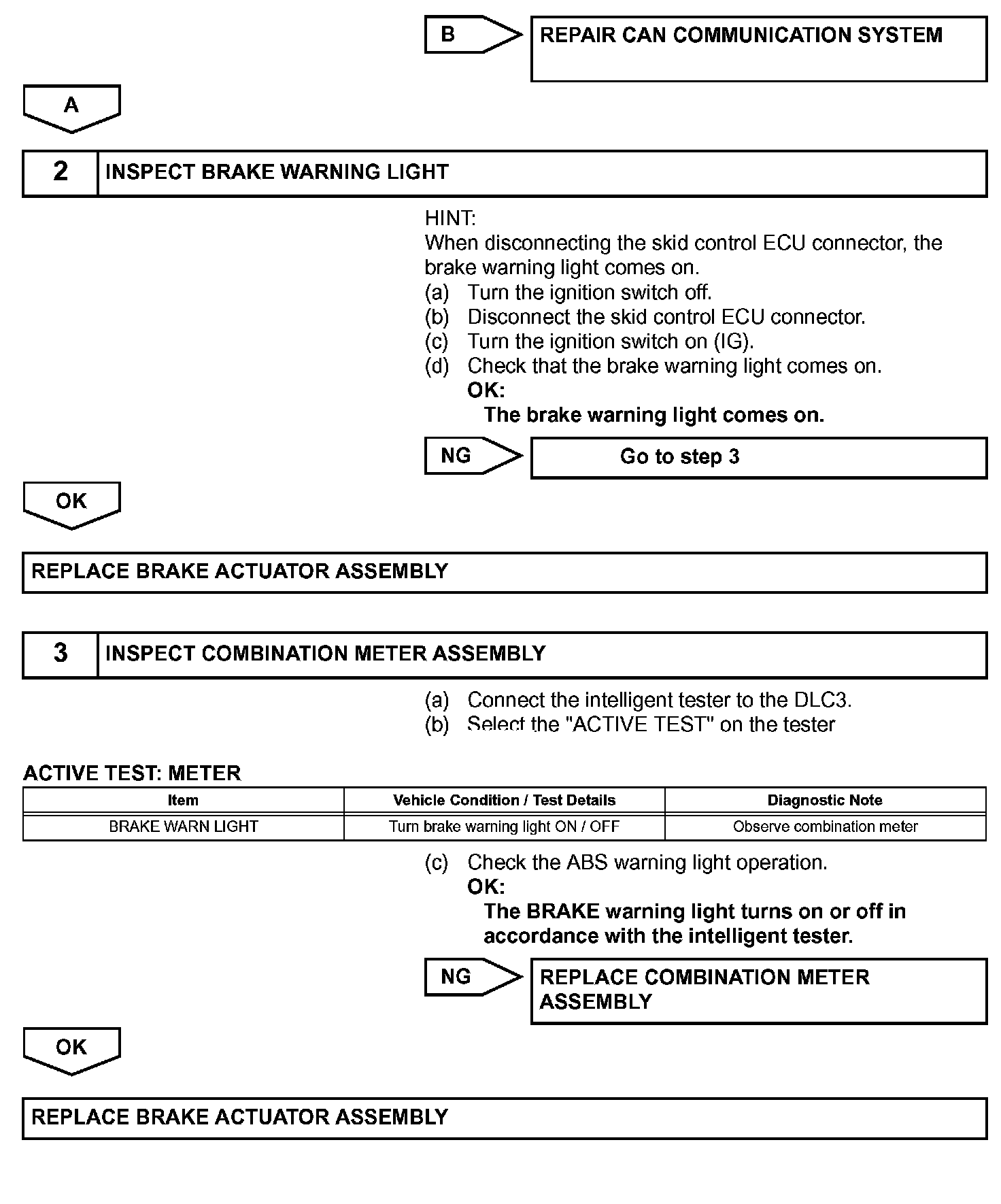

Step 1(continued)-3:




INSPECTION PROCEDURE

HINT: Check the condition of each related circuit connector before troubleshooting.
