ABS Warning Light does not Come ON

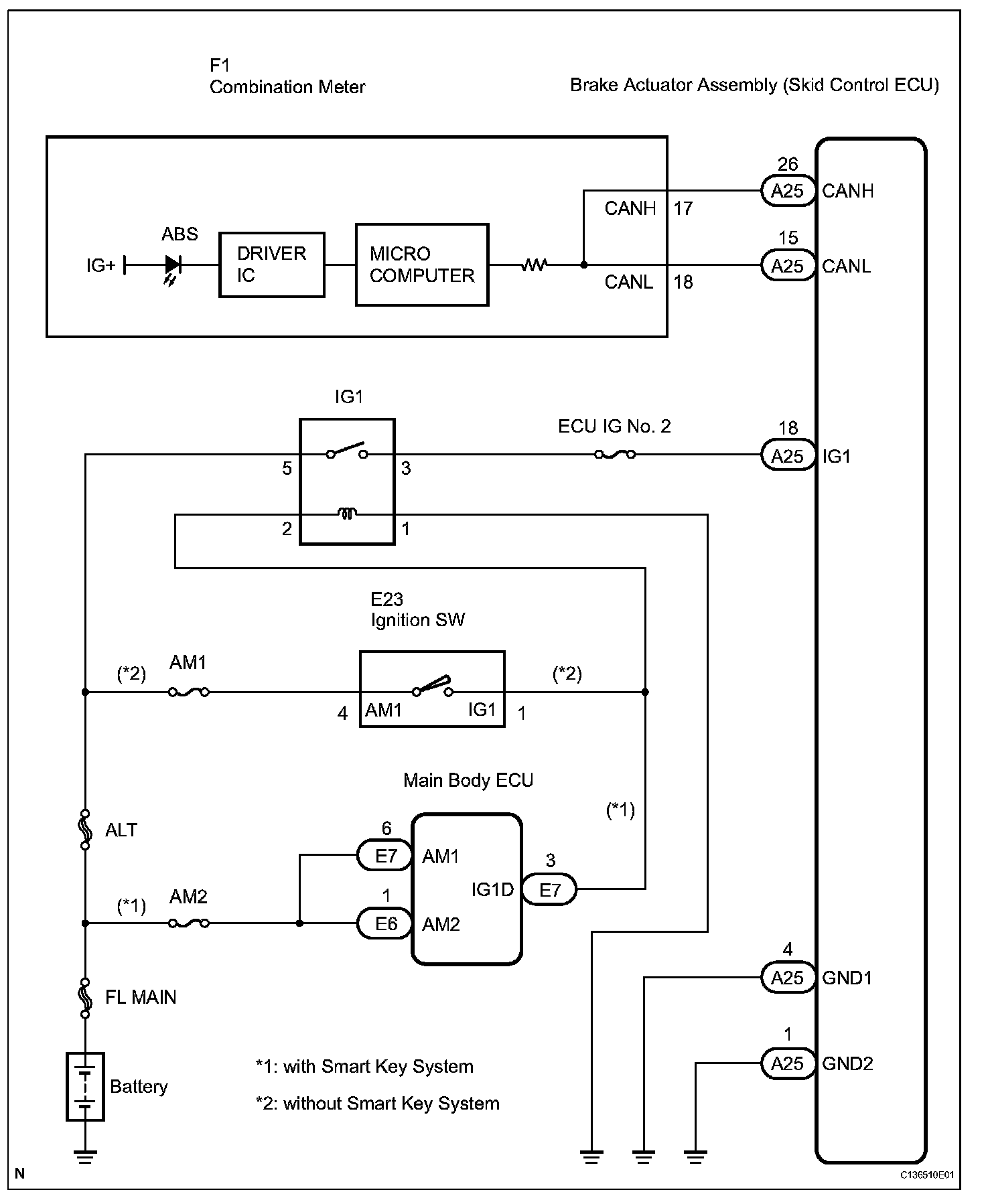

Wiring Diagram:

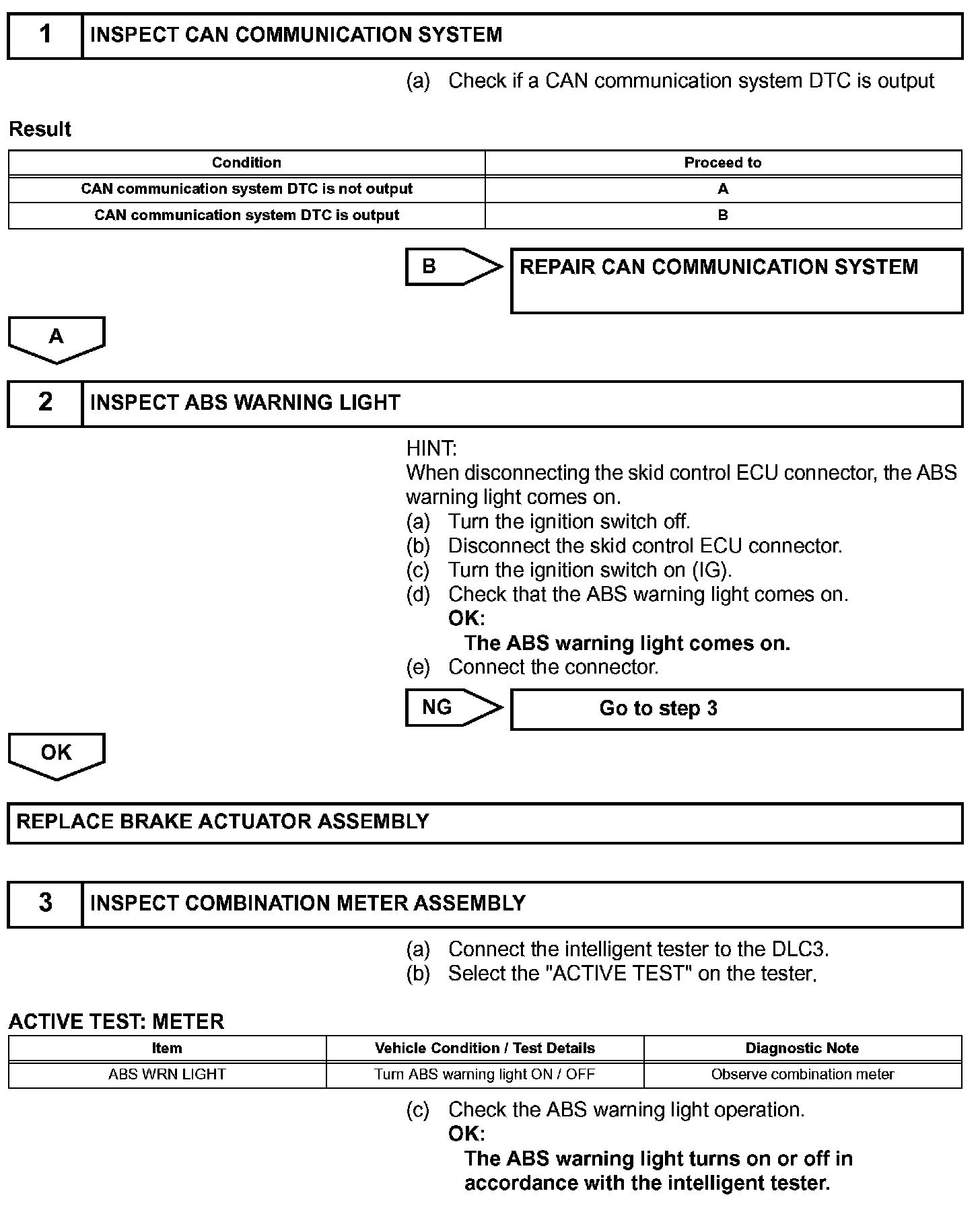

Step 1-3:

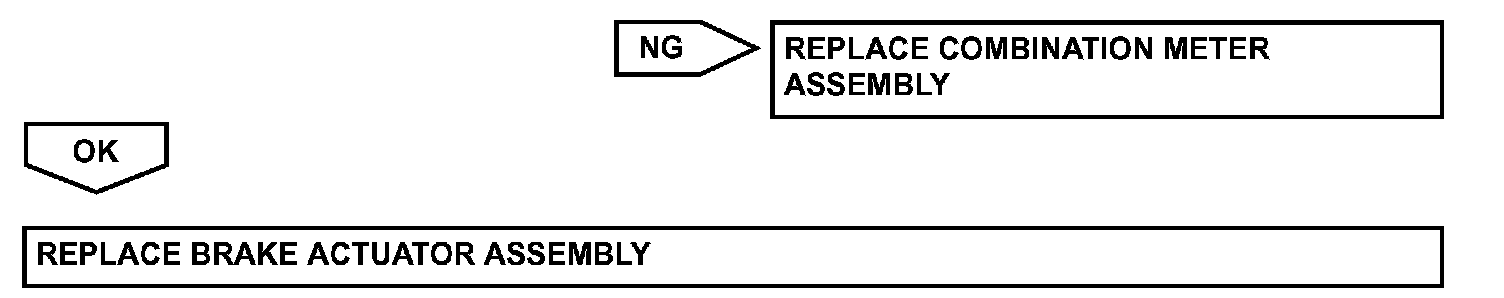

Step 3(continued):
INSPECTION PROCEDURE
HINT:
Check the condition of each related circuit connector before troubleshooting.
