Disassembly & Reassembly

DISASSEMBLY

REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

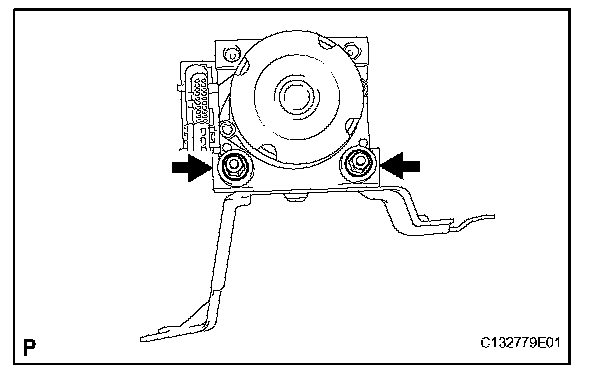

Remove the 2 nuts and the brake actuator assembly from the actuator bracket assembly.

REASSEMBLY

INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY

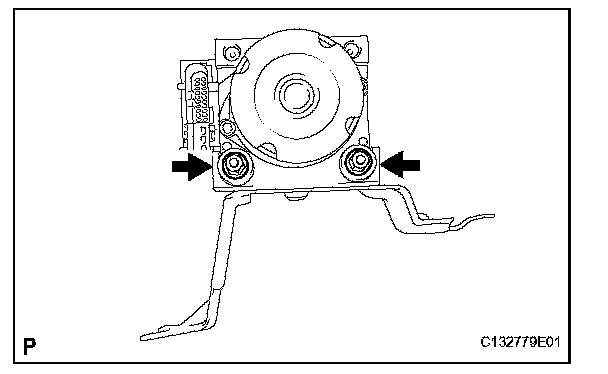

Install the actuator assembly to the actuator bracket assembly with the 2 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

NOTE: Do not remove the hole plug before installing a new brake actuator because the brake actuator assembly is filled with brake fluid.
