Disassembly & Reassembly

DISASSEMBLY

REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

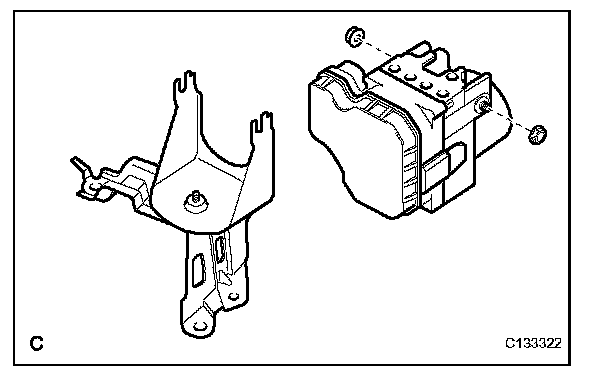

Remove the 2 nuts and the brake actuator assembly from the actuator bracket assembly.

REASSEMBLY

INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY




Install the actuator assembly to the brake actuator bracket assembly with the 2 nuts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

NOTE: Do not remove the hole plug before installing a new brake actuator because the brake actuator assembly is filled with brake fluid.
