Overhaul

DISASSEMBLY

1. REMOVE REAR LOWER SPOILER (w/ Rear Lower Spoiler)
a. Remove the 2 screws, 4 nuts and 16 clips.






b. Disengage the 16 claws and remove the rear lower spoiler.

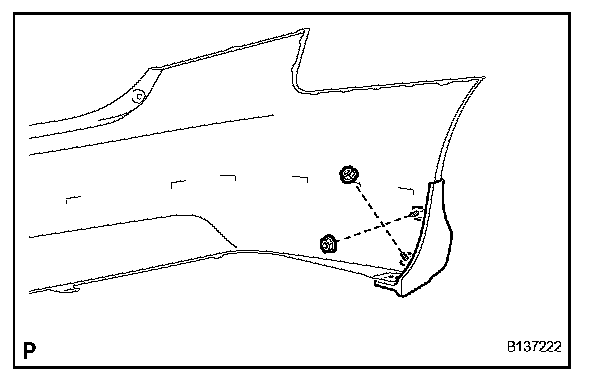

2. REMOVE REAR BUMPER EXTENSION LH (w/ Rear Lower Spoiler)






a. Remove the 2 nuts and rear bumper extension LH.

3. REMOVE REAR BUMPER EXTENSION RH (w/ Rear Lower Spoiler)
4. REMOVE REAR BUMPER PLATE LH
5. REMOVE REAR BUMPER PLATE RH

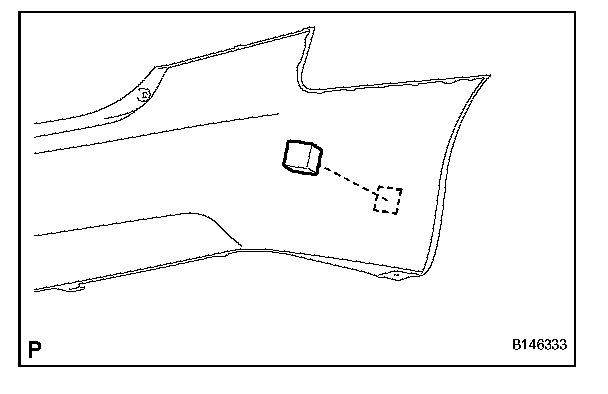

6. REMOVE REAR BUMPER PAD






a. Remove the rear bumper pad.

HINT: Use the same procedures for the RH side and LH side.

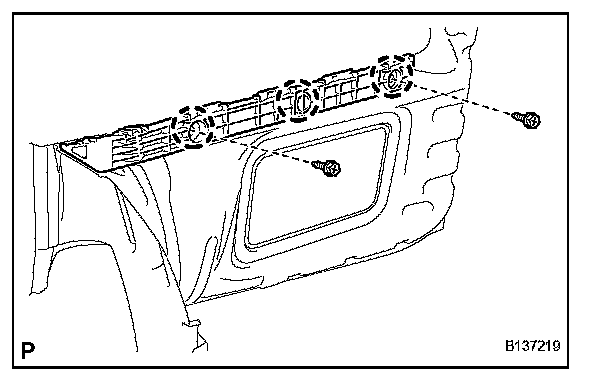

7. REMOVE REAR BUMPER SIDE SUPPORT LH






a. Remove the 2 screws.
b. Disengage the 3 claws and remove the rear bumper side support LH.

8. REMOVE REAR BUMPER SIDE SUPPORT RH

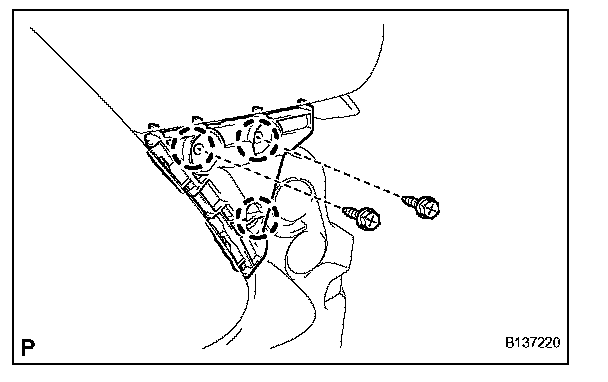

9. REMOVE REAR BUMPER SIDE RETAINER LH






a. Remove the 2 screws.
b. Disengage the 3 claws and remove the rear bumper side retainer LH.

10. REMOVE REAR BUMPER SIDE RETAINER RH

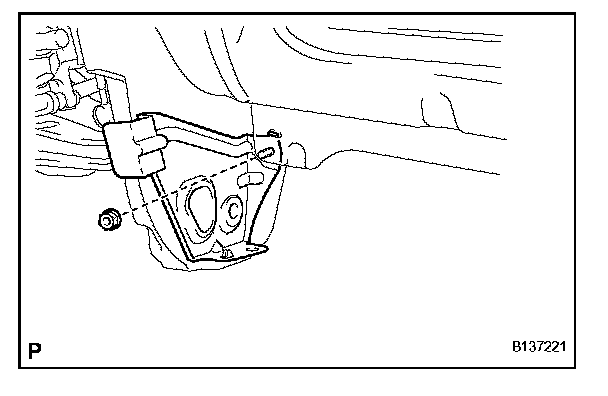

11. REMOVE WHEEL HOUSE REINFORCEMENT LH






a. Remove the nut and wheel house reinforcement LH.

12. REMOVE WHEEL HOUSE REINFORCEMENT RH

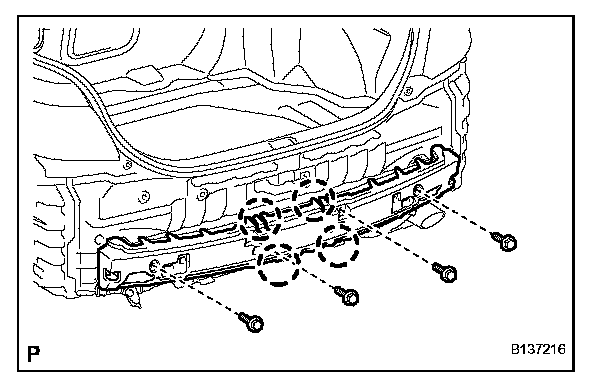

13. REMOVE REAR BUMPER ENERGY ABSORBER






a. Remove the 4 bolts.
b. Disengage the 4 claws and remove the rear bumper energy absorber.

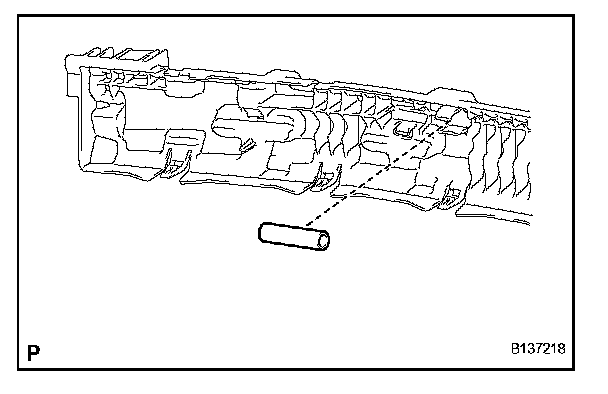

14. REMOVE REAR BUMPER BAR






a. Remove the rear bumper bar from the rear bumper energy absorber.

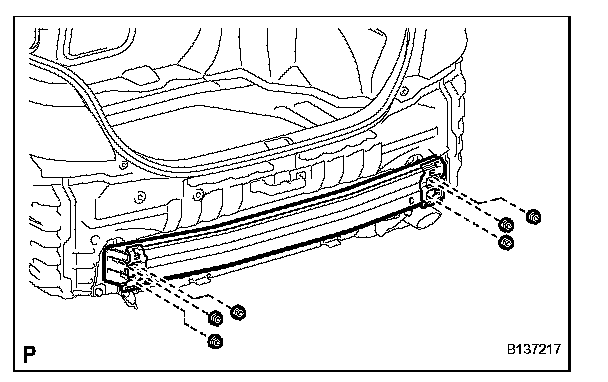

15. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY






a. Remove the 6 nuts and rear bumper reinforcement sub-assembly.

REASSEMBLY

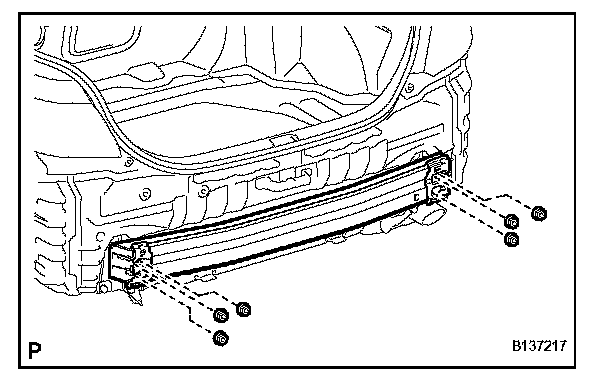

1. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY






a. Install the rear bumper reinforcement sub-assembly with the 6 nuts.

Torque: 68 N.m (693 kgf.cm, 50 ft.lbf)

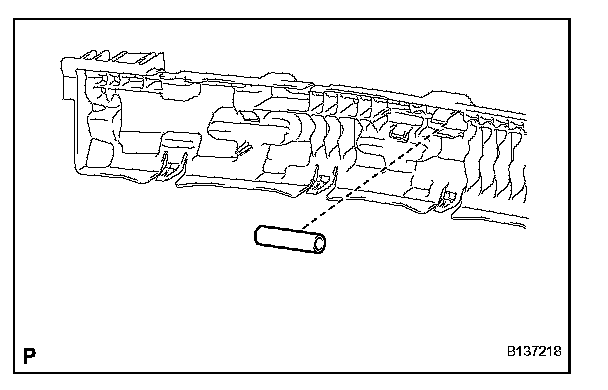

2. INSTALL REAR BUMPER BAR






a. Install the rear bumper bar on the rear bumper energy absorber.

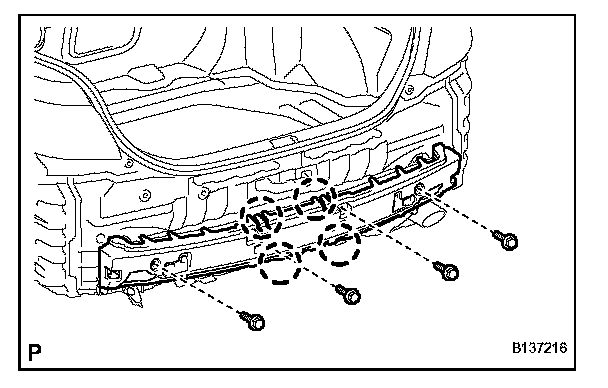

3. INSTALL REAR BUMPER ENERGY ABSORBER






a. Engage the 4 claws and install the rear bumper energy absorber.
b. Install the 4 bolts.

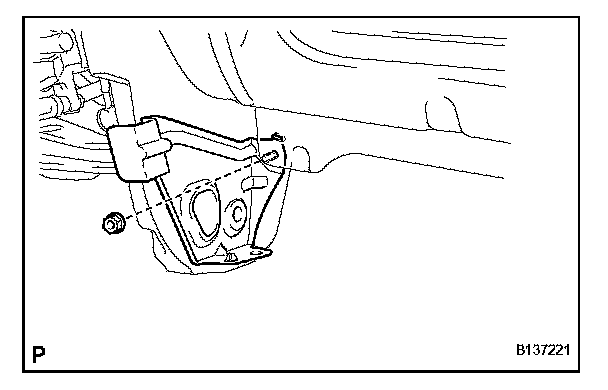

4. INSTALL WHEEL HOUSE REINFORCEMENT LH






a. Install the wheel house reinforcement LH with the nut.

5. INSTALL WHEEL HOUSE REINFORCEMENT RH

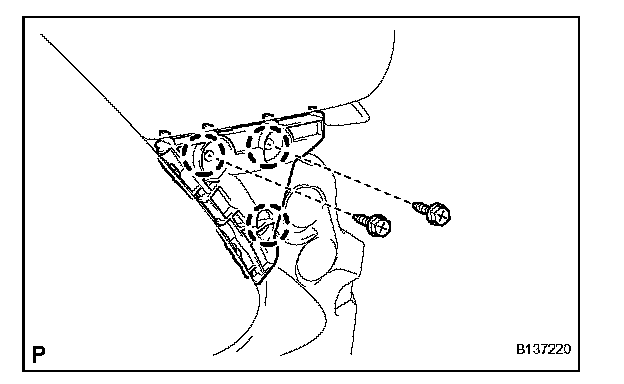

6. INSTALL REAR BUMPER SIDE RETAINER LH






a. Engage the 3 claws and install the rear bumper side retainer LH.
b. Install the 2 screws.

7. INSTALL REAR BUMPER SIDE RETAINER RH
8. INSTALL REAR BUMPER SIDE SUPPORT LH






a. Engage the 3 claws and install the rear bumper side support LH.
b. Install the 2 screws.

9. INSTALL REAR BUMPER SIDE SUPPORT RH

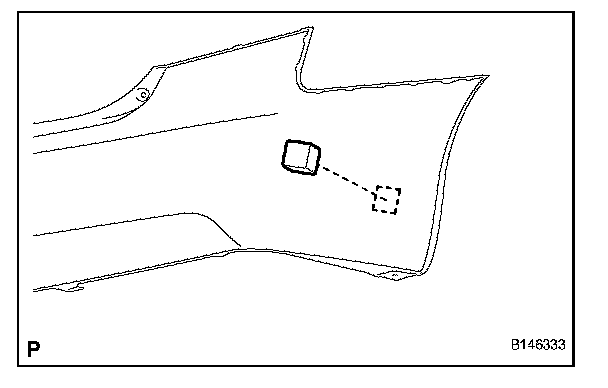

10. INSTALL REAR BUMPER PAD






a. Apply new double-sided tape to the rear bumper pad.
b. Remove the release paper from the rear bumper pad.
c. Install the rear bumper pad.

HINT: Use the same procedures for the RH side and LH side.

11. INSTALL REAR BUMPER PLATE LH
12. INSTALL REAR BUMPER PLATE RH

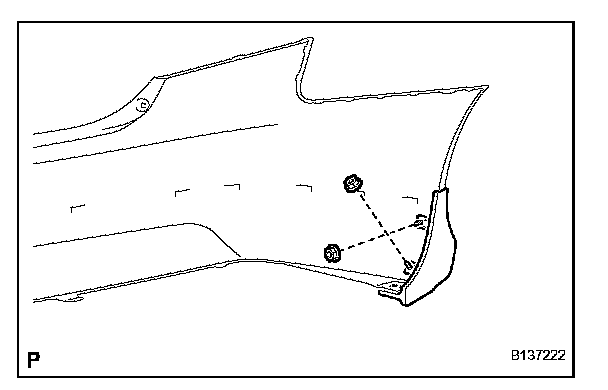

13. INSTALL REAR BUMPER EXTENSION LH (w/ Rear Lower Spoiler)






a. Install the rear bumper extension LH with the 2 nuts.

14. INSTALL REAR BUMPER EXTENSION RH (w/ Rear Lower Spoiler)
15. INSTALL REAR LOWER SPOILER (w/ Rear Lower Spoiler)
a. Engage the 16 claws and install the rear lower spoiler.






b. Install the 16 clips, 4 nuts and 2 screws.
