Garage Door Opener Transmitter: Service and Repair

REMOVAL




1. REMOVE ROOF CONSOLE BOX ASSEMBLY

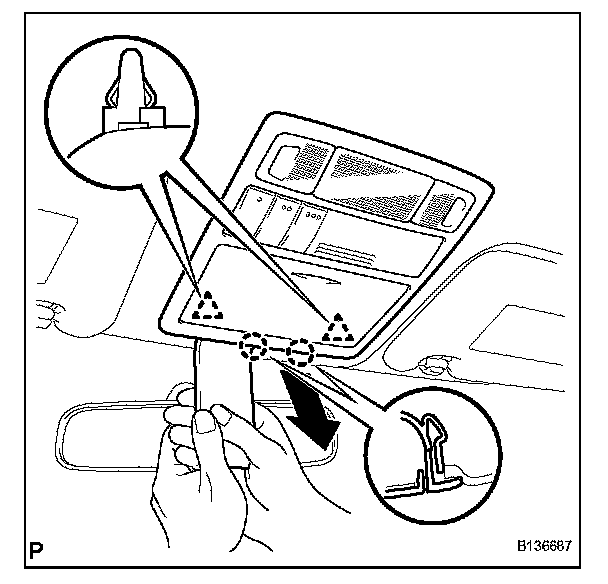

a. Using a moulding remover, disengage the 2 clips and the 2 claws.
b. Disconnect the connectors and remove the roof console box assembly.

INSTALLATION




1. INSTALL ROOF CONSOLE BOX ASSEMBLY
a. Connect the connectors.

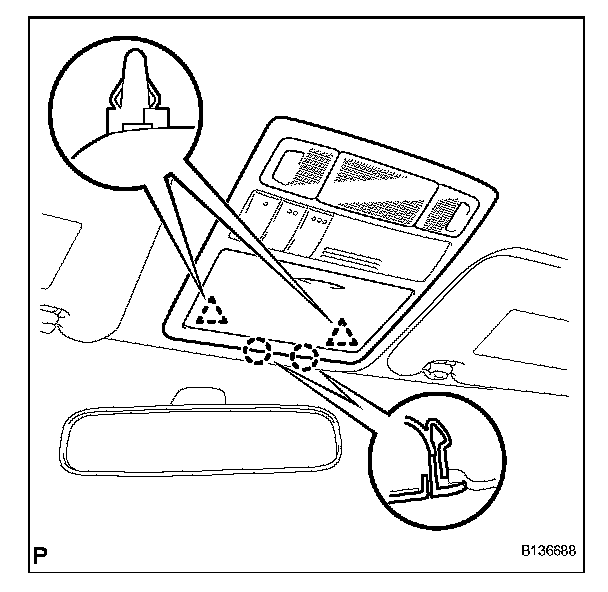

b. Engage the 2 claws and the 2 clips to install the roof console box assembly.
