Cellular Phone Microphone: Service and Repair

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY
2. REMOVE TELEPHONE MICROPHONE ASSEMBLY
a. Disconnect the connector.

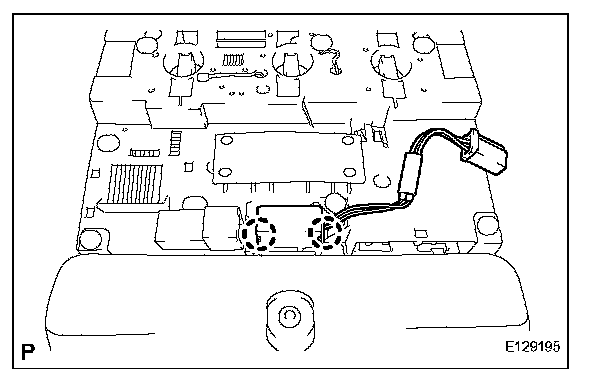

b. Disengage the 2 claws and remove the telephone microphone assembly.

INSTALLATION




1. INSTALL TELEPHONE MICROPHONE ASSEMBLY

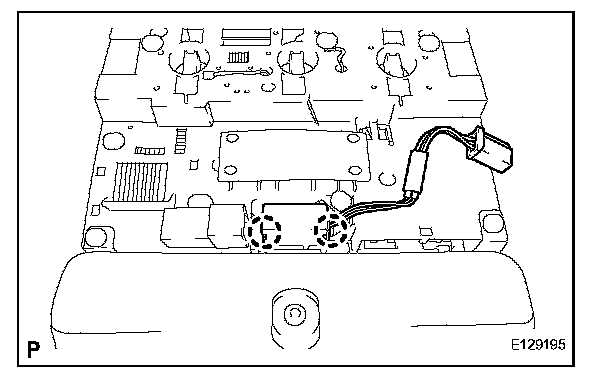

a. Engage the 2 claws and install the telephone microphone assembly.
b. Connect the connector.

2. INSTALL ROOF CONSOLE BOX ASSEMBLY
