Wiper and Washer Switch Circuit

Wiper and Washer Switch Circuit

DESCRIPTION
The signals output by manual operation are sent to the front controller.

INSPECTION PROCEDURE

HINT: Before performing this procedure, check that DTCs for the multiplex communication system are not output.

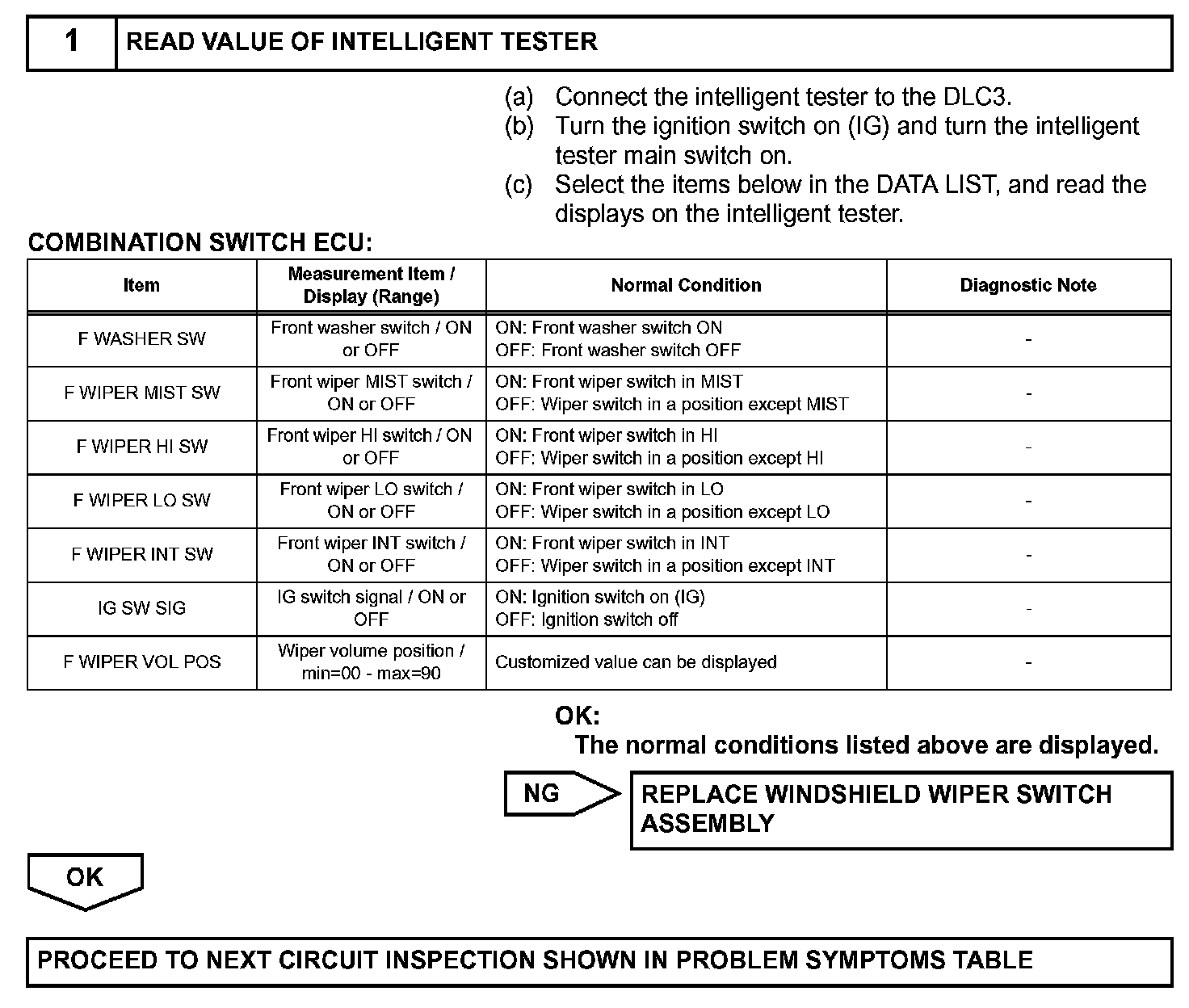

Step 1:
