Washer Motor Circuit
Washer Motor CircuitDESCRIPTION
The front controller receives washer switch information from the windshield wiper switch, and operates the washer relay.

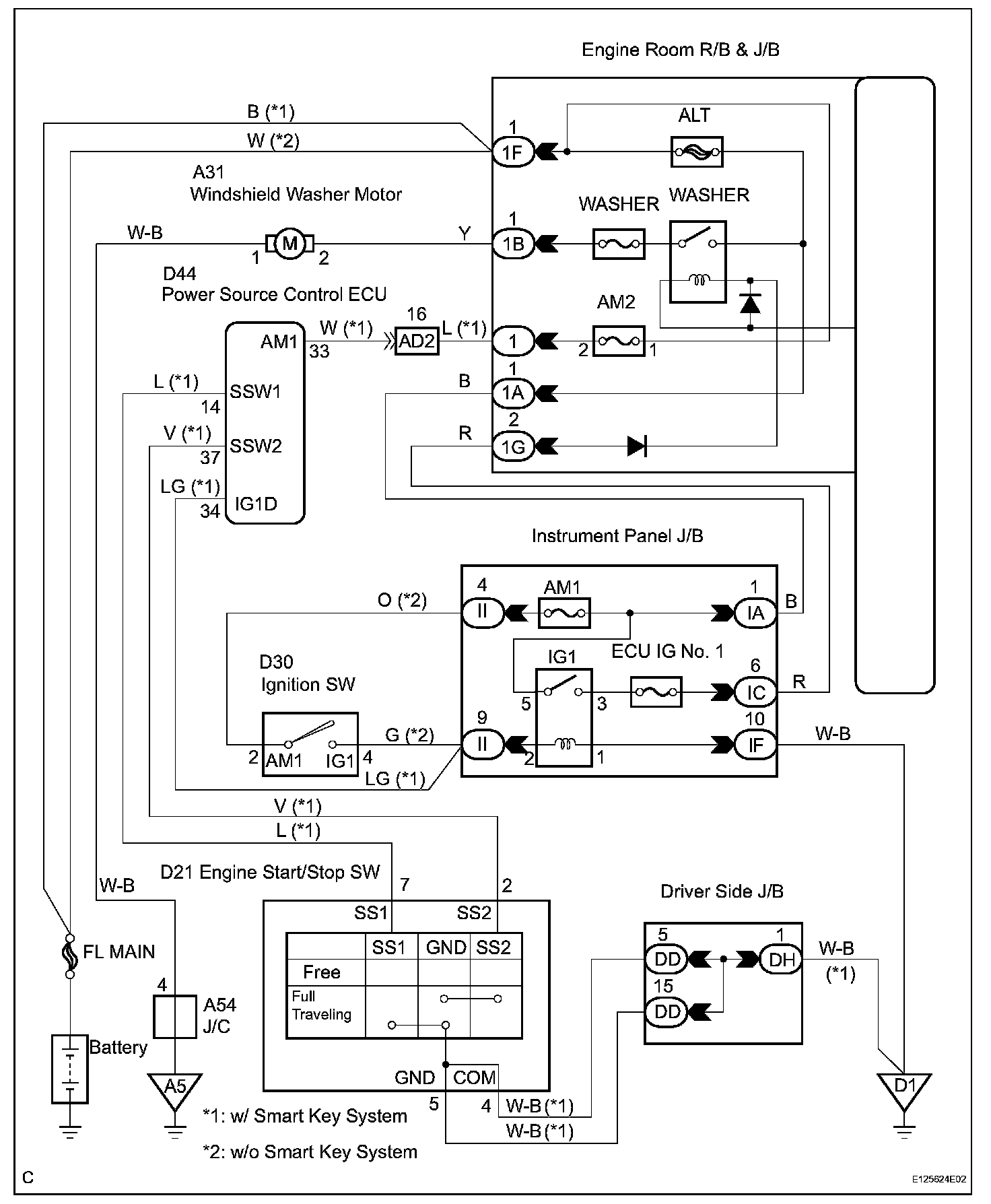

Wiring Diagram:
INSPECTION PROCEDURE

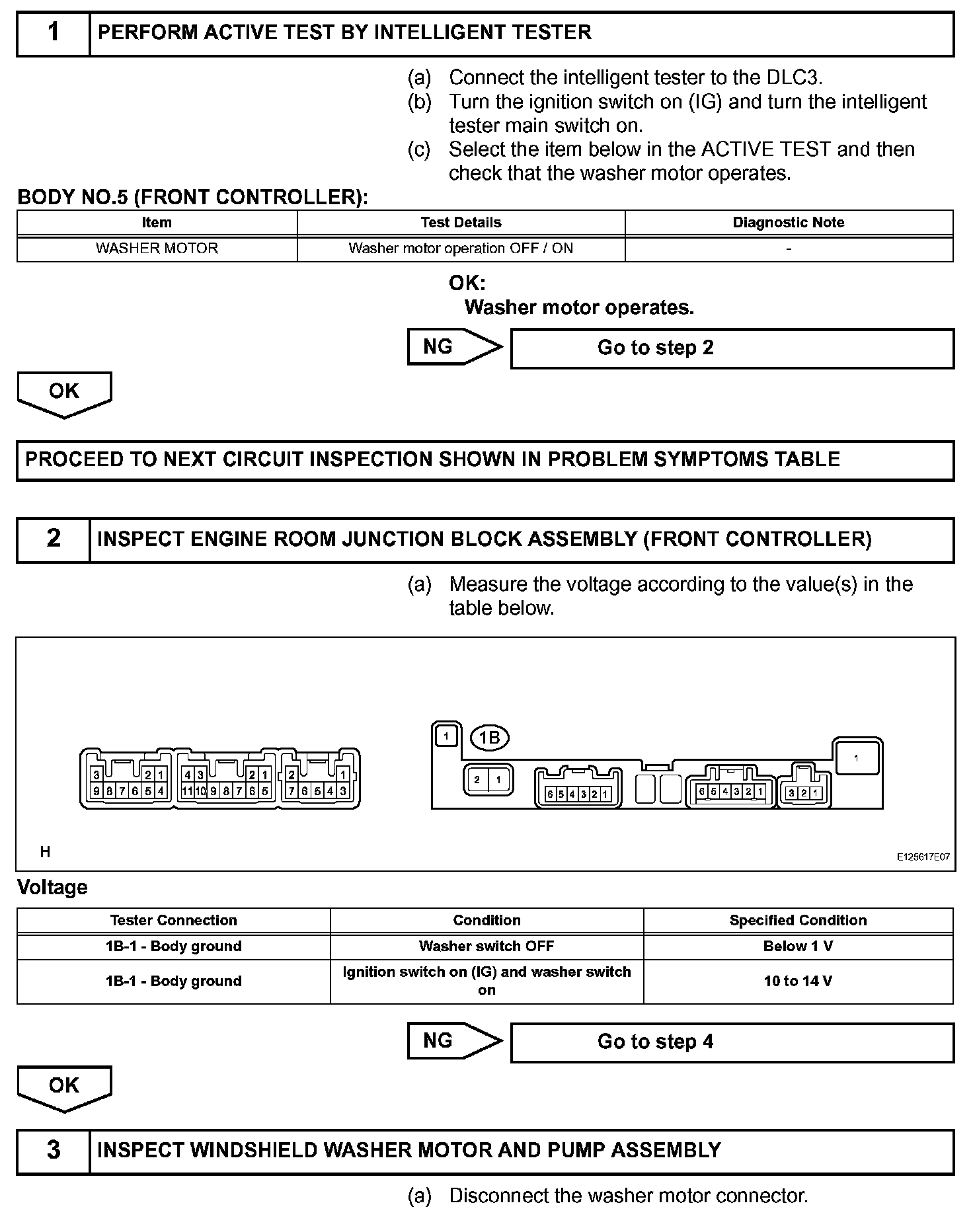

Step 1-3:

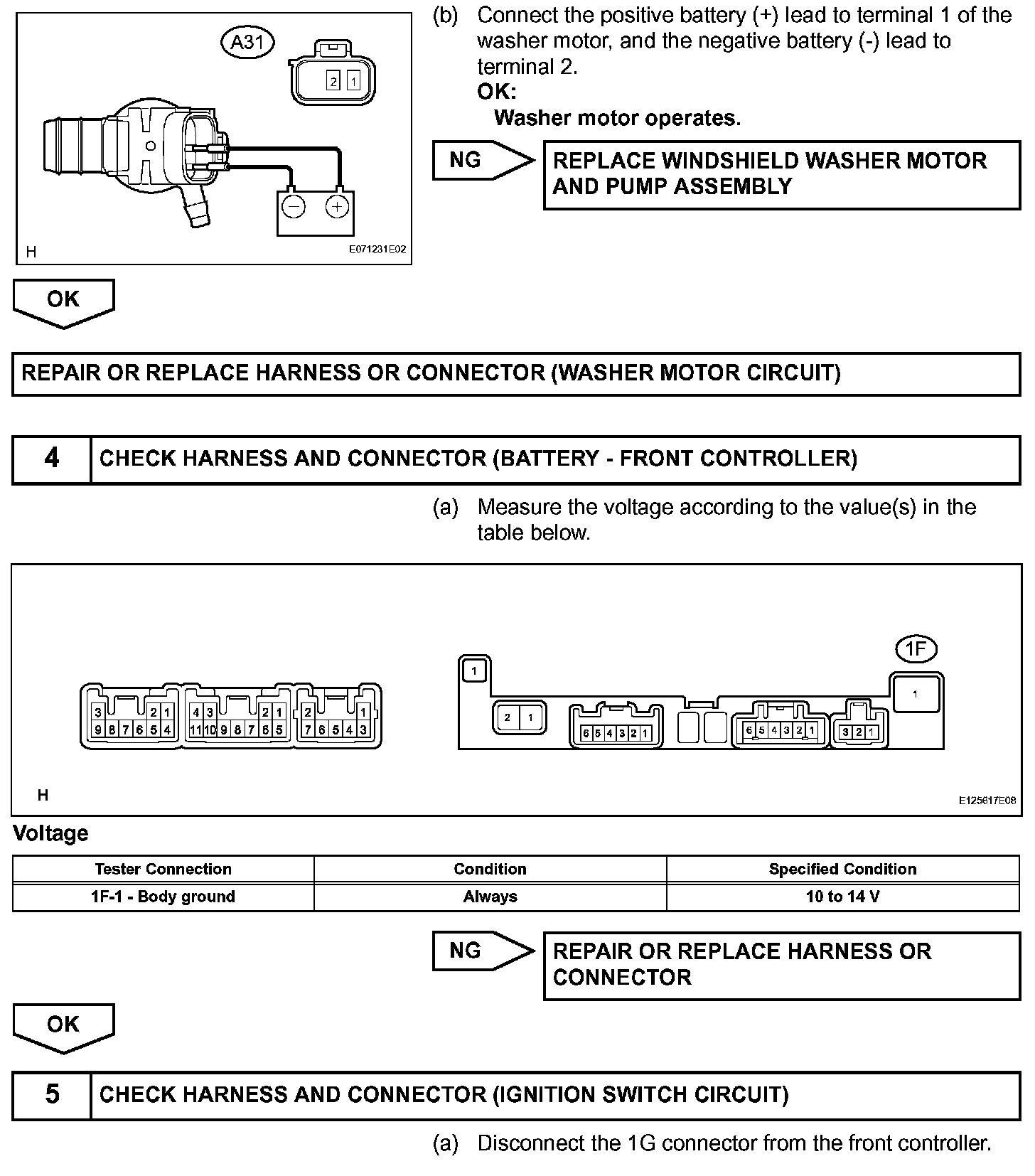

Step 3 (Continued)-5:

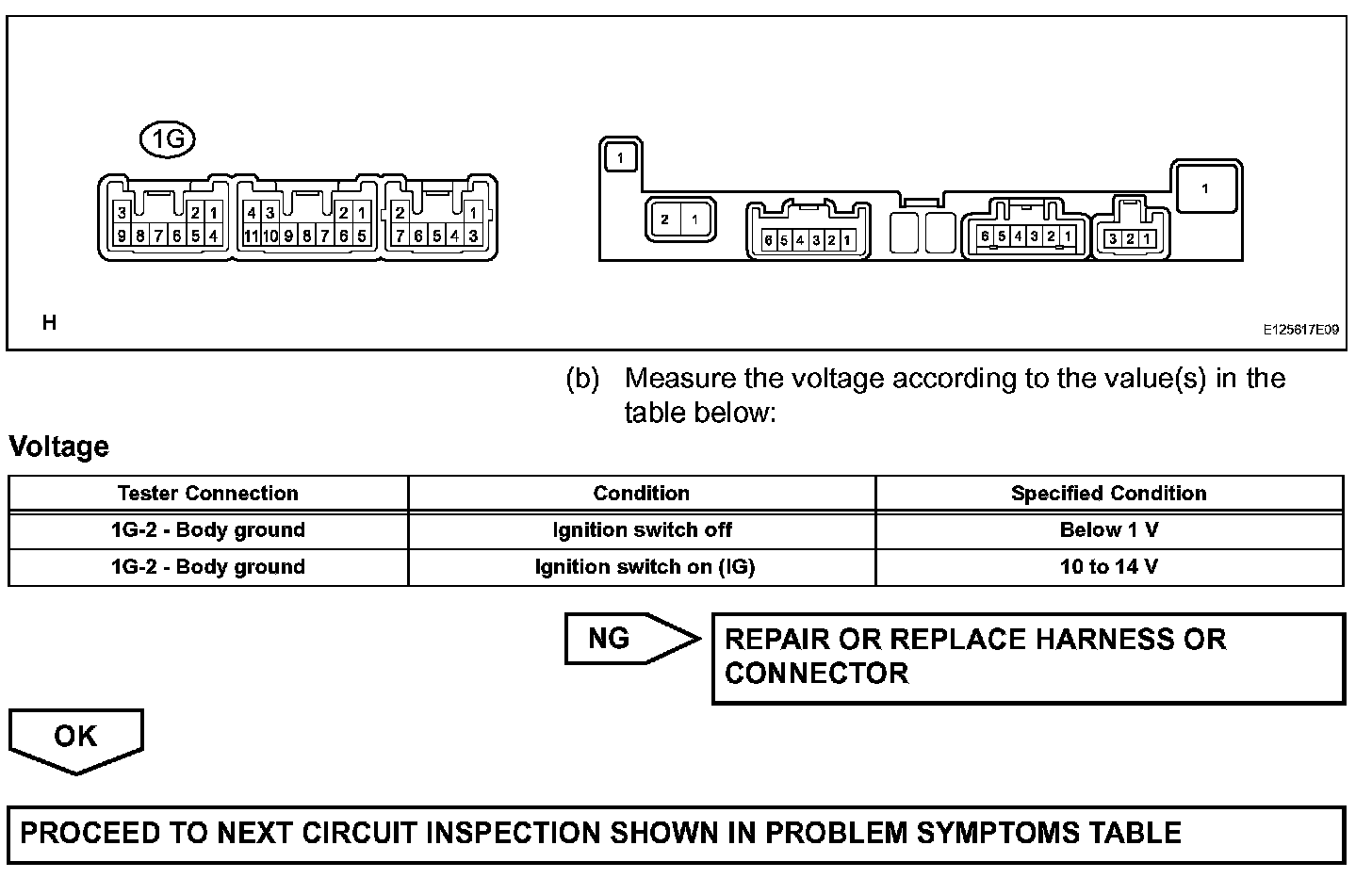

Step 5 (Continued):
