Rear Power Window Switch RH Circuit

Rear Power Window Switch RH Circuit

DESCRIPTION
This circuit transmits signals from the multiplex network master switch assembly to power window regulator switch assembly (Rear RH).

WIRING DIAGRAM

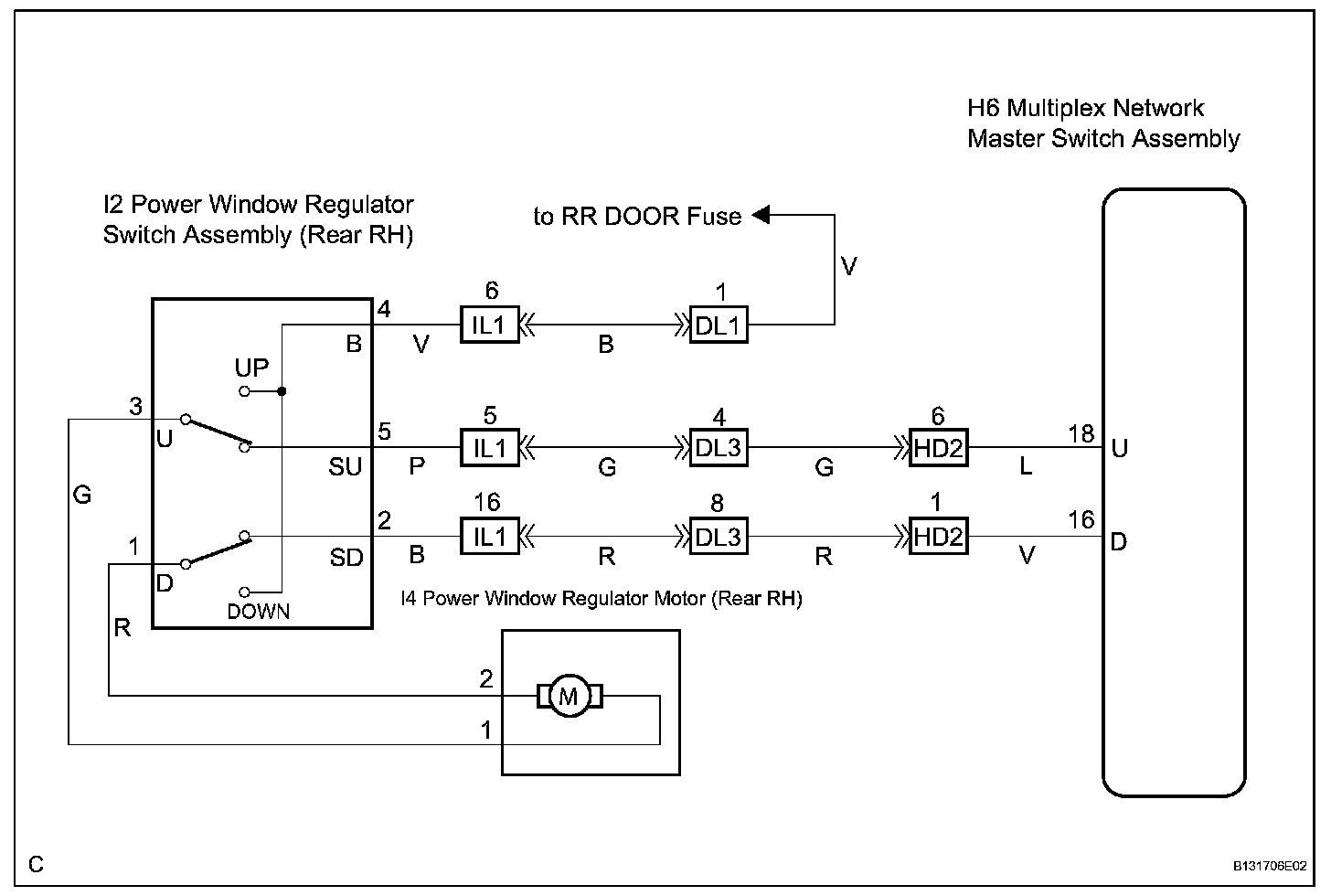

Wiring Diagram:






INSPECTION PROCEDURE

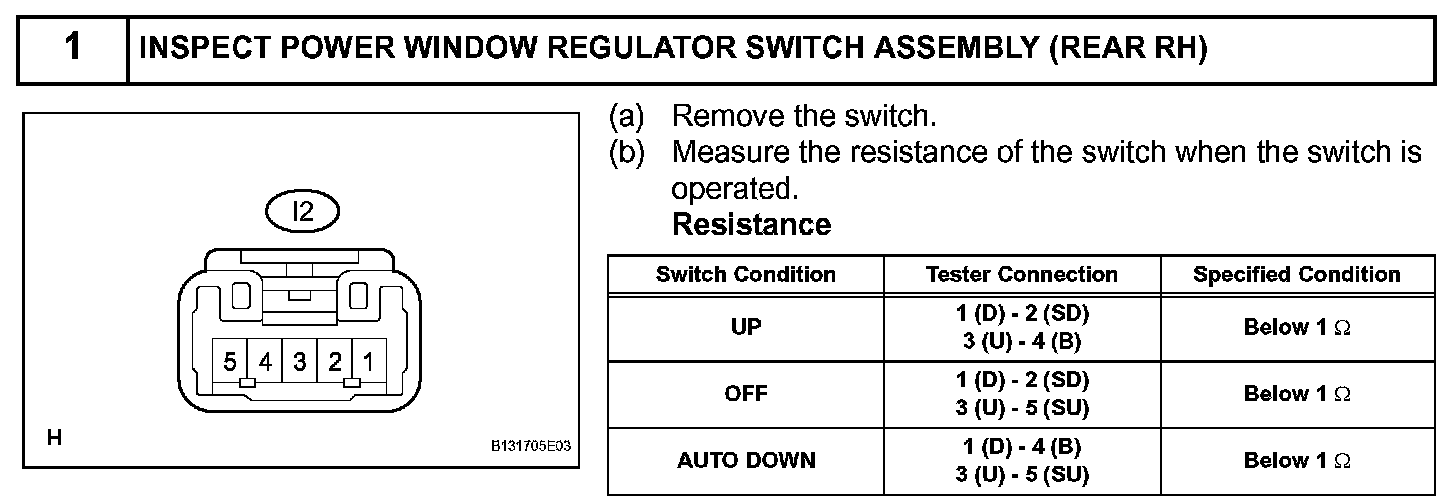

Step 1:

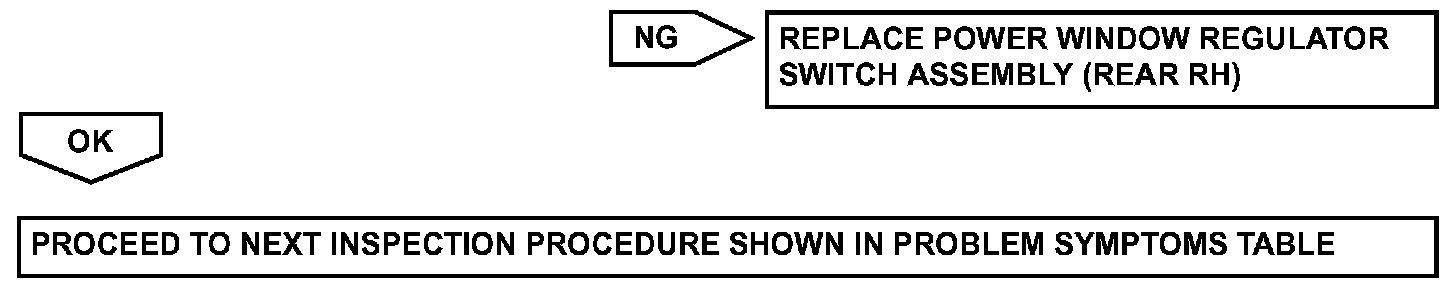

Step 1(Continued):
