Driver Side Power Window Motor Circuit
Driver Side Power Window Motor CircuitDESCRIPTION
This circuit transmits signal from the multiplex network master switch assembly to power window regulator motor assembly (Driver side).
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

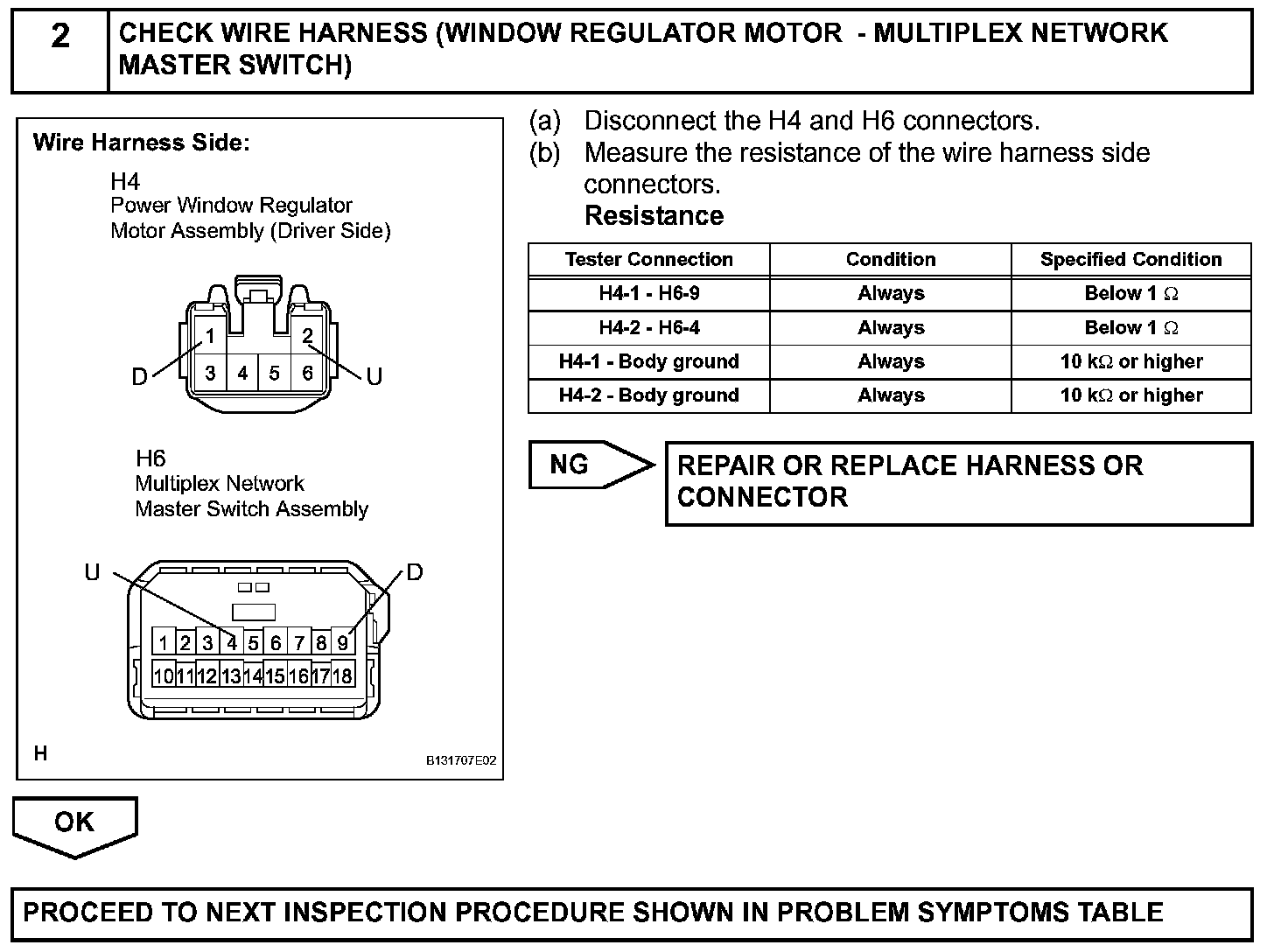

Step 2:
