How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING
The intelligent tester can be used during steps 3, 7, 10 and 13.

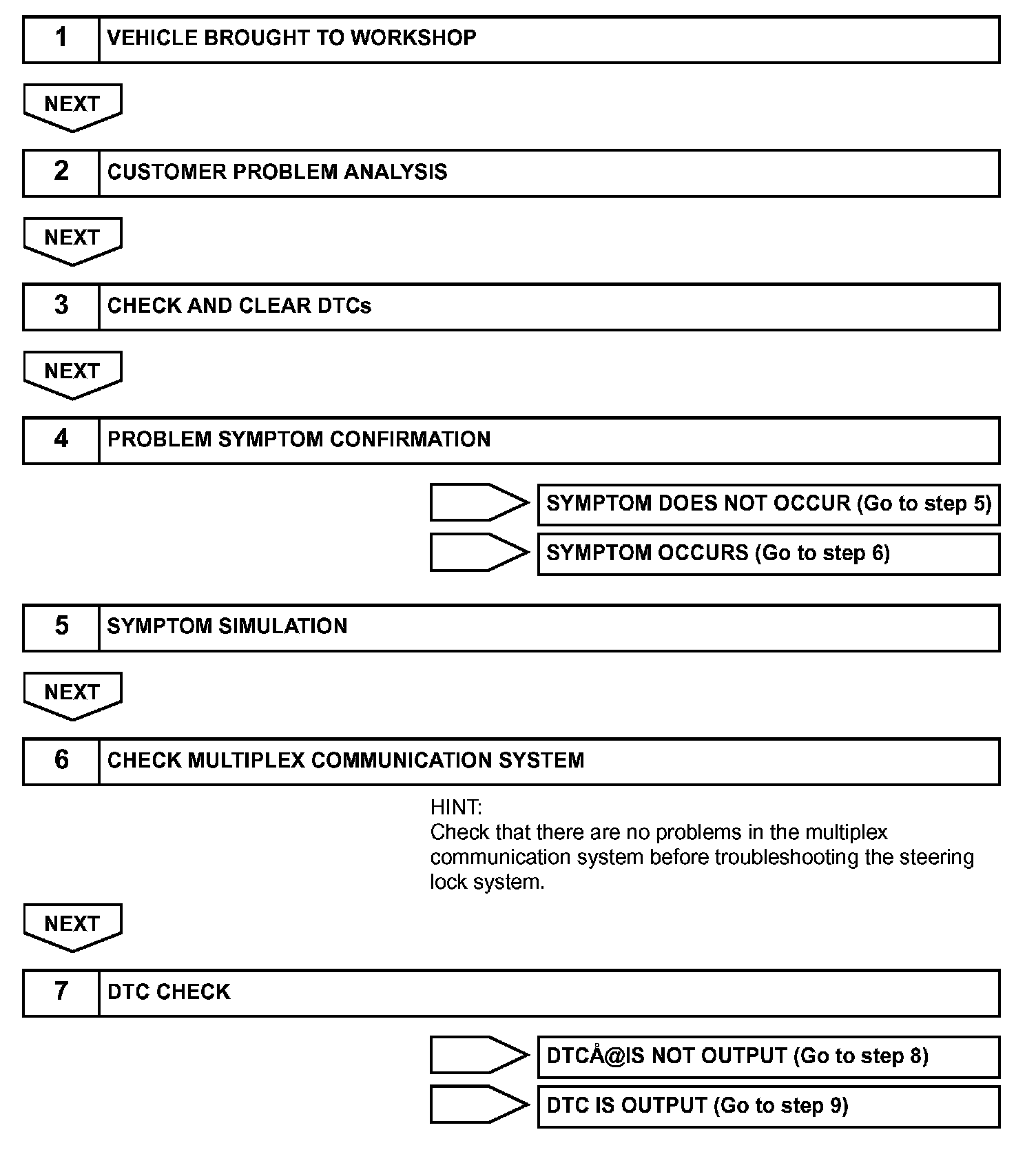

Steps 1-7:

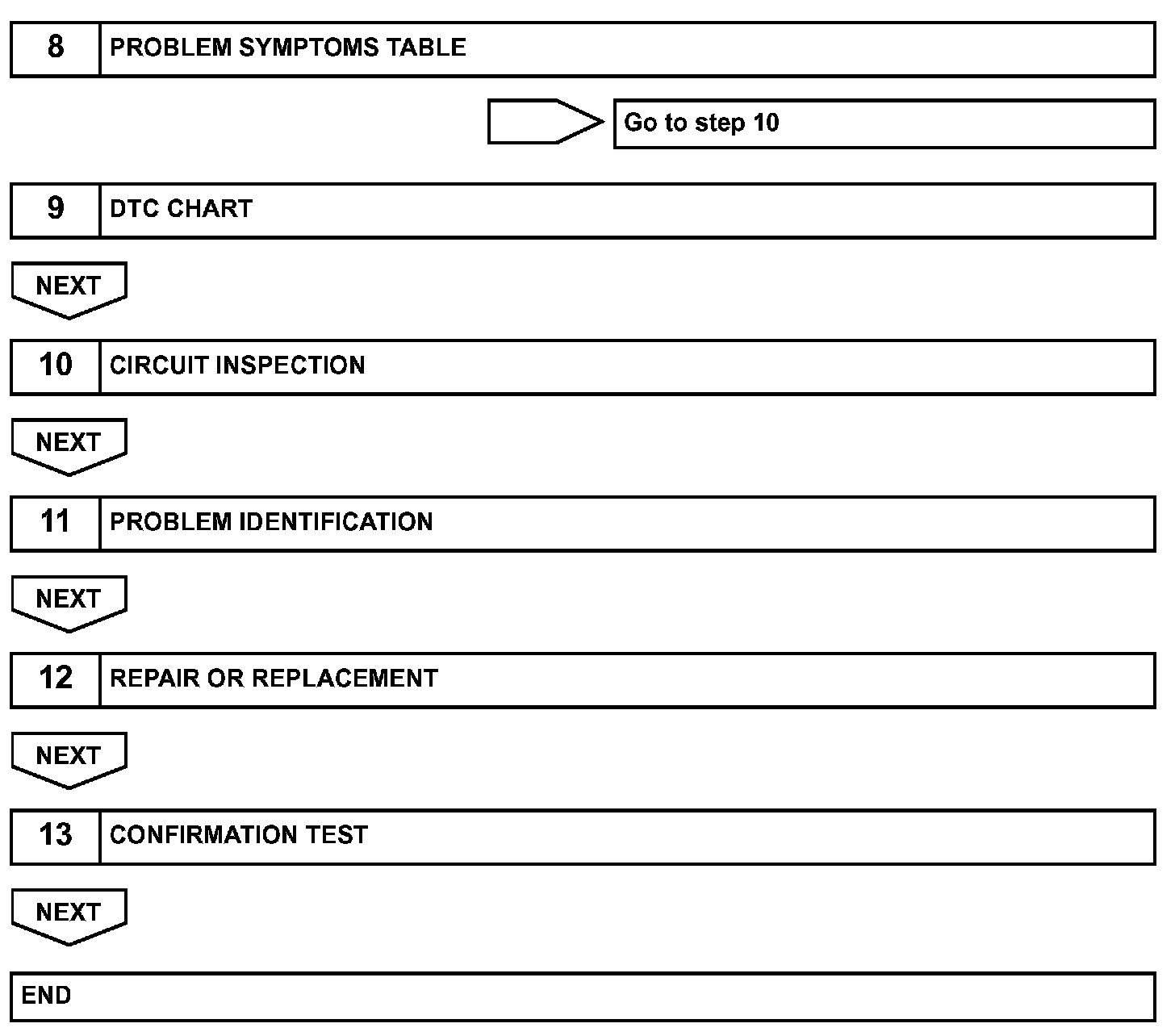

Steps 8-13:
