Component Locations

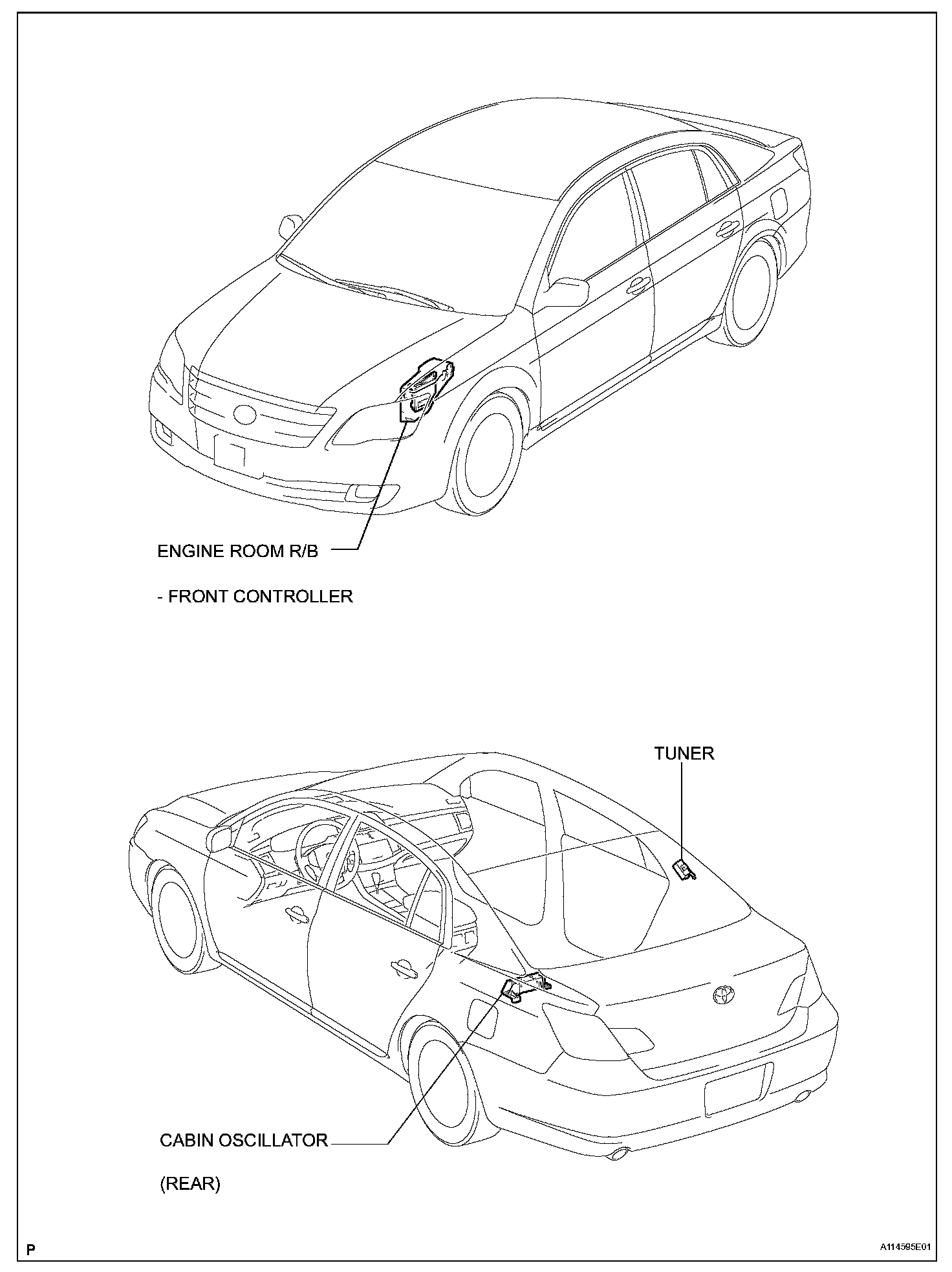

Smart Key System:

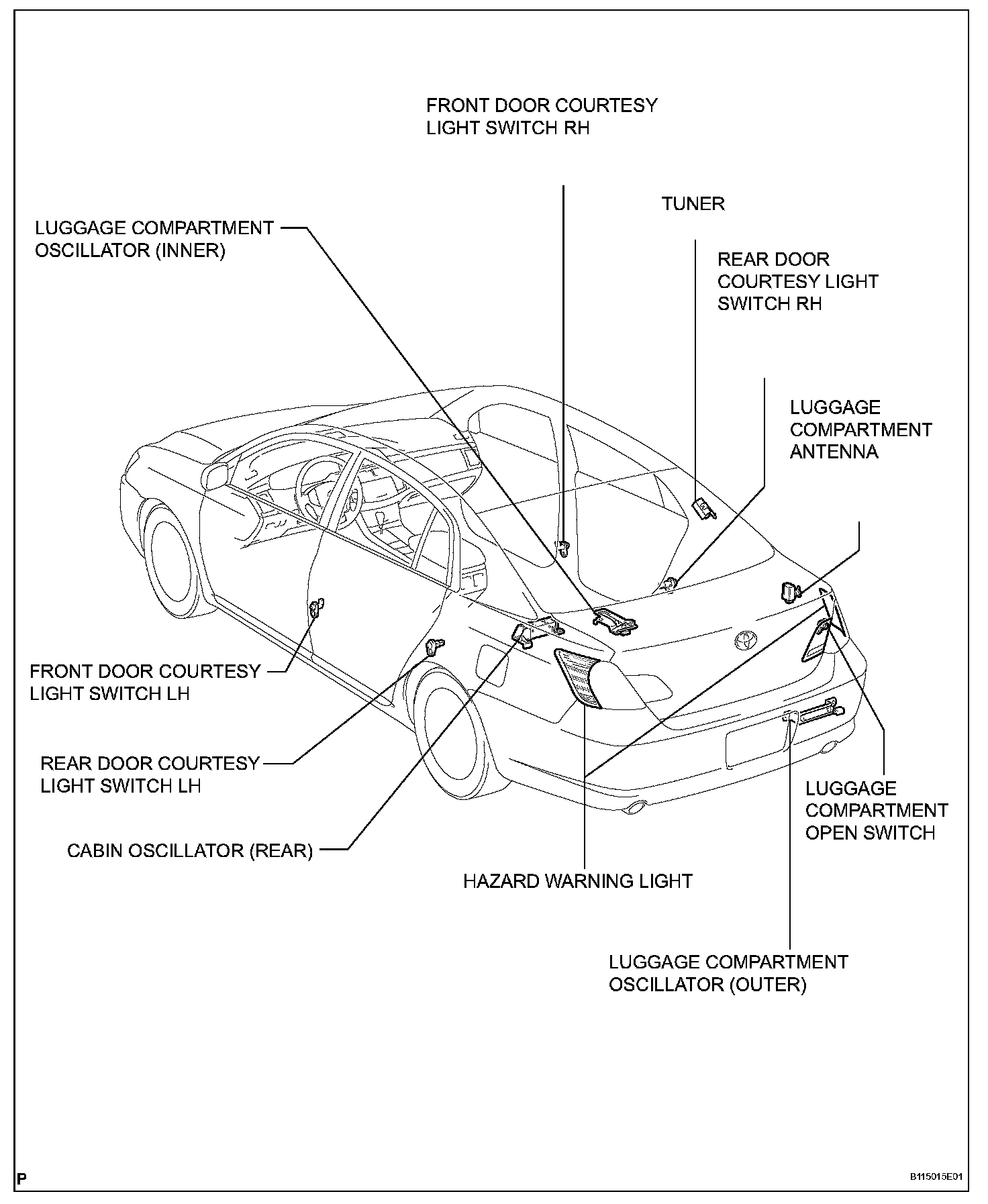

Smart Key System:

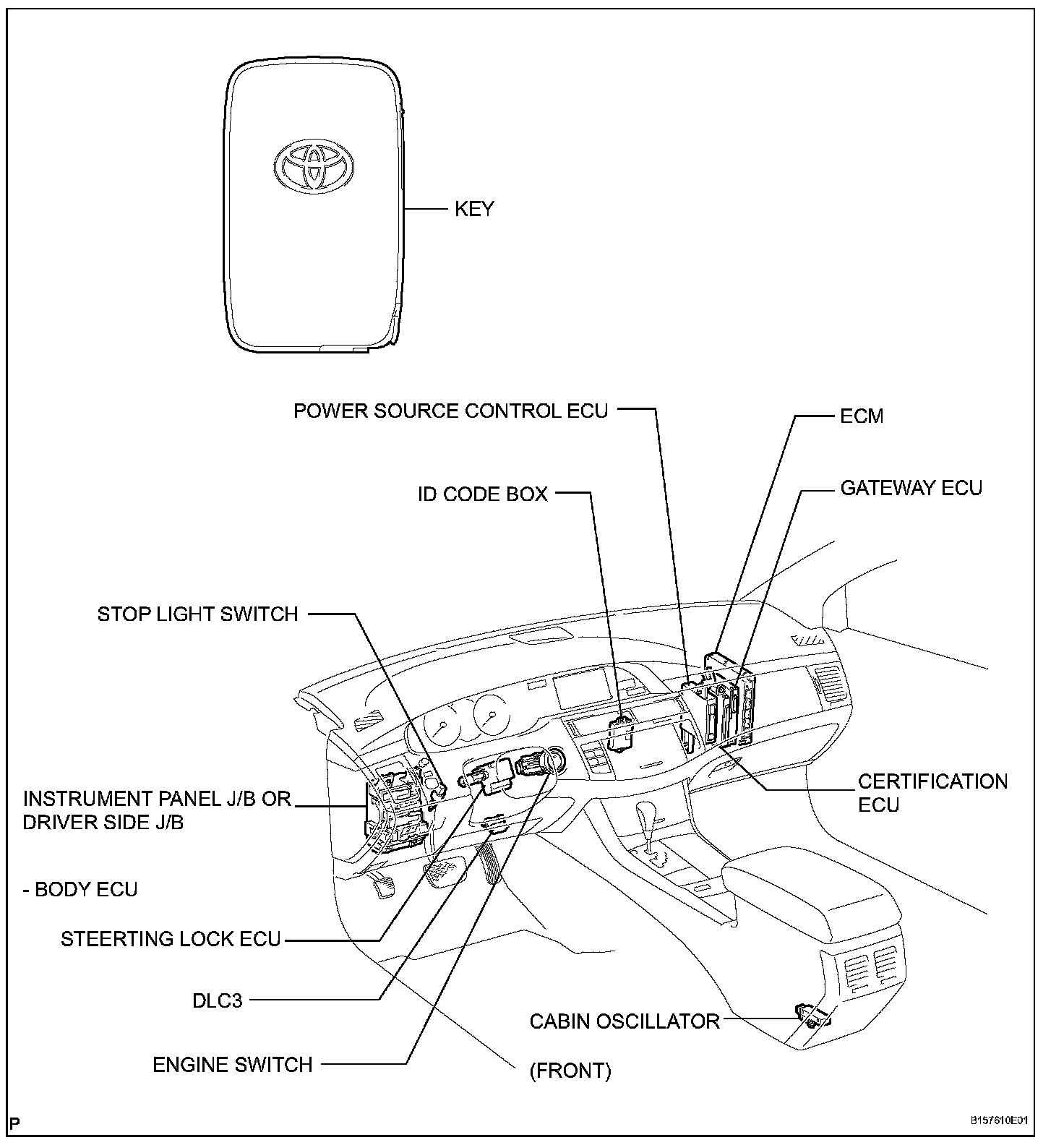

Smart Key System:

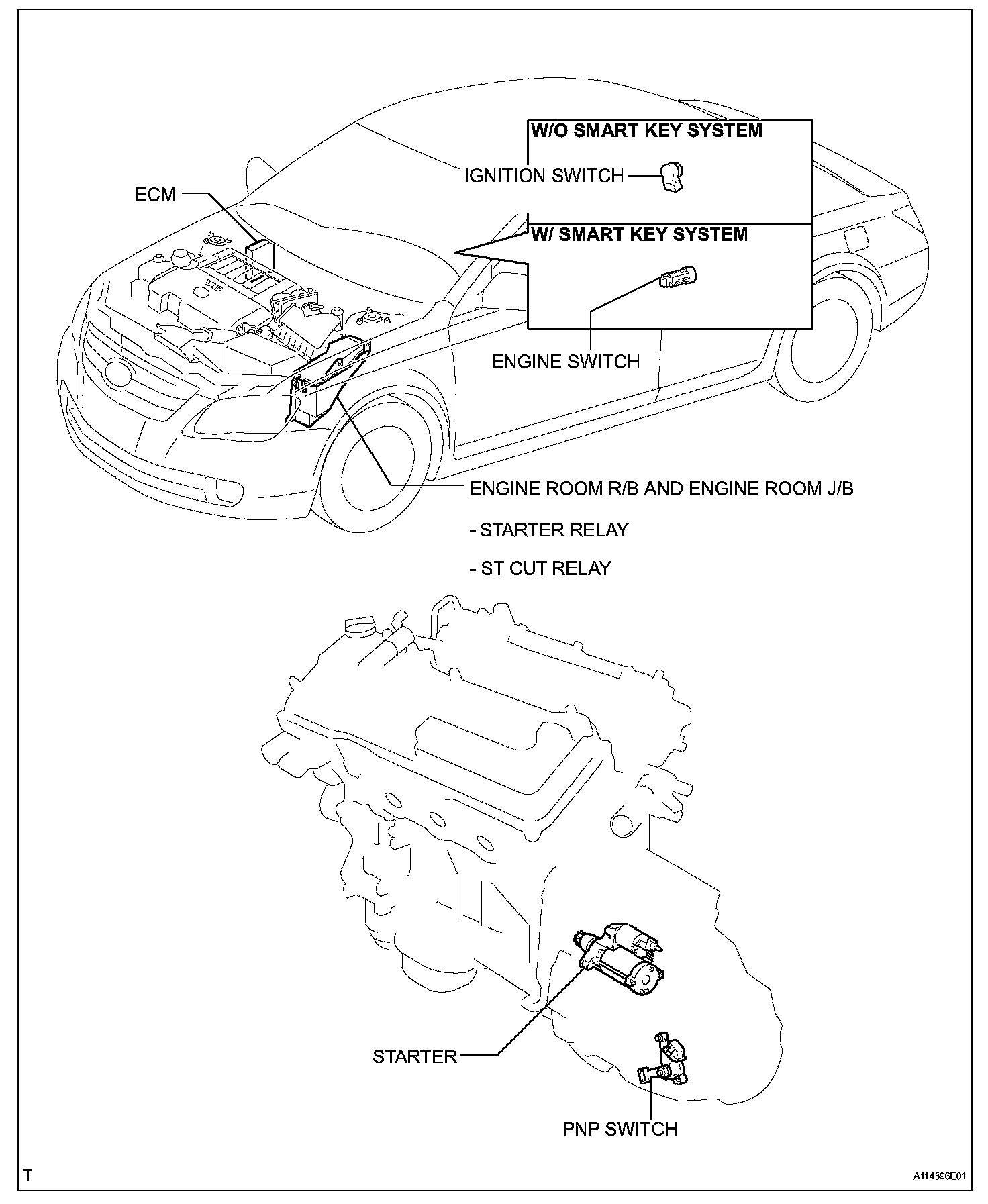

Starting System:

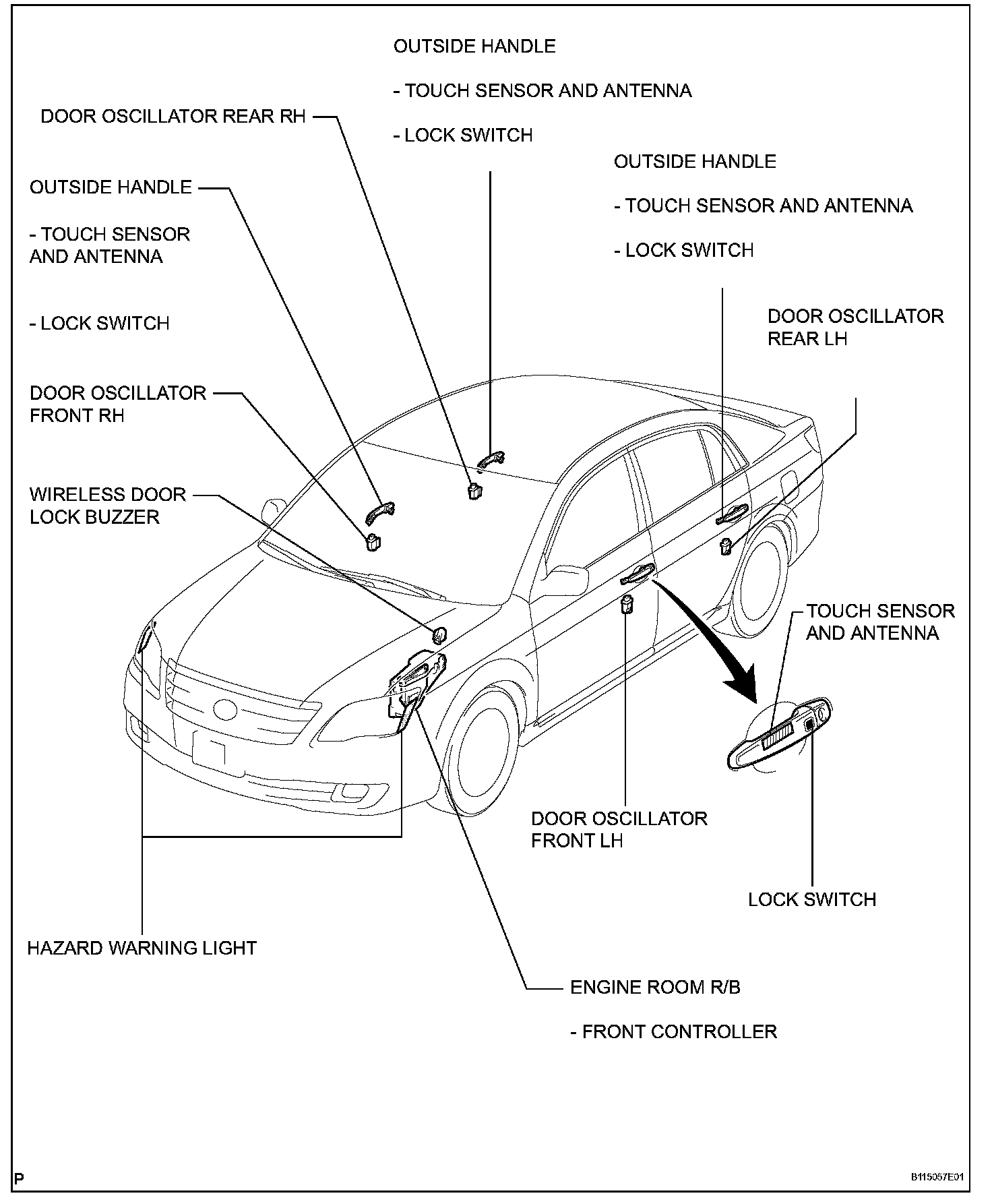

Smart Key System:

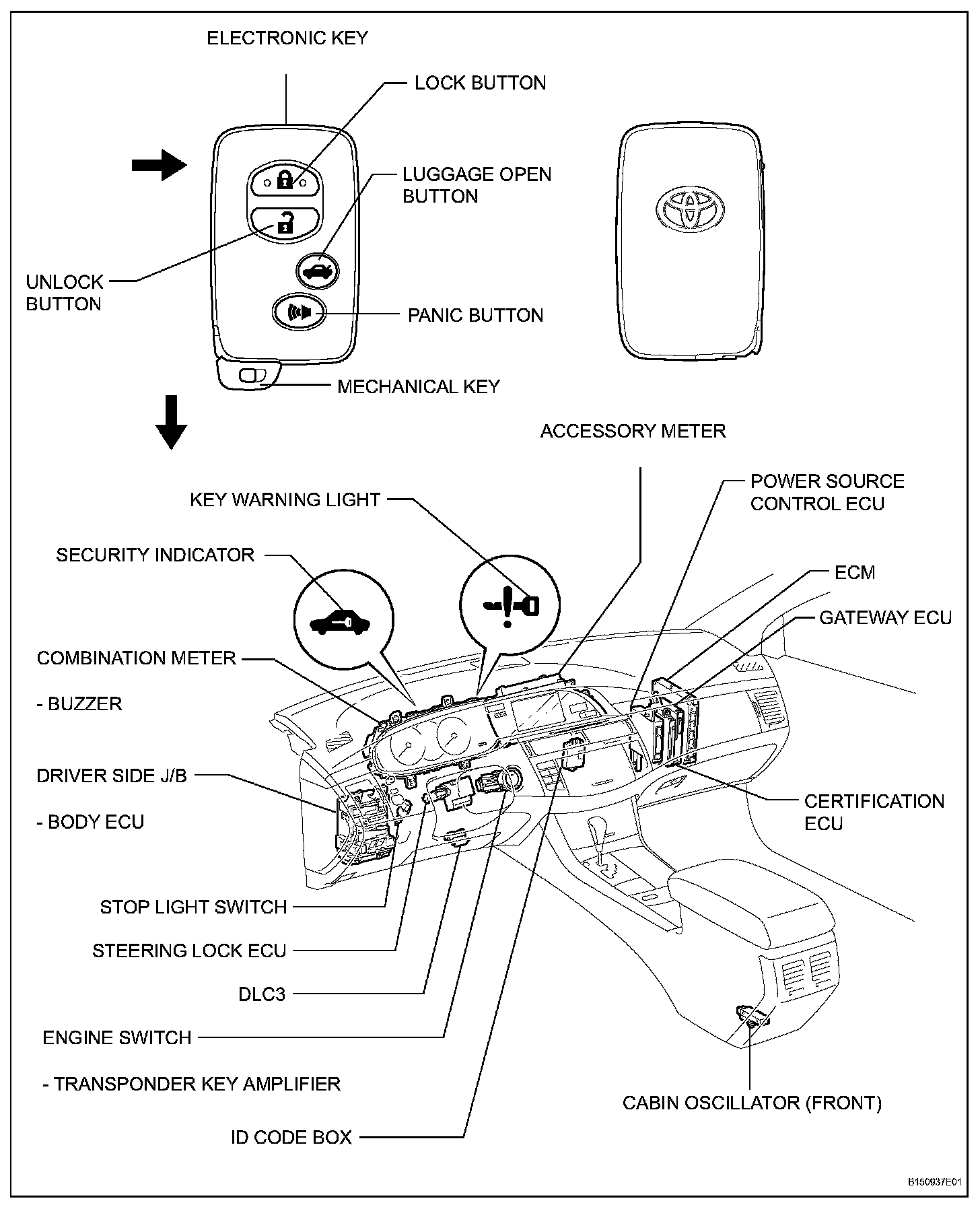

Smart Key System:
