Charging System: Description and Operation

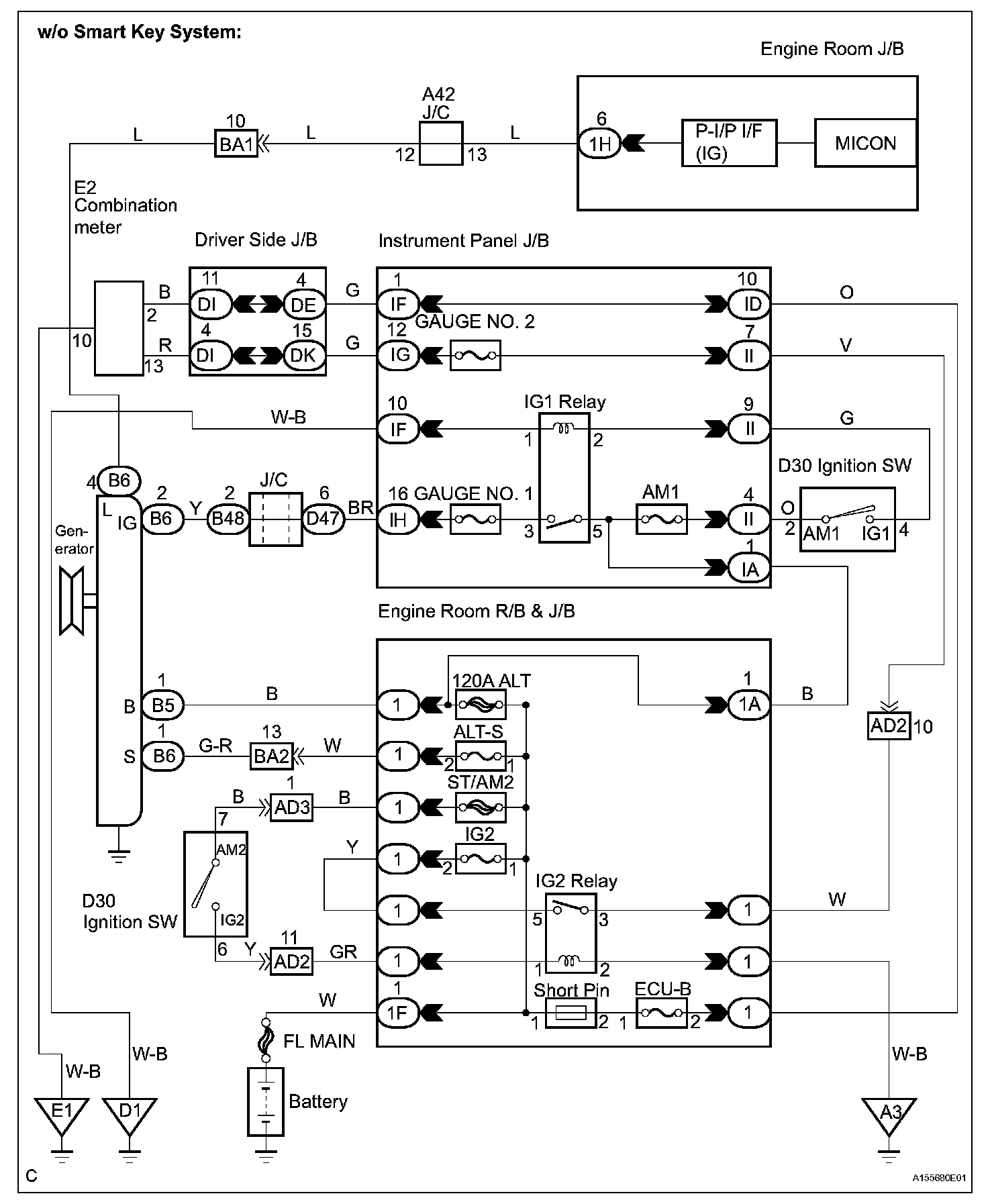

System Diagram (w/o Smart Key System):

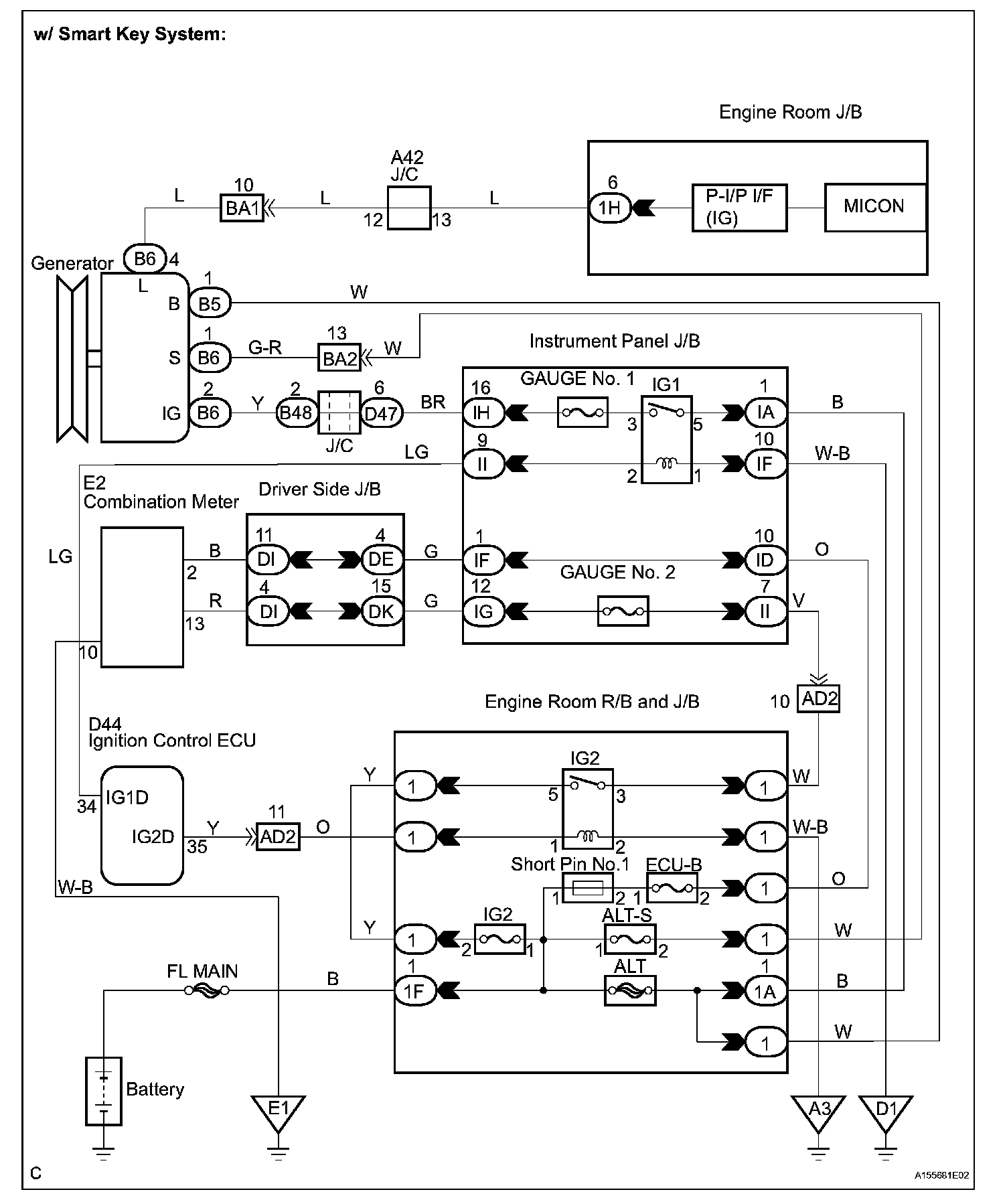

System Diagram (w/ Smart Key System):
