Headlamp Relay: Testing and Inspection

INSPECTION

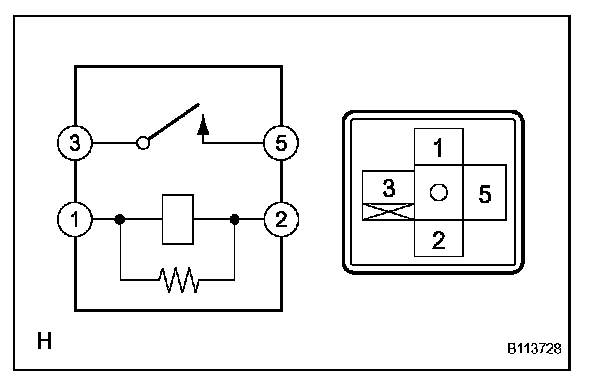

1. INSPECT HEADLIGHT RELAY

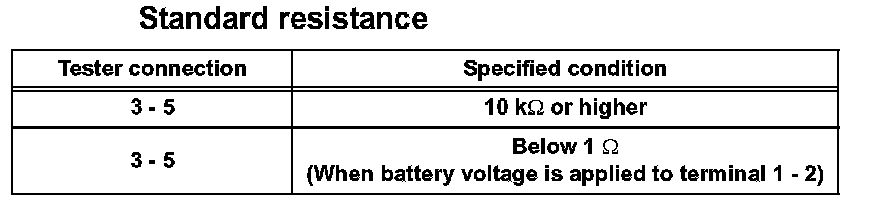

a. Measure the resistance according to the value(s) in the table.
