Fuel Pump Relay: Testing and Inspection

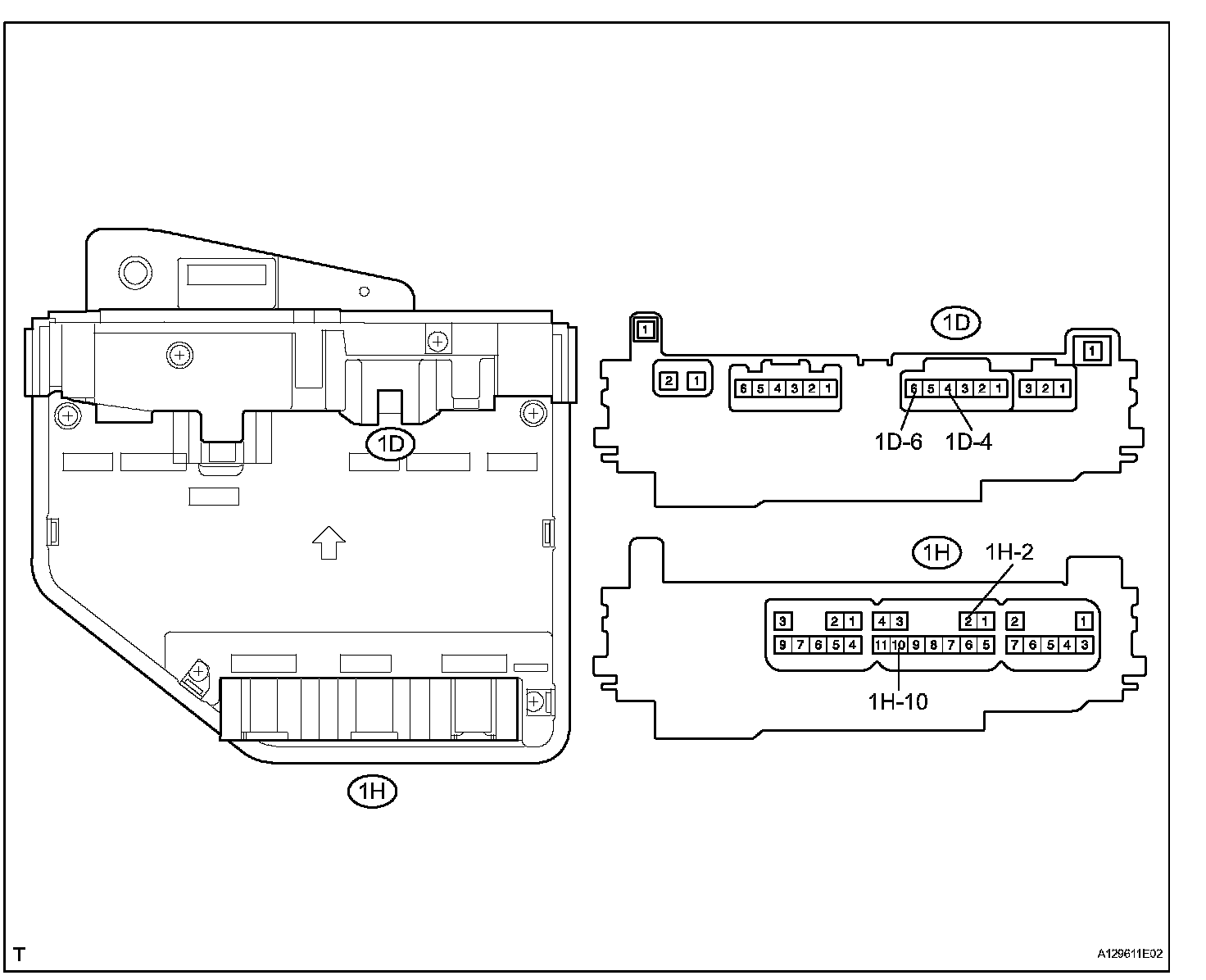

INSPECTION1. INSPECT EFI RELAY
a. Inspect EFI relay

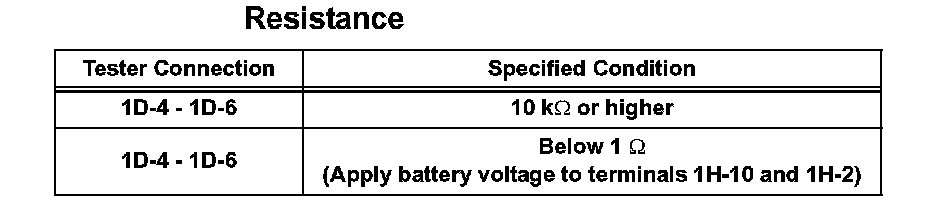

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the engine room junction block assembly.
1. INSPECT EFI RELAY
a. Inspect EFI relay
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the engine room junction block assembly.
