Evaporative Emission Control Canister: Service and Repair
REMOVAL1. PREVENT GASOLINE FROM SPILLING OUT
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE REAR SEAT CUSHION ASSEMBLY
4. REMOVE REAR FLOOR SERVICE HOLE COVER
5. SEPARATE FUEL PUMP TUBE SUB-ASSEMBLY
6. DRAIN FUEL
7. REMOVE EXHAUST PIPE ASSEMBLY CENTER
8. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO.2
9. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO.3
10. REMOVE FUEL TANK ASSEMBLY
11. REMOVE CHARCOAL CANISTER ASSEMBLY

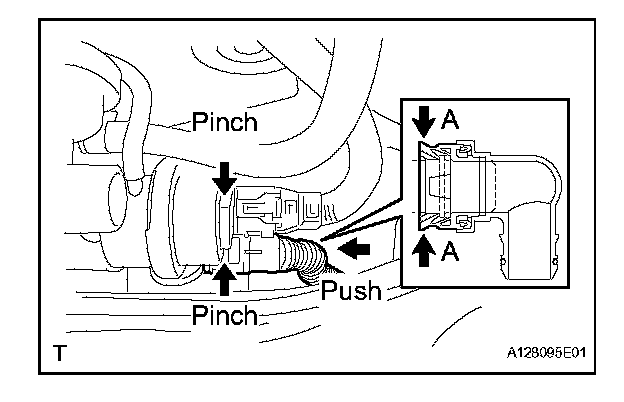

a. Disconnect the fuel tank vent hose from the charcoal canister.
1. Push the connector deep inside.
2. Pinch portion A.
3. Pull out the connector.
b. Disconnect the charcoal canister filter sub-assembly from the charcoal canister.
1. Push the connector deep inside.
2. Pinch portion A.
3. Pull out the connector.
c. Disconnect the vapor pressure sensor connector.
d. Disconnect the wire harness clamp.
e. Disconnect the purge line hose from the charcoal canister.

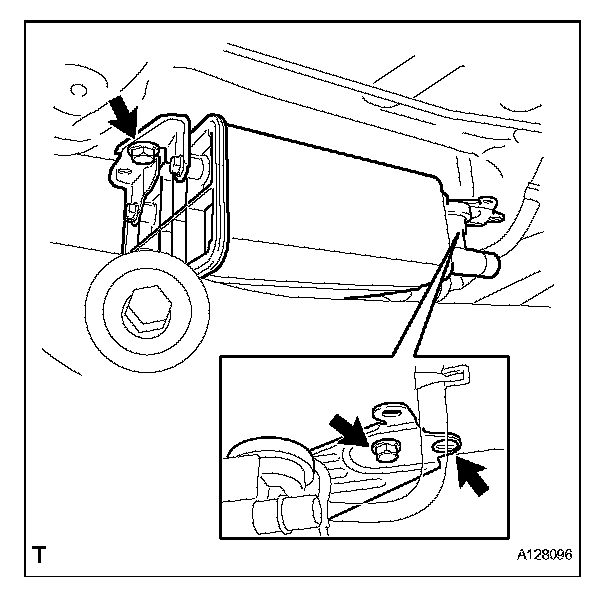

f. Remove the 2 bolts, clip and charcoal canister.
INSTALLATION
1. INSTALL CHARCOAL CANISTER ASSEMBLY
a. Install the 2 bolts, clip and charcoal canister.
Torque: 36 N.m (367 kgf.cm, 27 ft.lbf)
b. Connect the purge line hose to the charcoal canister.
c. Connect the wire harness clamp.
d. Connect the vapor pressure sensor connector.
e. Connect the charcoal canister filter sub-assembly to the charcoal canister.
f. Connect the fuel tank vent hose to the charcoal canister.
2. INSTALL FUEL TANK ASSEMBLY
3. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
4. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.2
5. INSTALL EXHAUST PIPE ASSEMBLY CENTER
6. CONNECT FUEL PUMP TUBE SUB-ASSEMBLY
7. ADD FUEL
8. CONNECT BATTERY NEGATIVE TERMINAL
9. CHECK FOR FUEL LEAKS
10. CHECK FOR EXHAUST GAS LEAKS
11. INSTALL REAR FLOOR SERVICE HOLE COVER
12. INSTALL REAR SEAT CUSHION ASSEMBLY
13. PERFORM SYSTEM INITIALIZE
Some systems need initialization when disconnecting the battery terminal.
