Component Tests and General Diagnostics

INSPECTION
1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

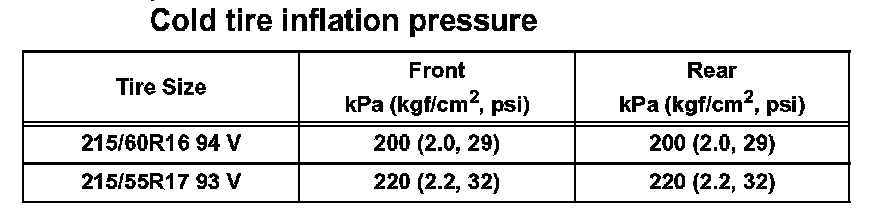

Cold tire inflation pressure:

(b) Using a dial indicator, check the tire runout.
Tire runout: 1.4 mm (0.055 in.) or less





2. ROTATE TIRES

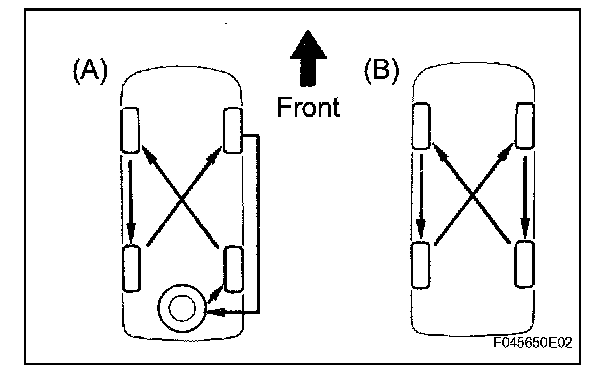

(a) Rotate the tires as shown in illustration (B). If the vehicle is equipped with a grand spare tire, rotate the tires as shown in illustration (A).





3. INSPECT WHEEL BALANCE

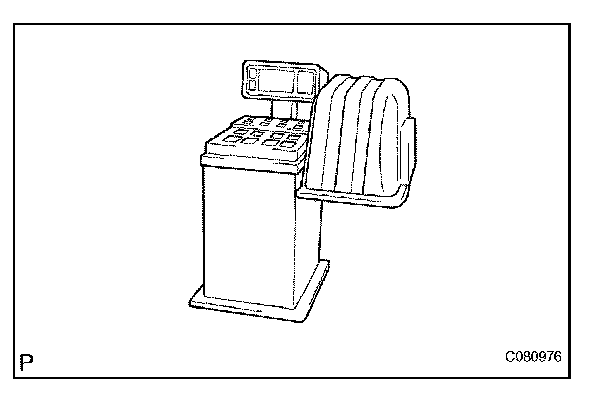

(a) Check and adjust the off-the-car balance.
(b) If necessary, check and adjust the on-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lb) or less
4. INSPECT FRONT AXLE HUB BEARING LOOSENESS
5. INSPECT REAR AXLE HUB BEARING LOOSENESS
6. INSPECT FRONT AXLE HUB RUNOUT
7. INSPECT REAR AXLE HUB RUNOUT
