Personal Light Assembly
Personal Light Assembly
INSPECTION
1.
INSPECT PERSONAL LIGHT ASSEMBLY
a.

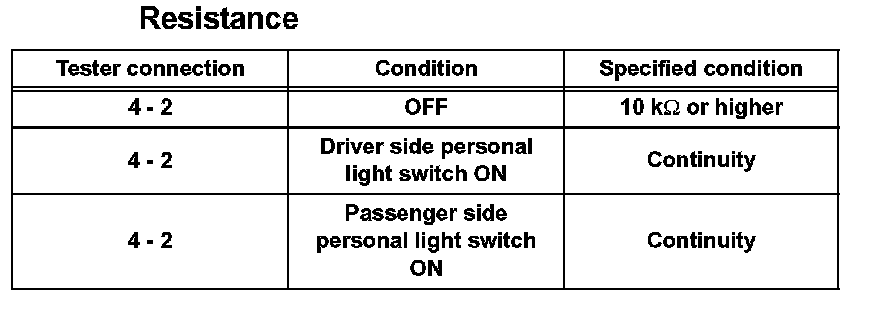

Measure the resistance according to the value(s) in the table.
