Light Control Switch Circuit
Light Control Switch CircuitDESCRIPTION
The combination switch ECU receives the informations of the light control switch, and sends them to each ECU via multiplex communication system.
Wiring Diagram:
INSPECTION PROCEDURE

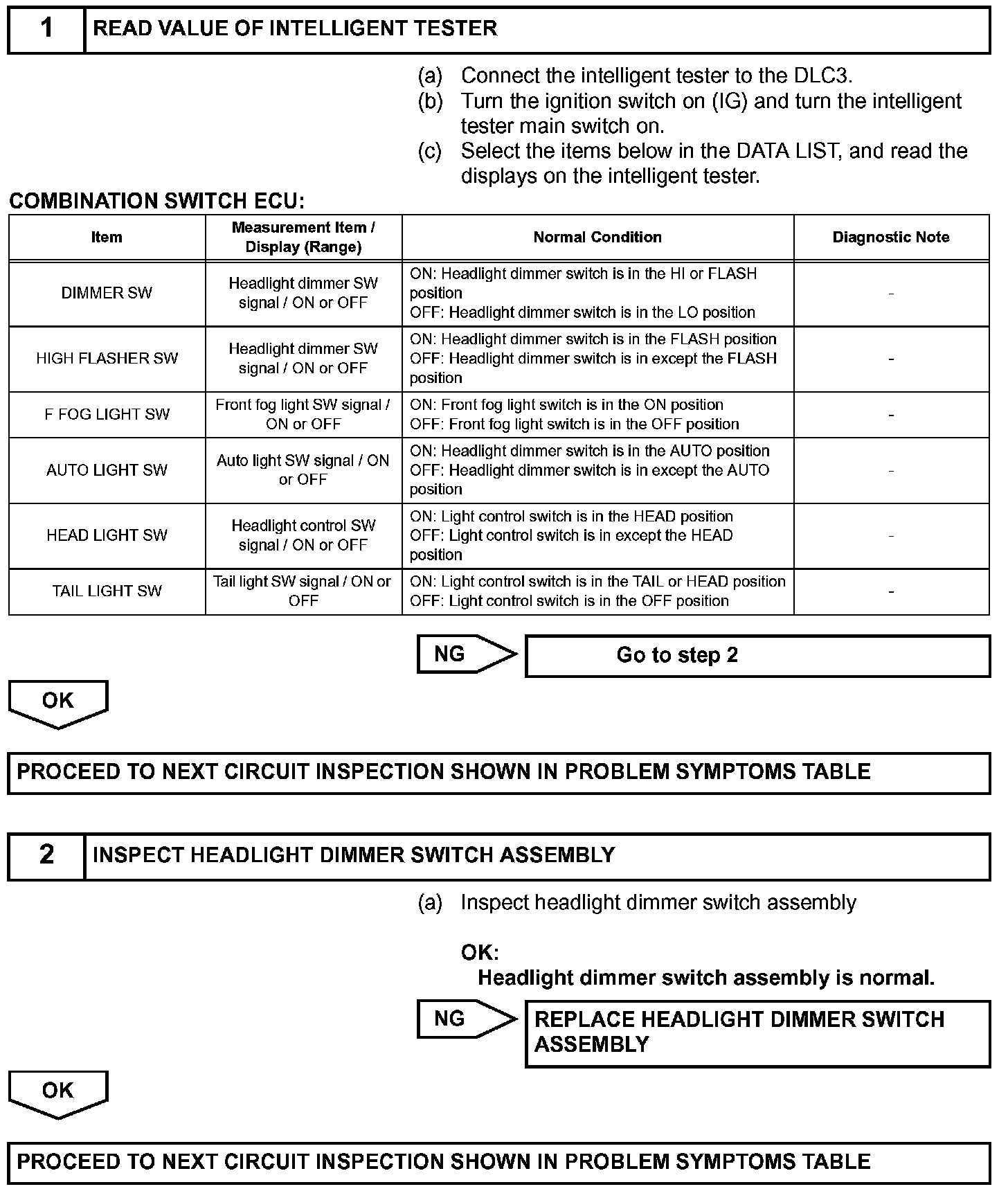

Step 1-2:
