LVL Terminal Circuit
LVL Terminal CircuitDESCRIPTION
Connecting terminals LVL and CG of the DLC3 initializes the height control sensor signal.

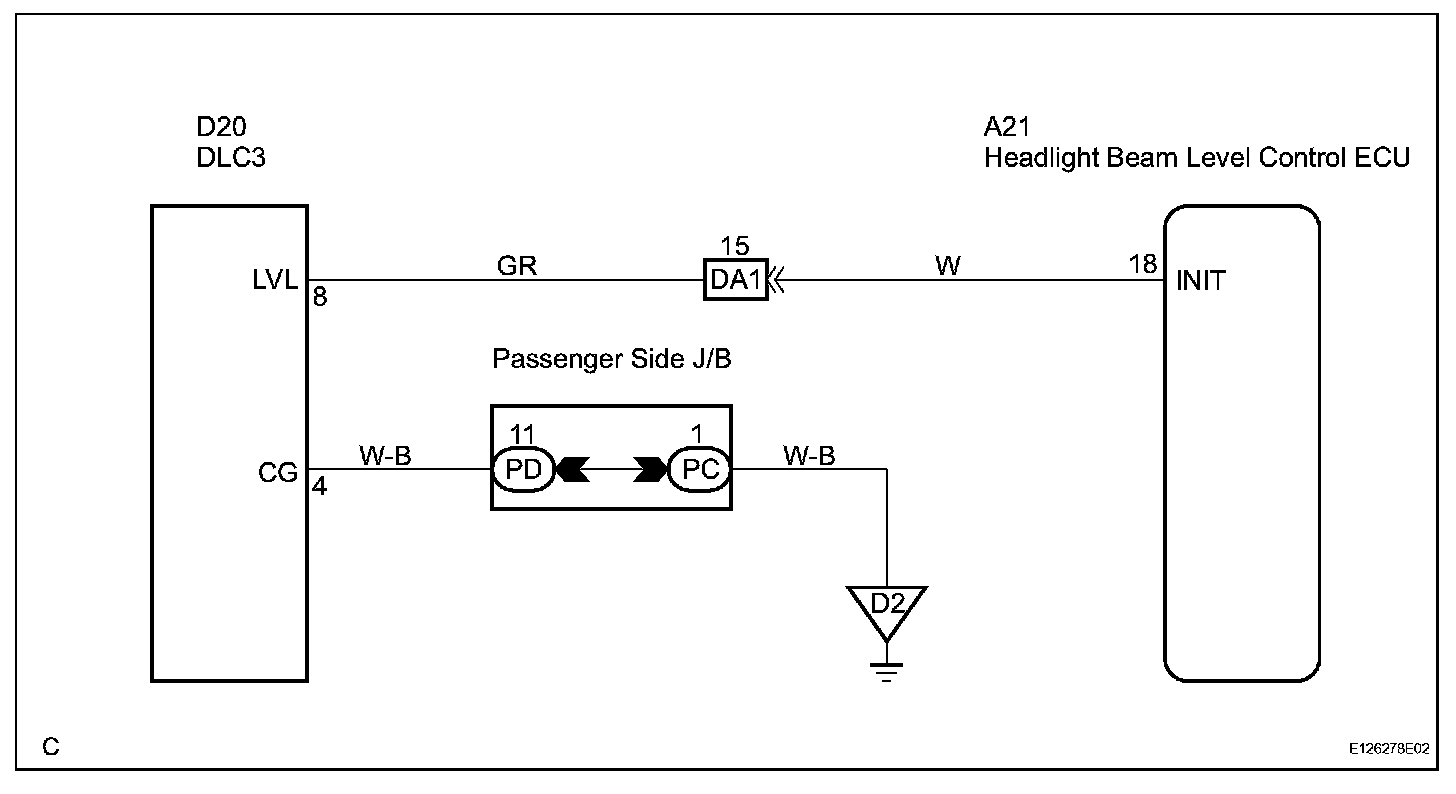

Wiring Diagram:
INSPECTION PROCEDURE

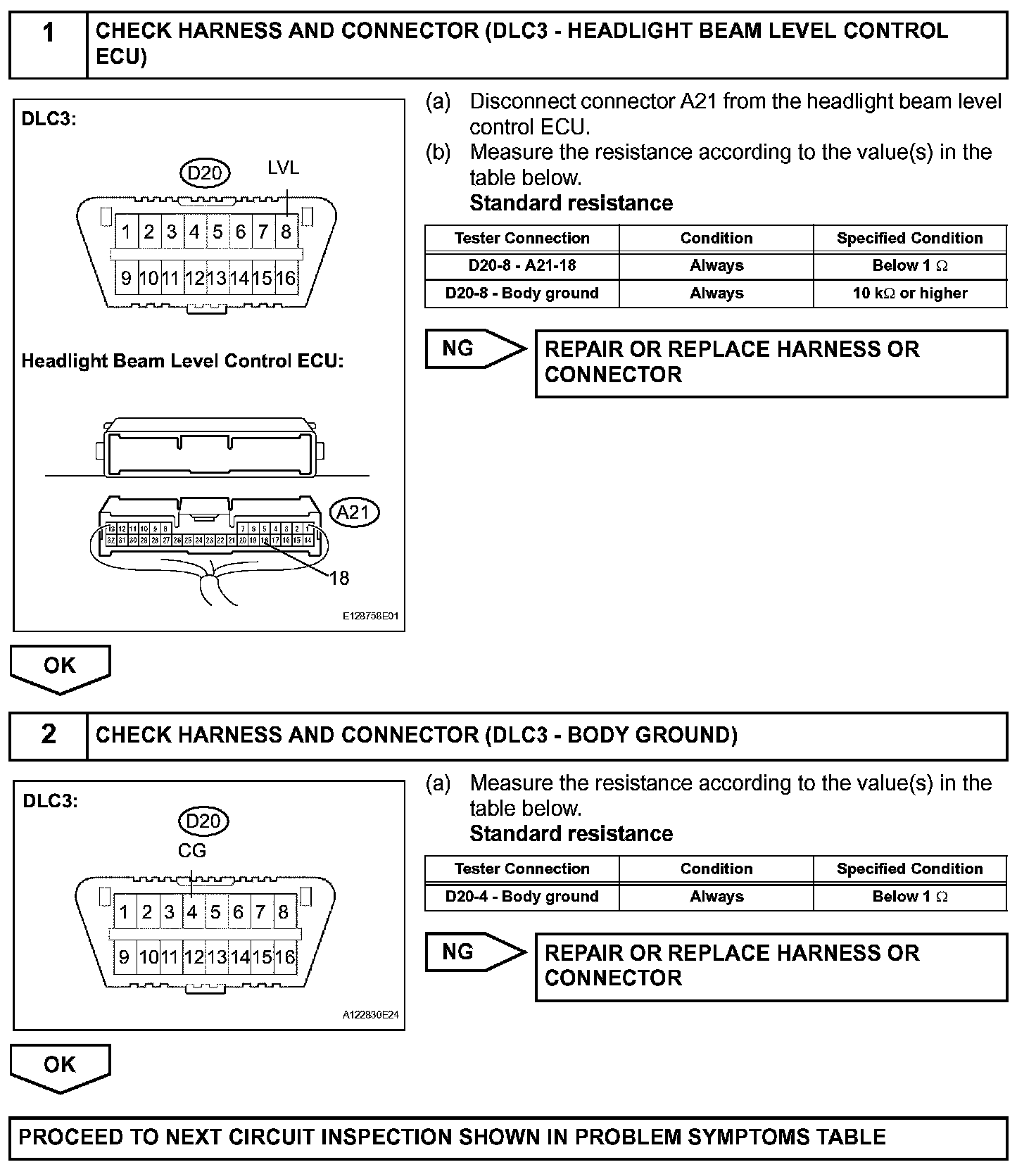

Step 1-2:
DESCRIPTION
Connecting terminals LVL and CG of the DLC3 initializes the height control sensor signal.
INSPECTION PROCEDURE
