Headlight Signal Circuit

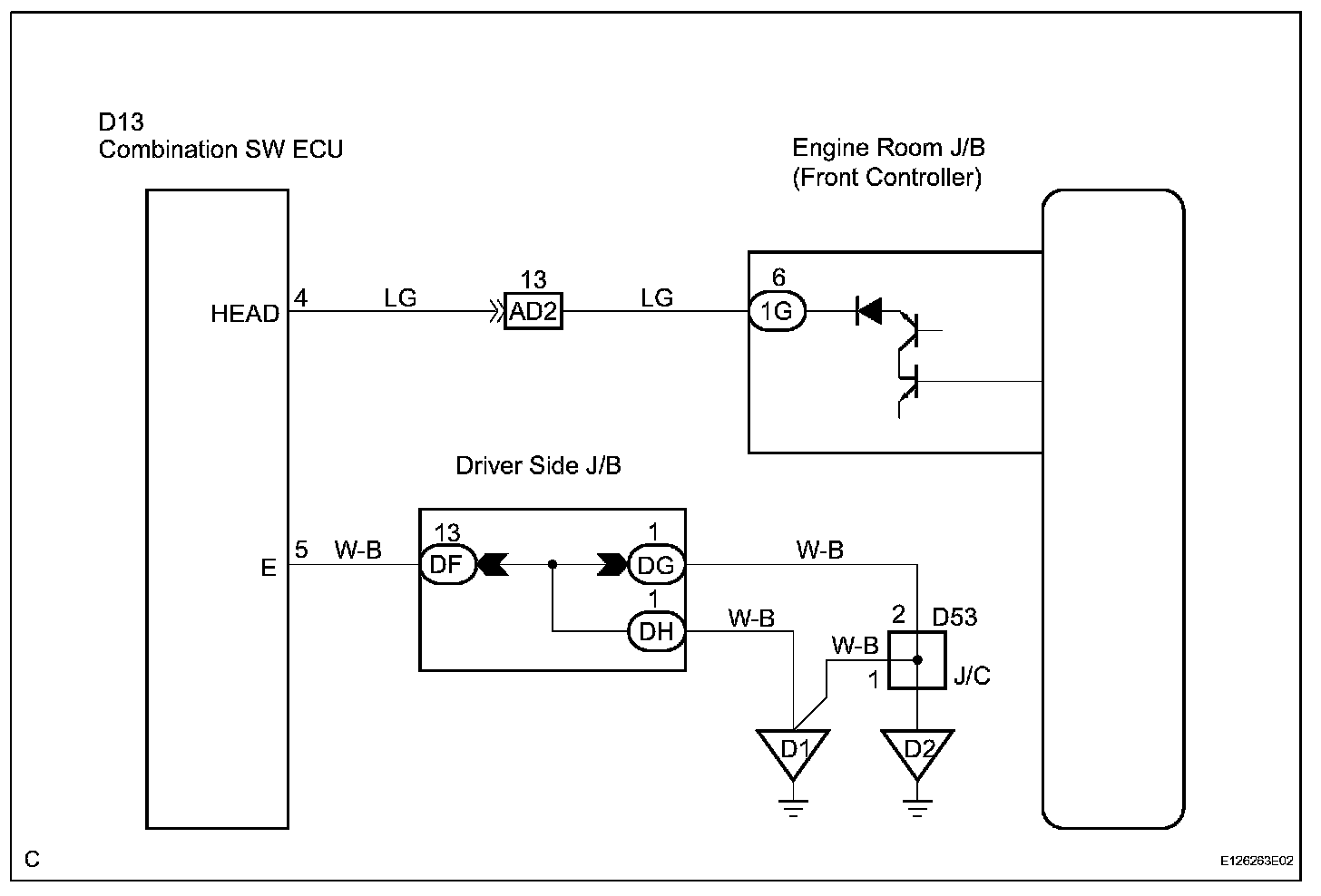

Headlight Signal CircuitDESCRIPTION
The front controller receives the HEAD position signal of the light control switch.
It also receives the signal from the combination SW ECU via multiplex communication system.
INSPECTION PROCEDURE

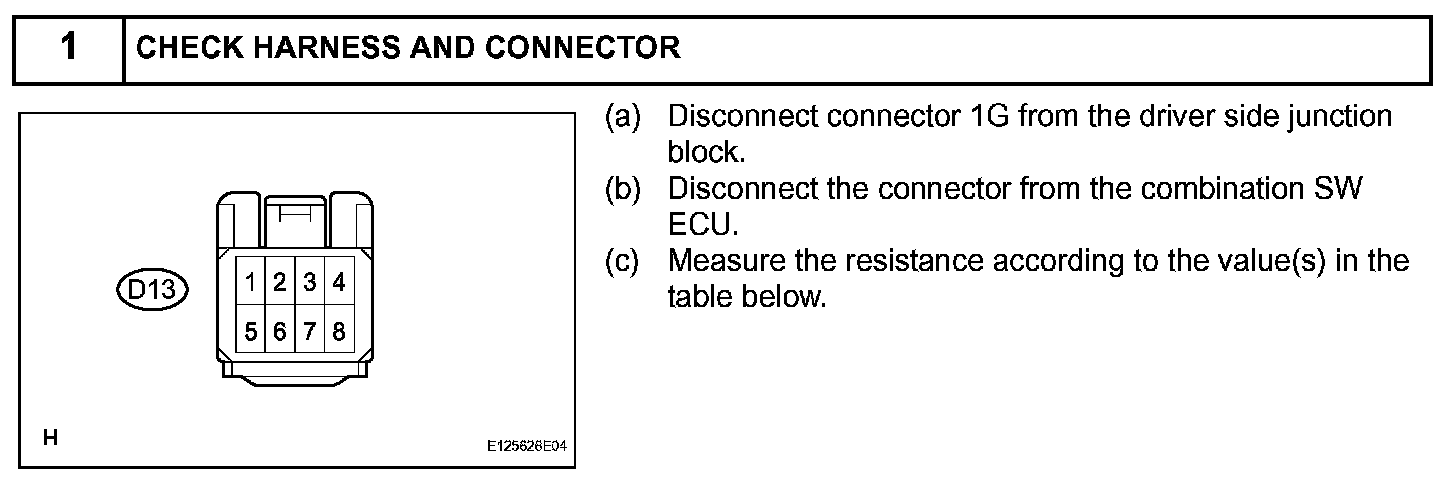

Step 1:
Step 1(Continued)-3:
