Headlight Relay Circuit
Headlight Relay CircuitDESCRIPTION
The front controller controls the HEAD relay when a signal is received from the headlight dimmer switch assembly.

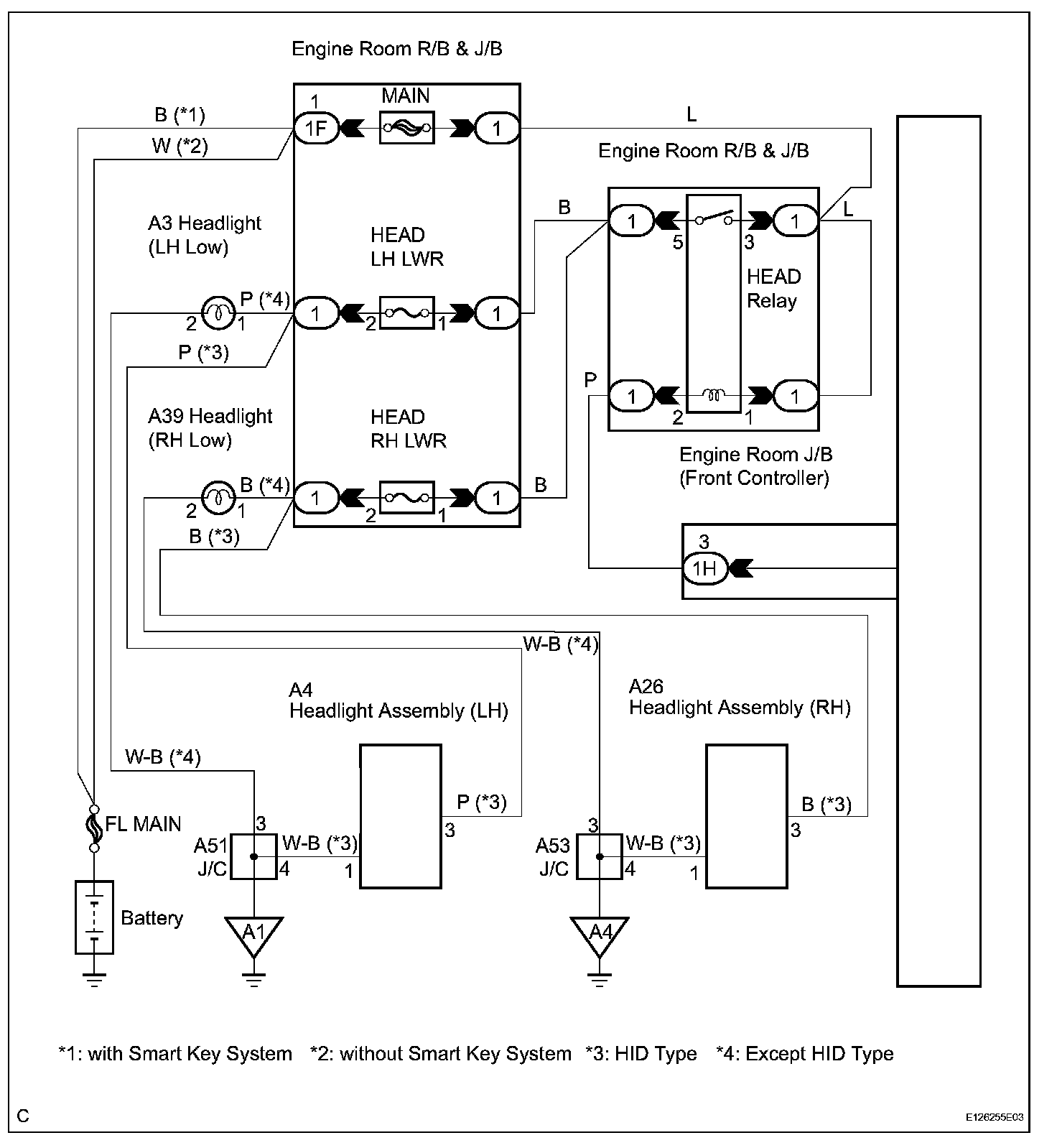

Wiring Diagram:
INSPECTION PROCEDURE

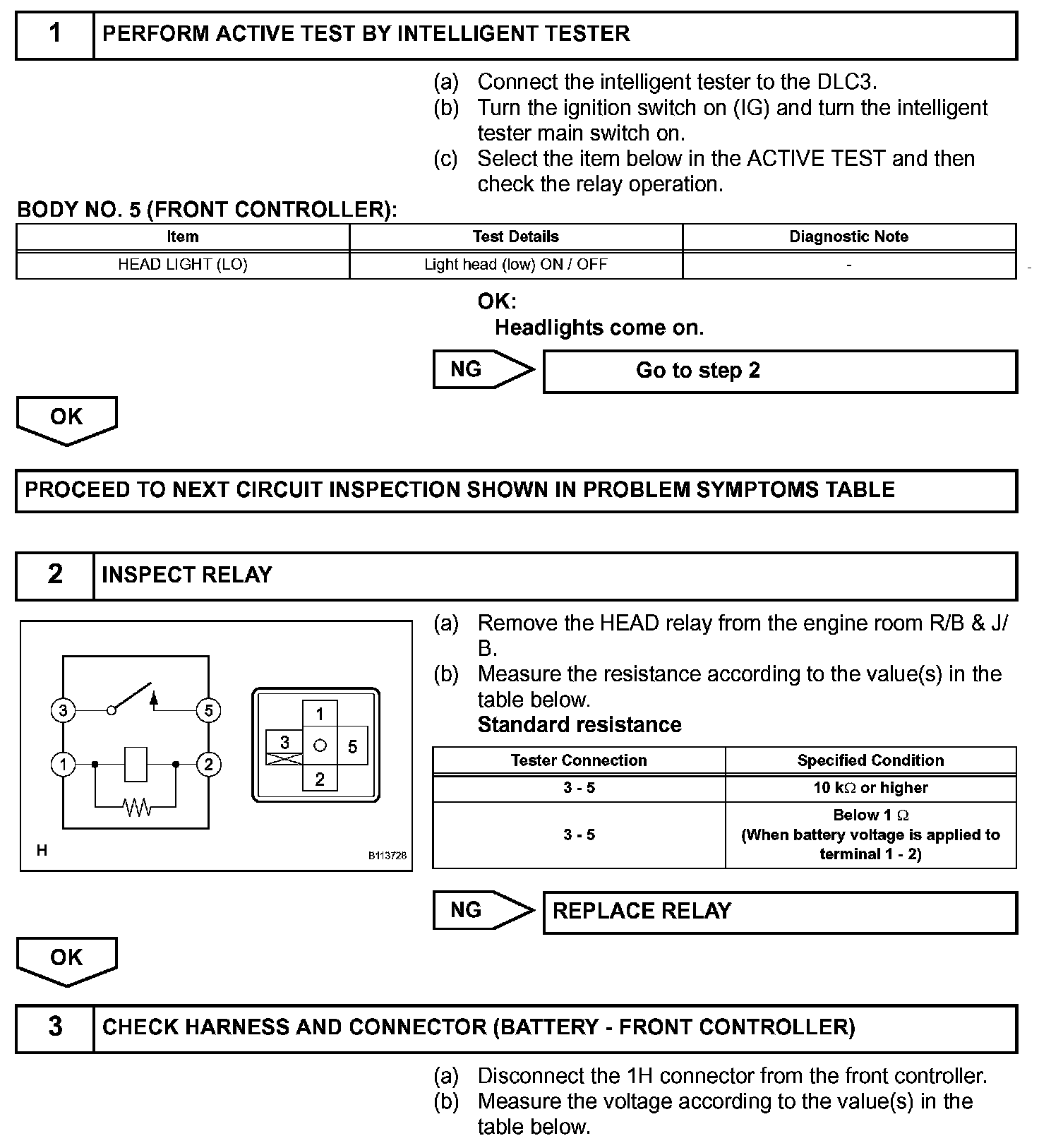

Step 1-3:

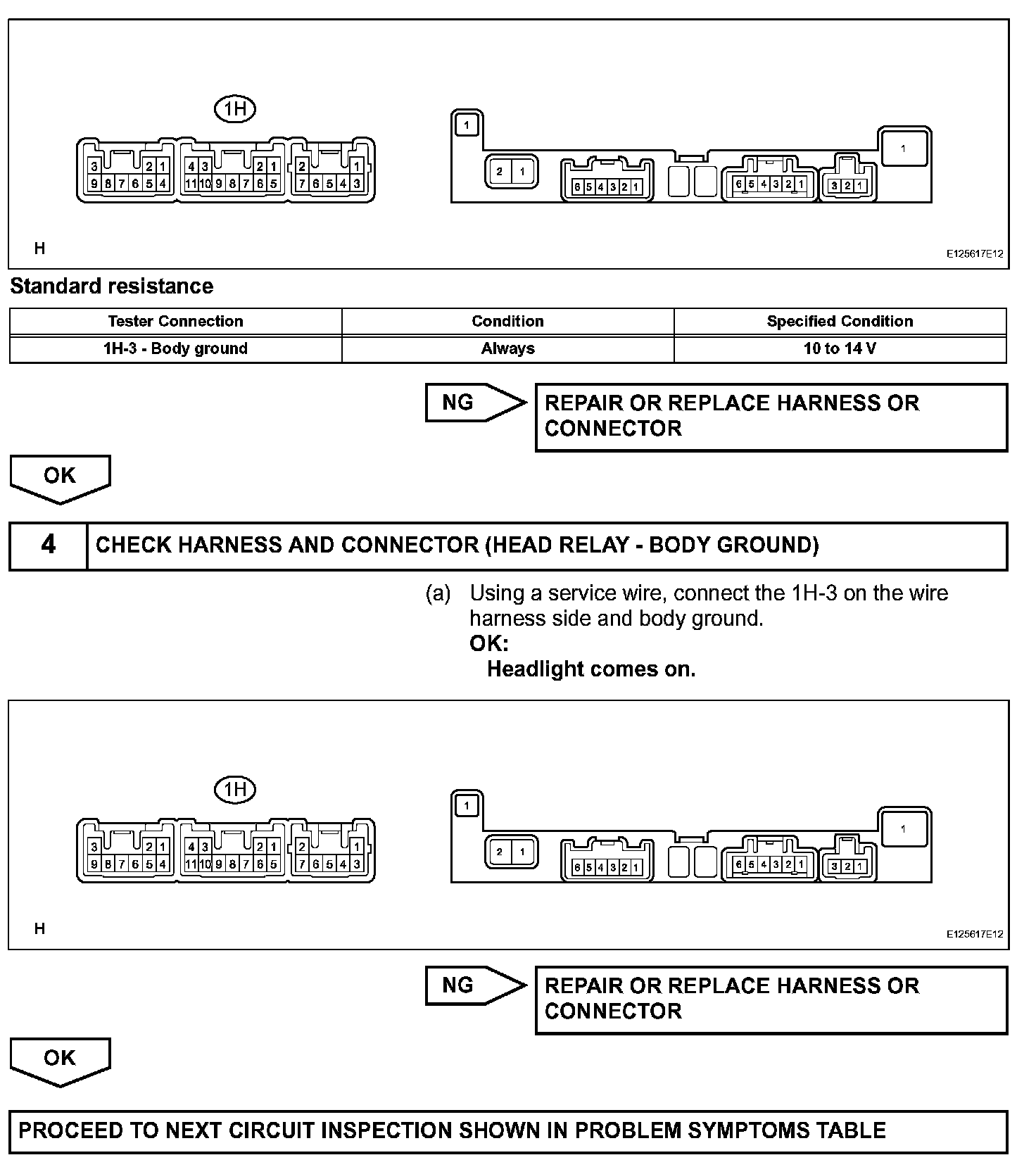

Step 3(Continued)-4:
DESCRIPTION
The front controller controls the HEAD relay when a signal is received from the headlight dimmer switch assembly.
INSPECTION PROCEDURE
