Headlight (HI-BEAM) Circuit

Headlight (HI-BEAM) Circuit

DESCRIPTION
The front controller receives headlight HI switch information from the combination switch, and turns on the headlights.

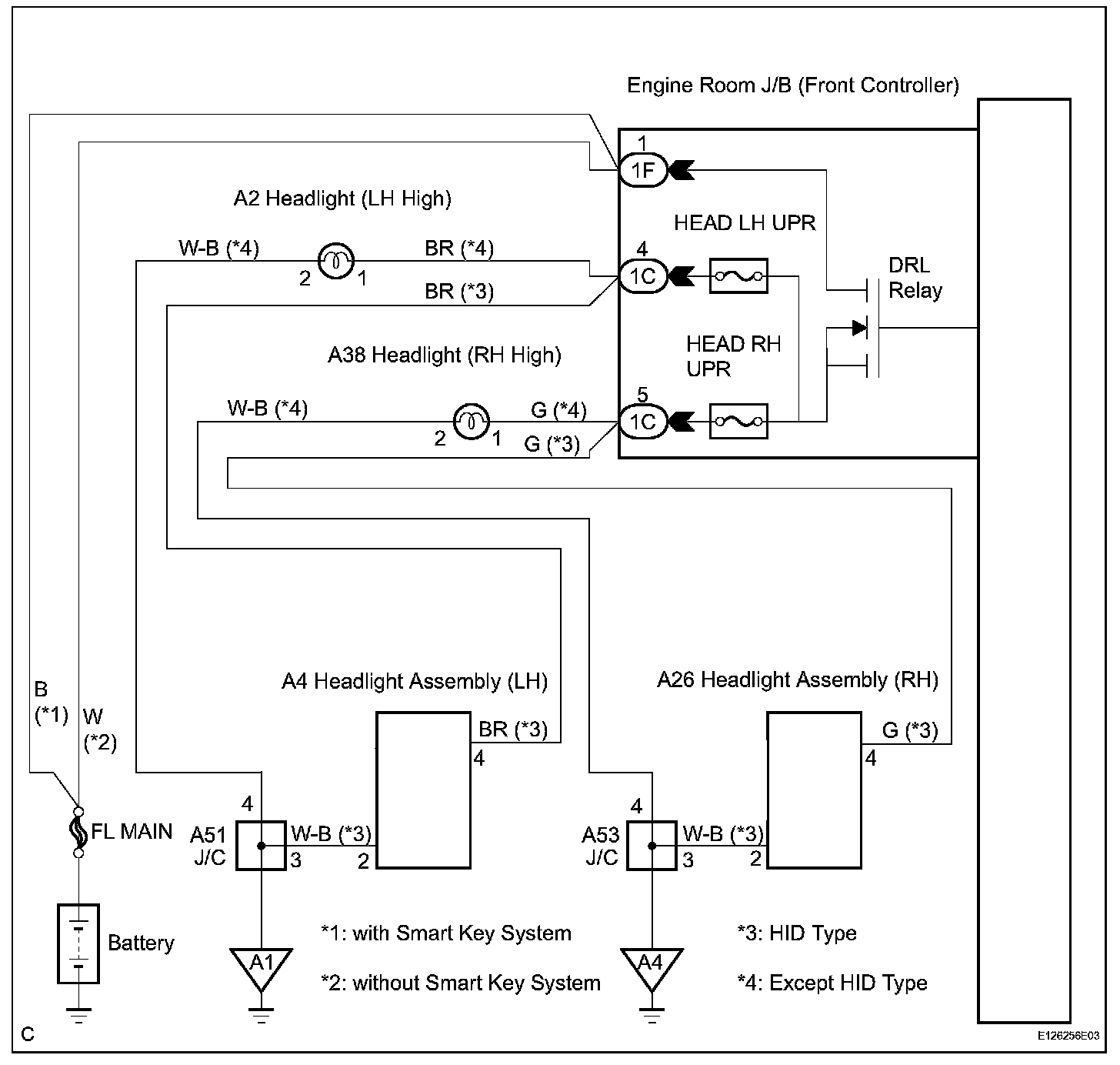

Wiring Diagram:





INSPECTION PROCEDURE

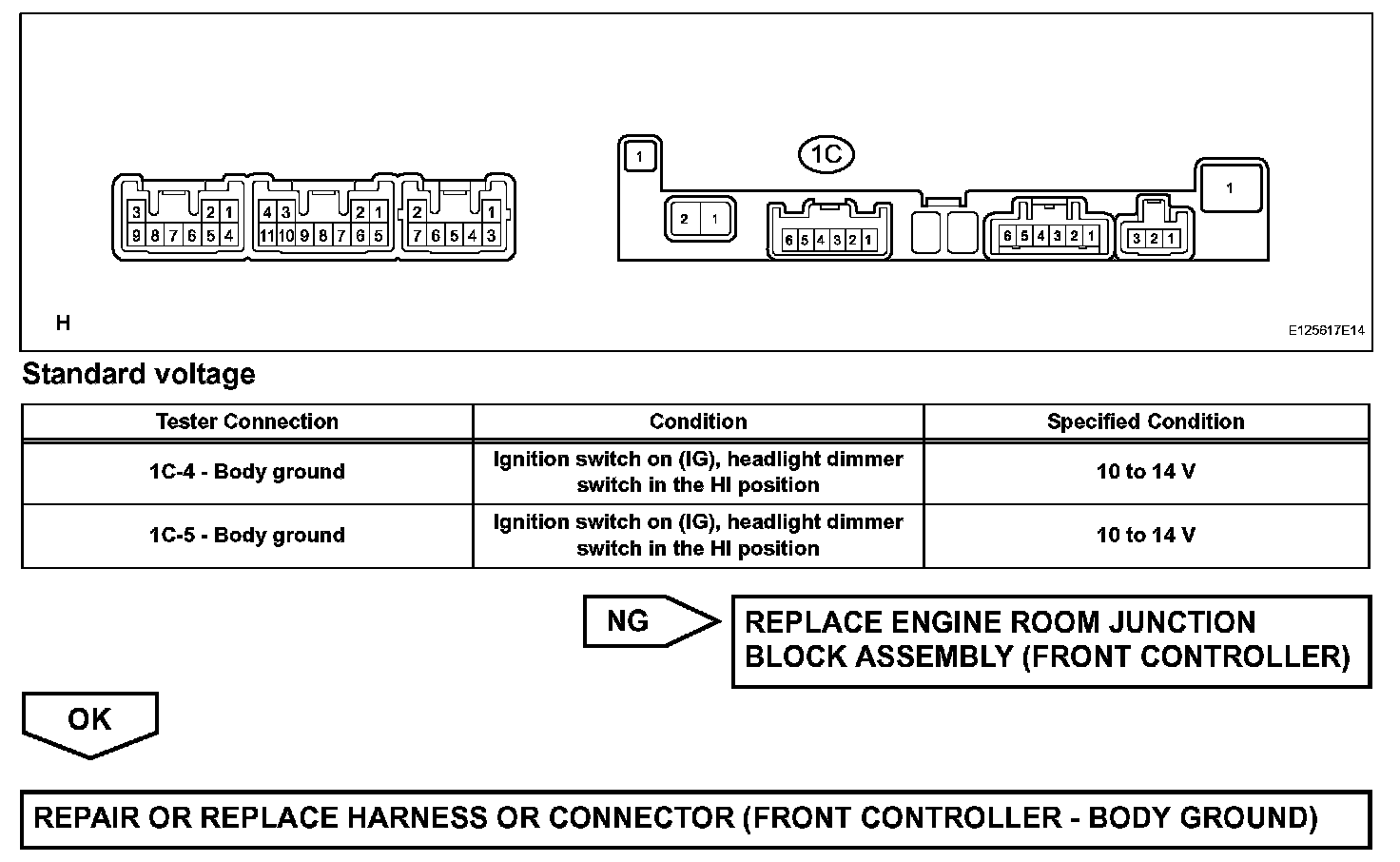

Step 1-3:




Step 3(Continued):
