Door Lock Position Circuit
Door LOCK Position CircuitDESCRIPTION
This circuit detects the state of the door lock detection sensor and sends it to the body ECU.
Wiring Diagram:
INSPECTION PROCEDURE

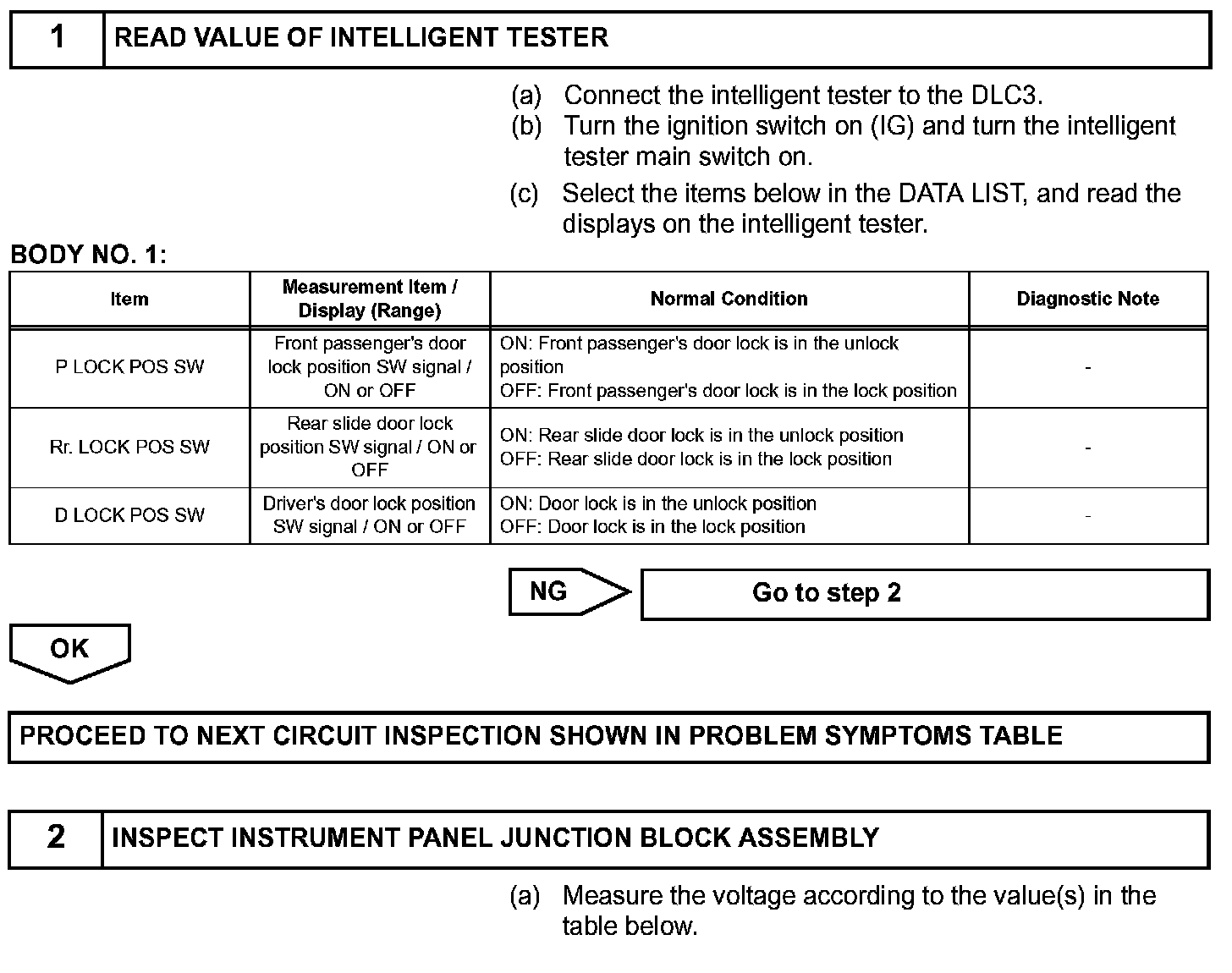

Step 1-2:

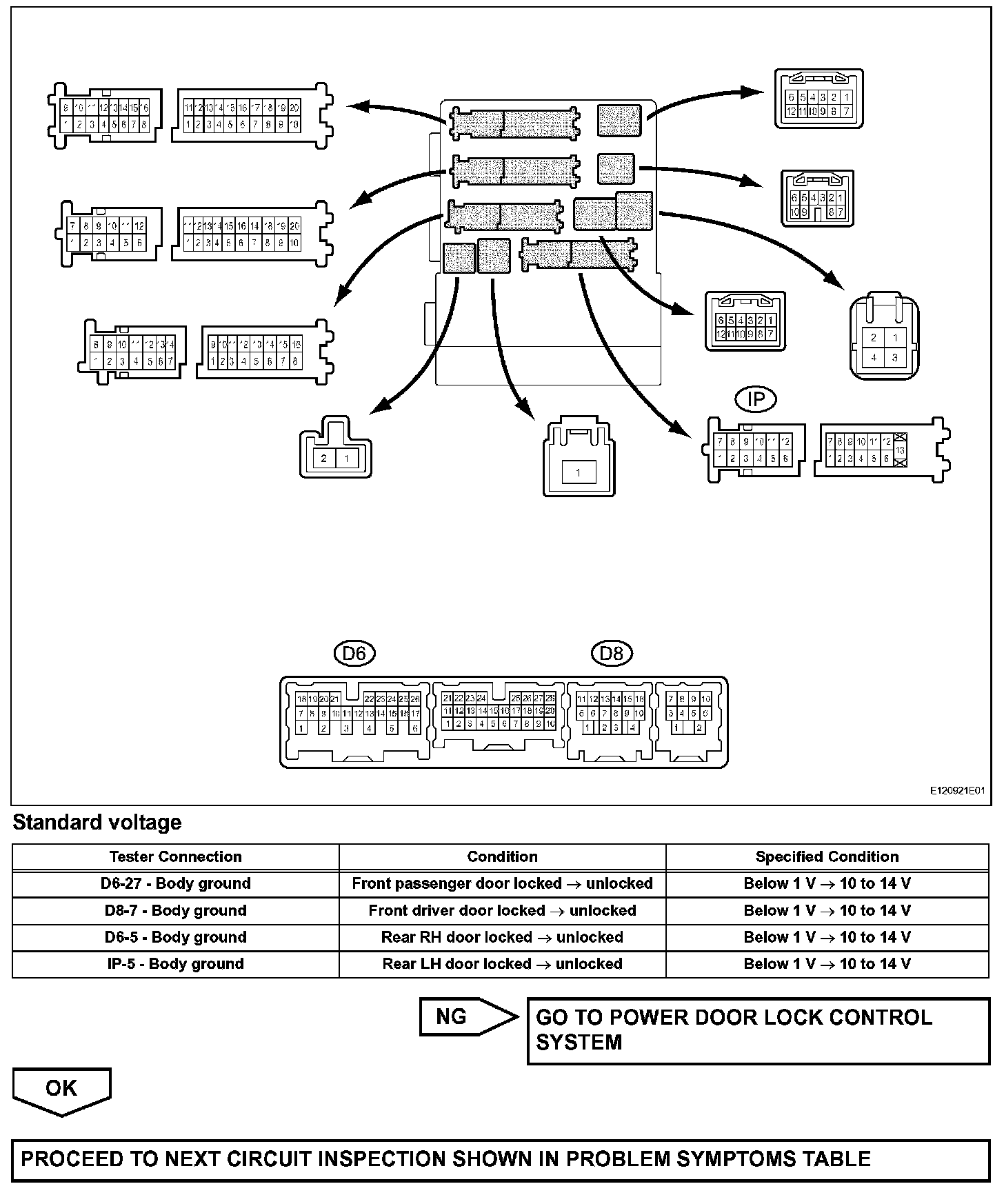

Step 4(Continued):
DESCRIPTION
This circuit detects the state of the door lock detection sensor and sends it to the body ECU.
INSPECTION PROCEDURE
