Door Courtesy Switch Circuit
Door Courtesy Switch CircuitDESCRIPTION
The body ECU detects the condition of the door courtesy switch assembly.

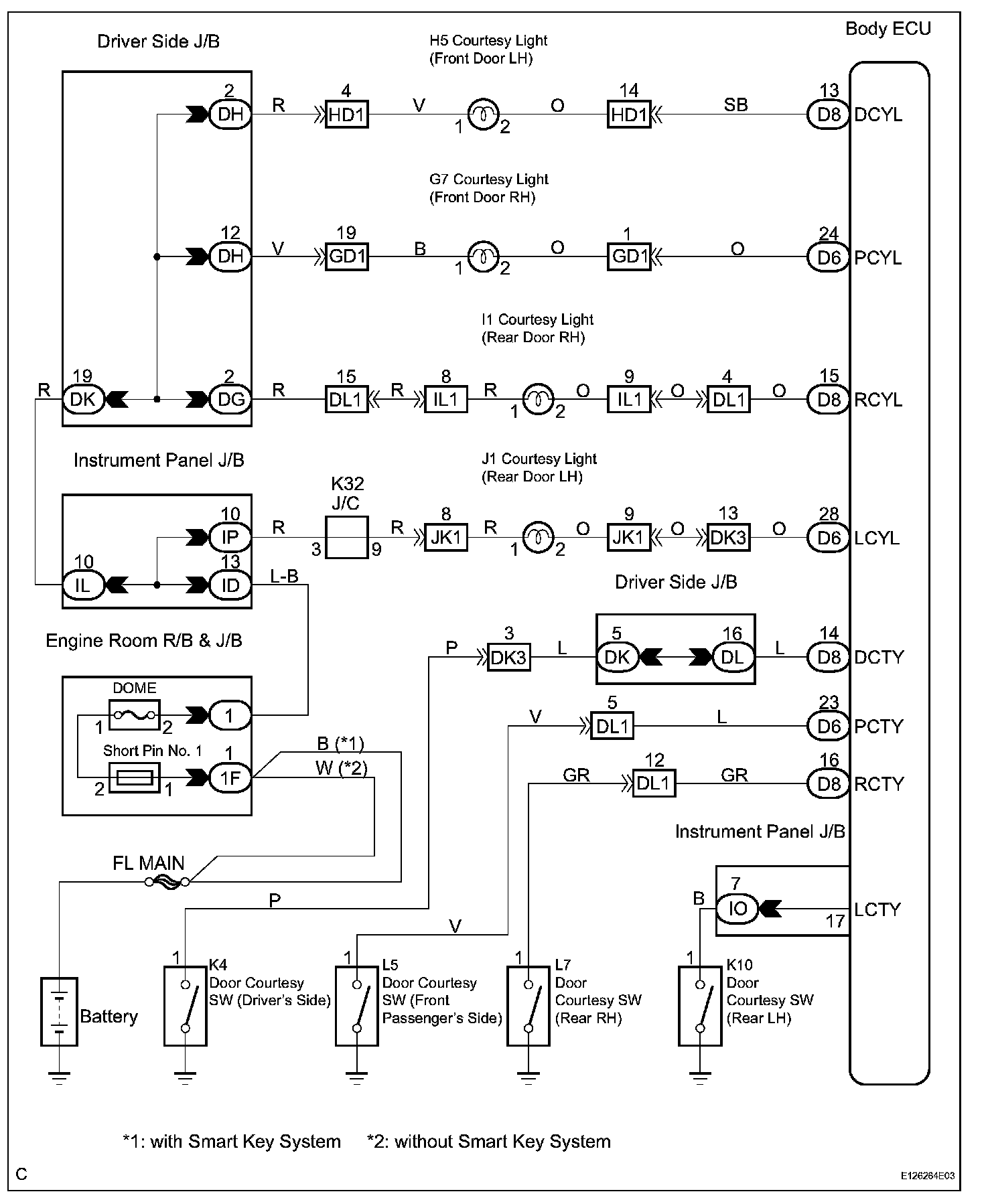

Wiring Diagram:
INSPECTION PROCEDURE
HINT: Start the inspection from step 1 when using the intelligent tester, and from step 2 when not using the intelligent tester.

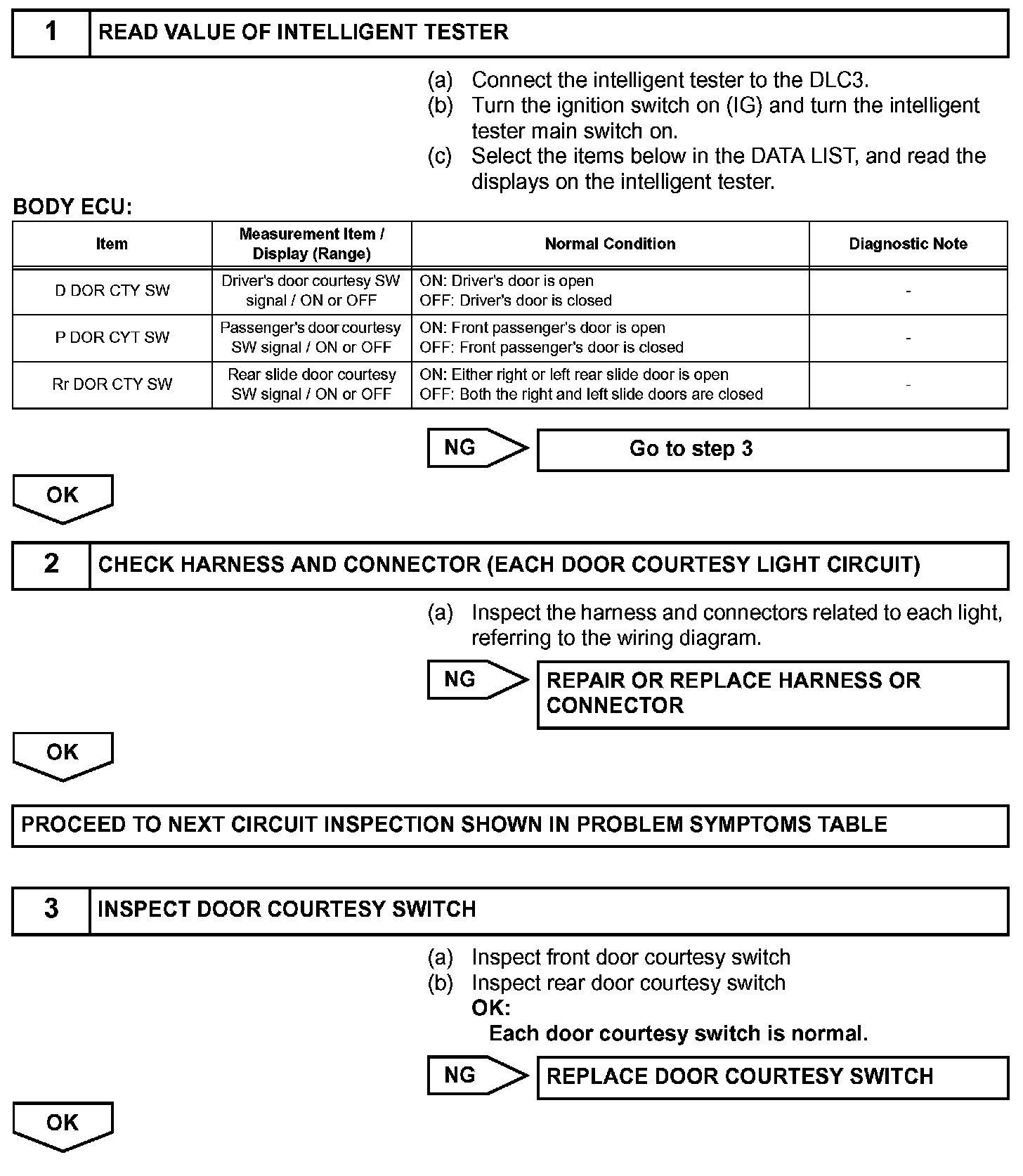

Step 1-3:

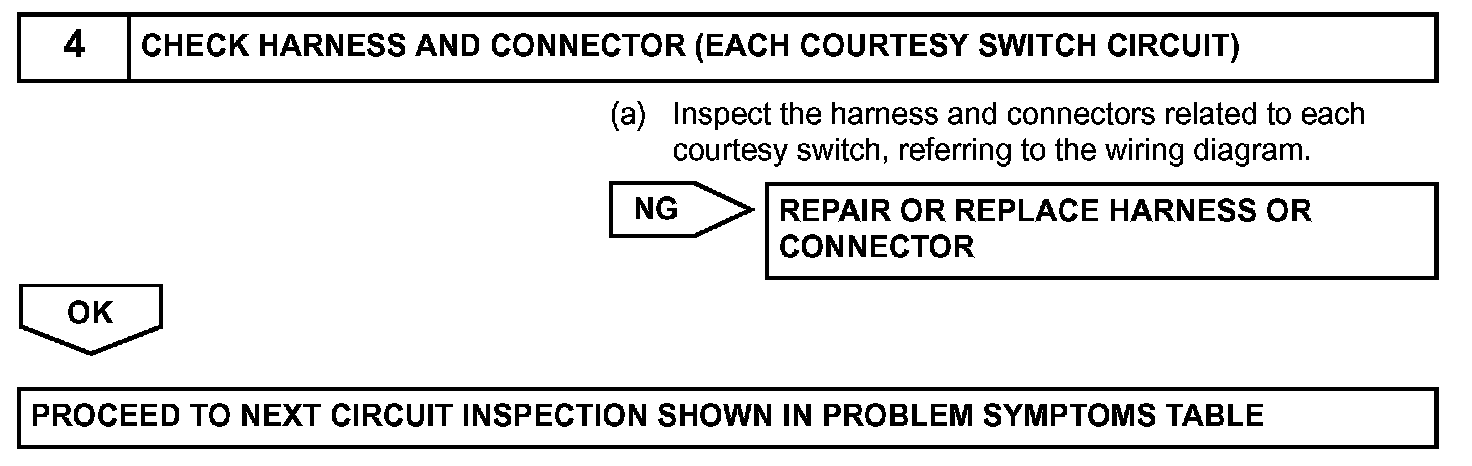

Step 4:
