Tail Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

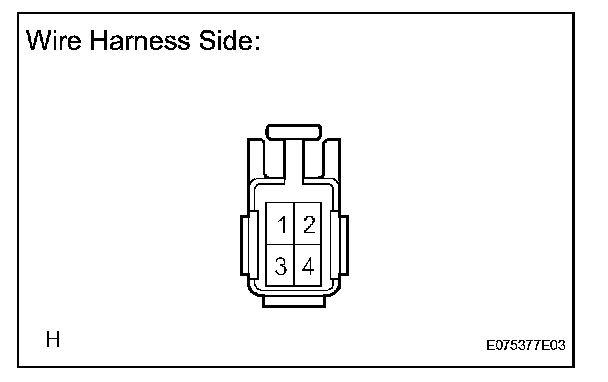

a. Connect the (+) lead from the voltmeter to terminal 2 and the (-) lead from the voltmeter to terminal 3.

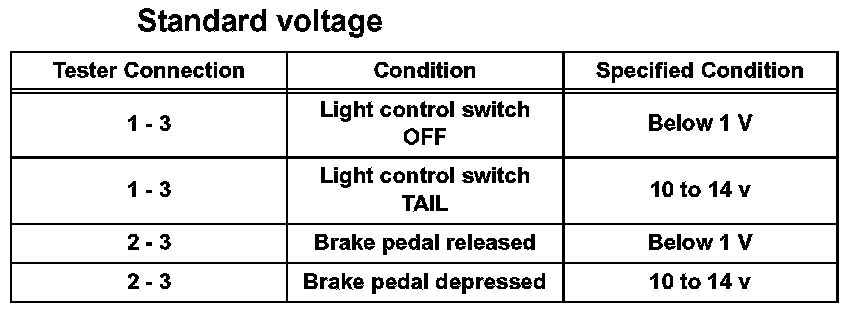

b. Measure the voltage according to the value(s) in the table.
