Cigarette Lighter: Service and Repair

Cigarette Lighter:

Cigarette Lighter:

Cigarette Lighter

REMOVAL

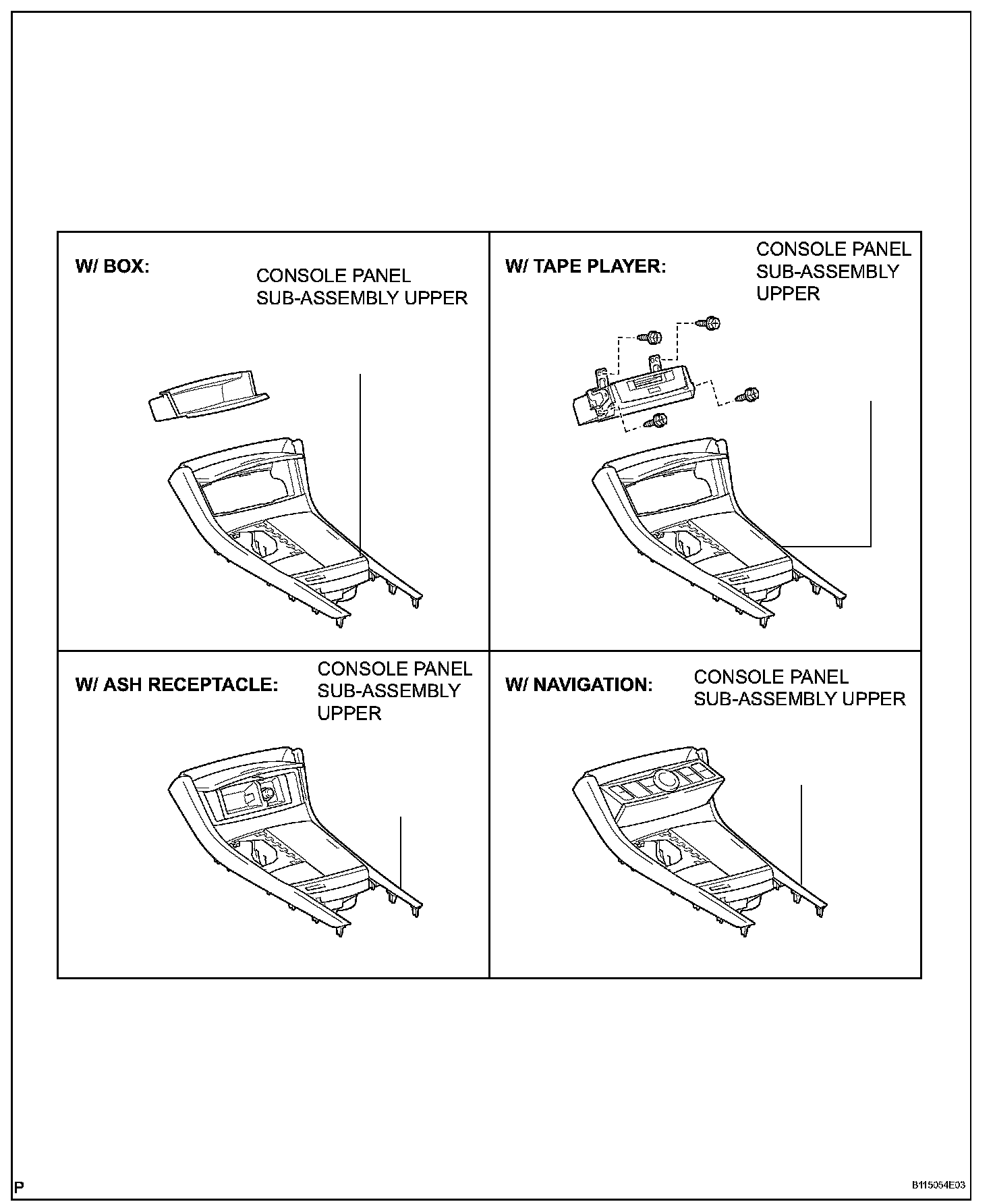

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER




2. REMOVE CIGARETTE LIGHTER ASSEMBLY

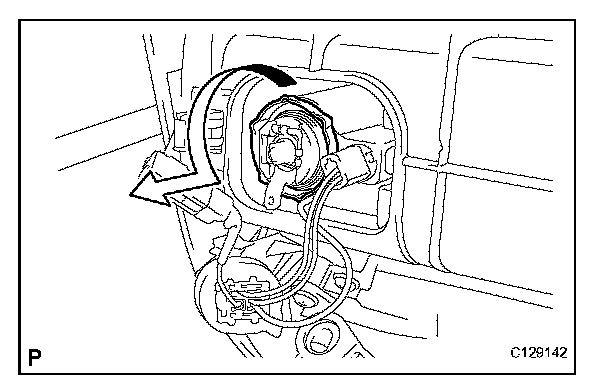

a. Remove the ring nut as shown in the illustration.

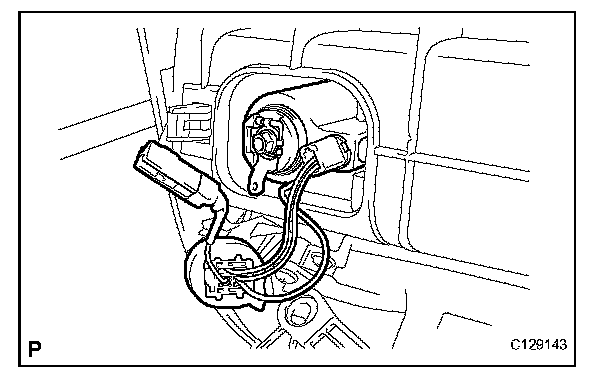

b. Remove cigarette lighter socket and remove the cigarette lighter assembly.

INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY
2. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
