Seat Heater Switch Indicator Circuit
Seat Heater Switch Indicator CircuitDESCRIPTION
Battery voltage is supplied to the seat heater switch through the S-HTR fuse. When the seat heater switch is turned on, the seat heater switch indicator comes on.

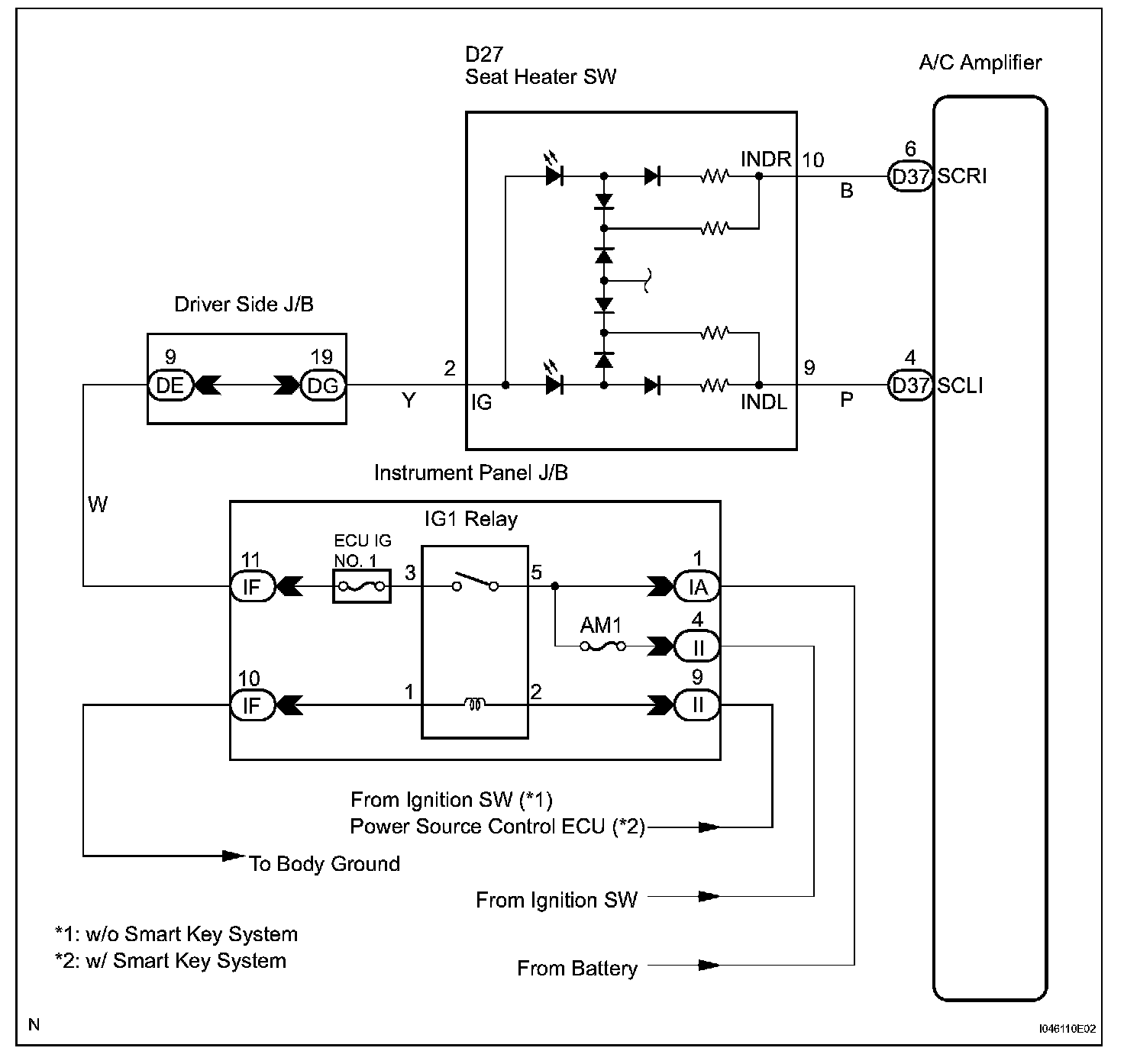

Wiring Diagram:
INSPECTION PROCEDURE

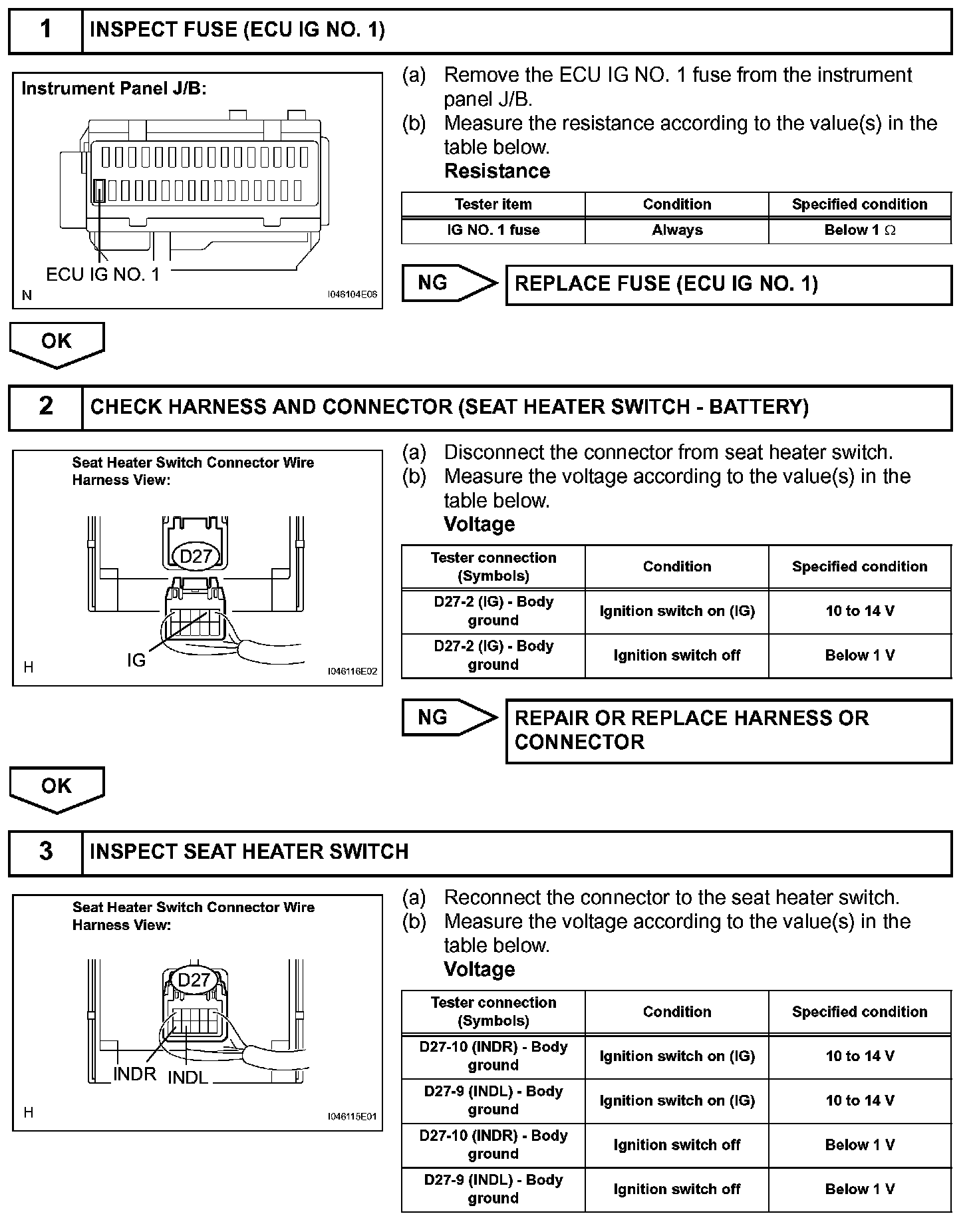

Step 1-3:

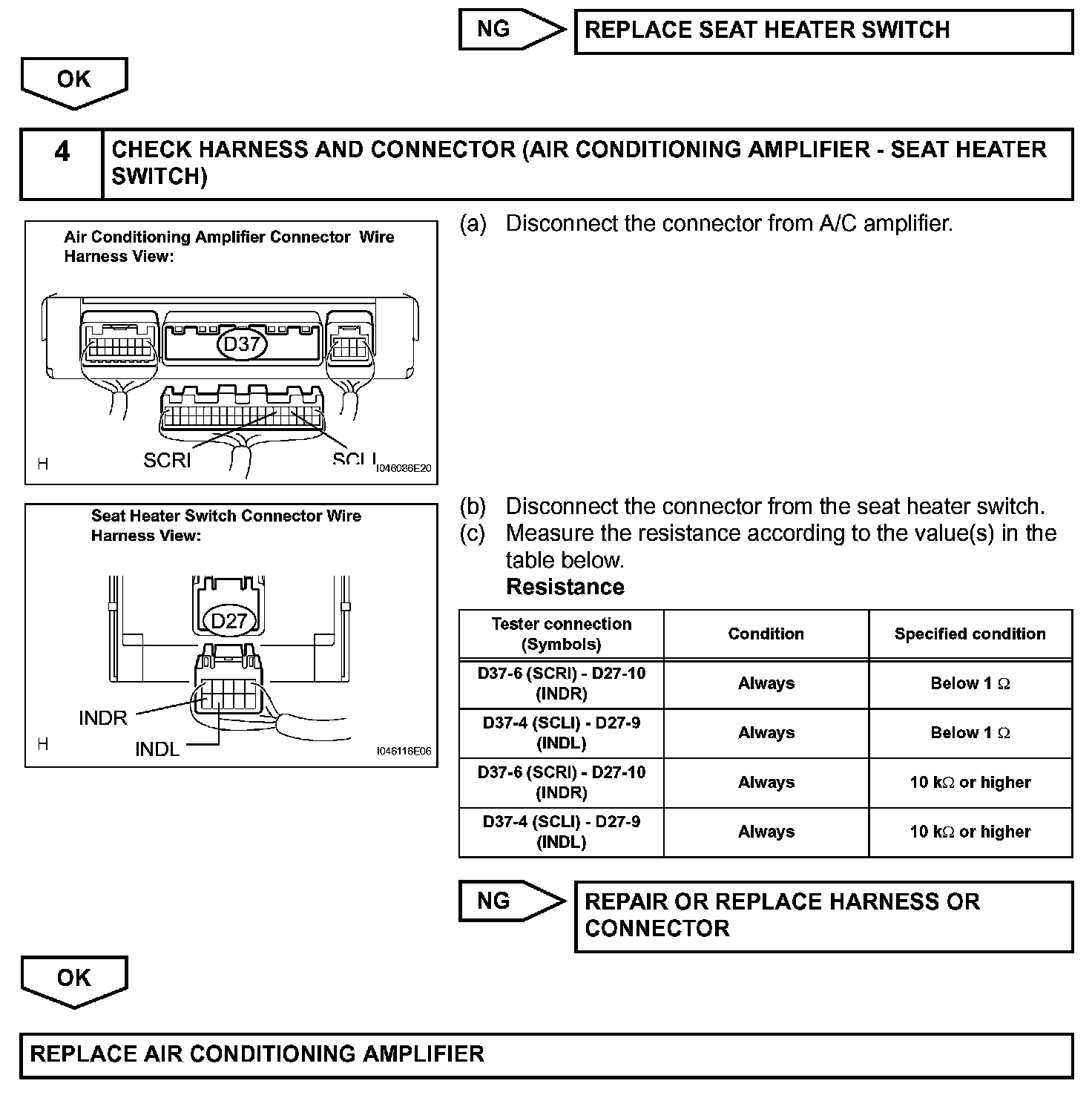

Step 3(Continued)-4:
