Blower Unit

Blower Unit:

Blower Unit:

BLOWER UNIT

REMOVAL

HINT:
- Installation is in the reverse order of removal.

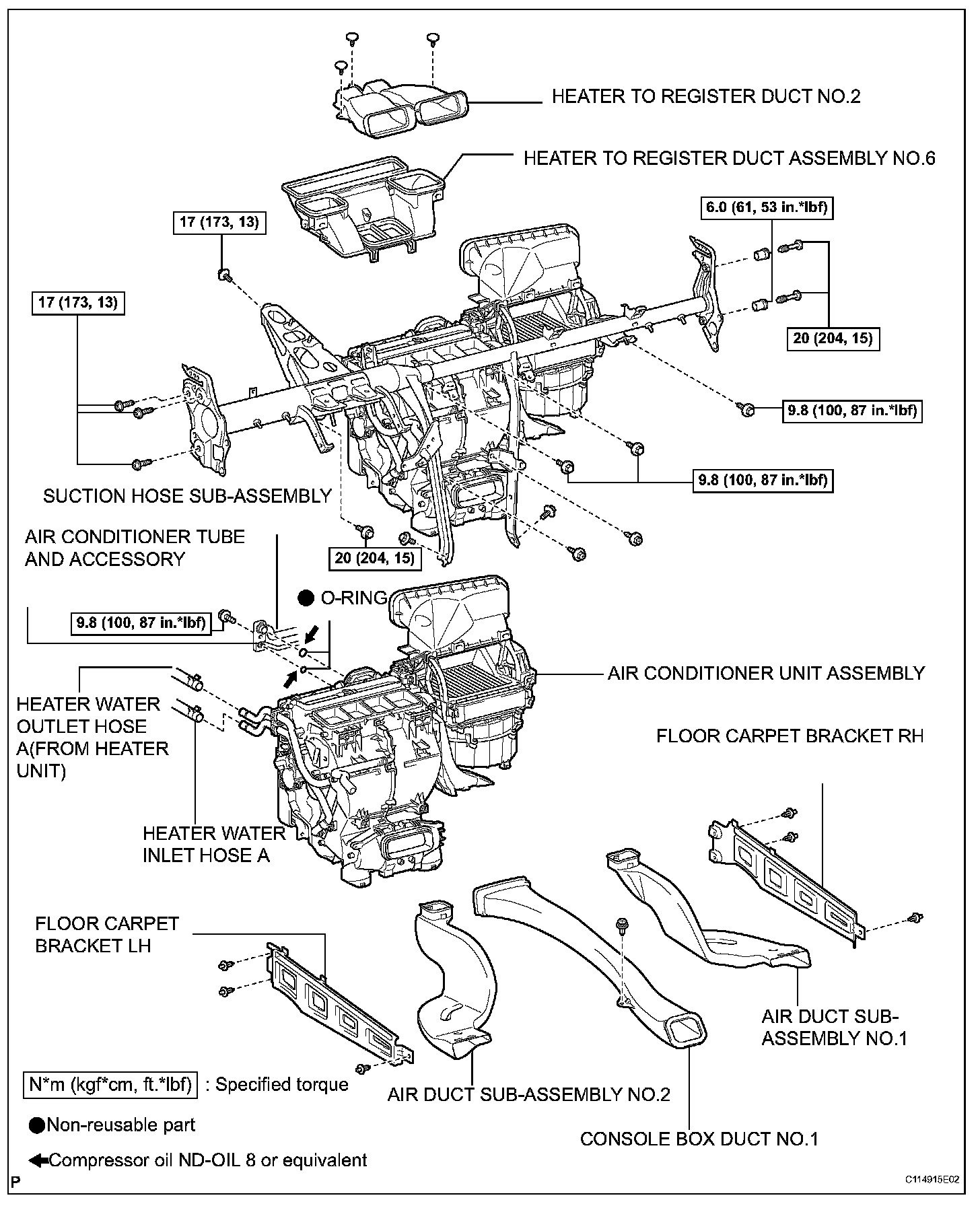

- COMPONENTS for instrument panel safety pad sub-assembly.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
a. Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
3. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
4. REMOVE COWL TOP VENTILATOR LOUVER RH
5. REMOVE WINDSHIELD WIPER MOTOR AND LINK
6. REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY
7. DISCHARGE FROM REFRIGERATION SYSTEM
8. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
9. DISCONNECT AIR CONDITIONER TUBE AND ACCESSORY
10. DISCONNECT HEATER WATER OUTLET HOSE A(FROM HEATER UNIT)
11. DISCONNECT HEATER WATER INLET HOSE A
12. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
13. REMOVE AIR DUCT SUB-ASSEMBLY NO.1
14. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
15. REMOVE STEERING COLUMN ASSEMBLY
16. REMOVE HEATER TO REGISTER DUCT NO.2
17. REMOVE HEATER TO REGISTER DUCT ASSEMBLY NO.6
18. REMOVE CONSOLE BOX DUCT NO.1
19. REMOVE FLOOR CARPET BRACKET LH
20. REMOVE FLOOR CARPET BRACKET RH
21. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
22. REMOVE AIR DUCT SUB-ASSEMBLY NO.2

23. REMOVE BLOWER ASSEMBLY

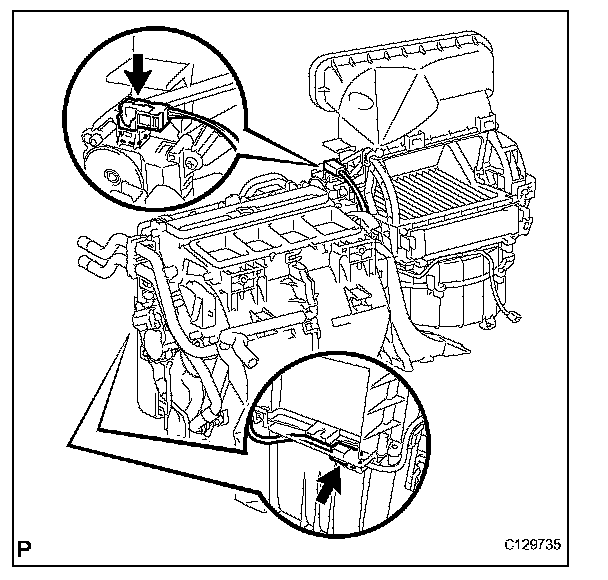

a. Remove the connector and clamp, and disconnect the wire harness.

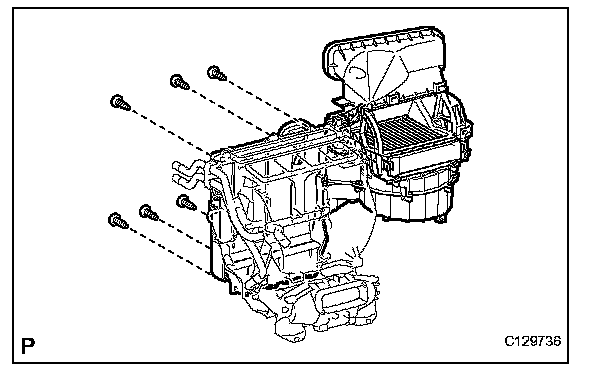

b. Remove the 6 screws and then the blower assembly with the cooler evaporator sub-assembly.

INSTALLATION

1. INSTALL BLOWER ASSEMBLY




a. Install the blower assembly with the 6 screws.

2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
4. INSTALL STEERING COLUMN ASSEMBLY
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
6. INSTALL AIR CONDITIONER TUBE AND ACCESSORY
7. INSTALL SUCTION HOSE SUB-ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL

9. PERFORM SYSTEM INITIALIZE
a. Some systems need initialization when disconnecting the cable from the negative battery terminal.

10. ADD ENGINE COOLANT
11. CHECK FOR ENGINE COOLANT LEAKS
12. CHARGE REFRIGERANT
13. WARM UP ENGINE
14. INSPECT FOR REFRIGERANT LEAK
15. INSTALL WINDSHIELD WIPER MOTOR AND LINK
16. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
17. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
