Home
>>
Toyota
>>
2007
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Dynamic Laser Cruise Control System
>>
Displaying & Reading Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
CHECK DTC
a.

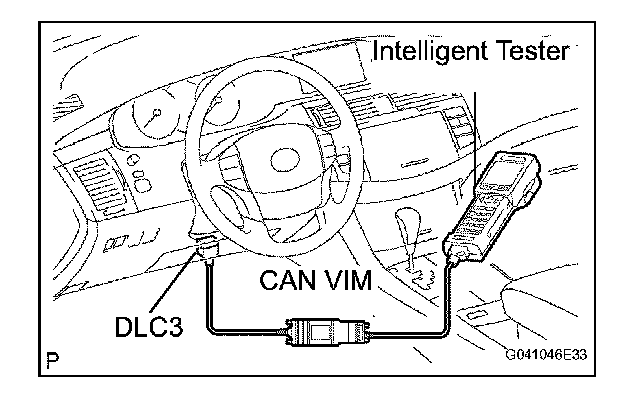

Connect the intelligent tester to the DLC3.
b.
Turn the ignition switch on (IG).
c.
Read the DTCs by given the prompts on the tester screen.
