Dynamic Laser Cruise Control System

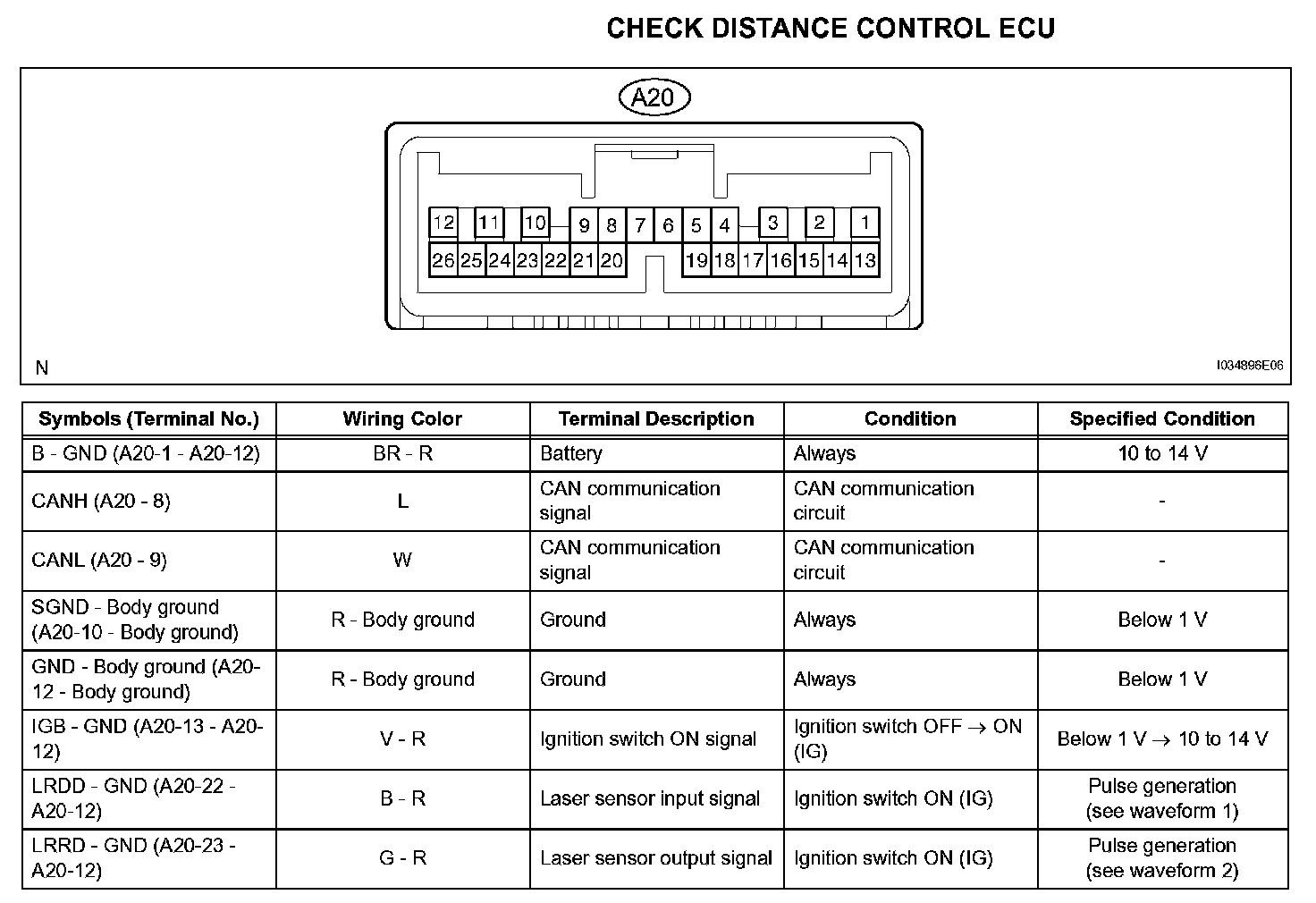

Terminals Of Control Module/Pinouts:



Oscilloscope Waveforms:

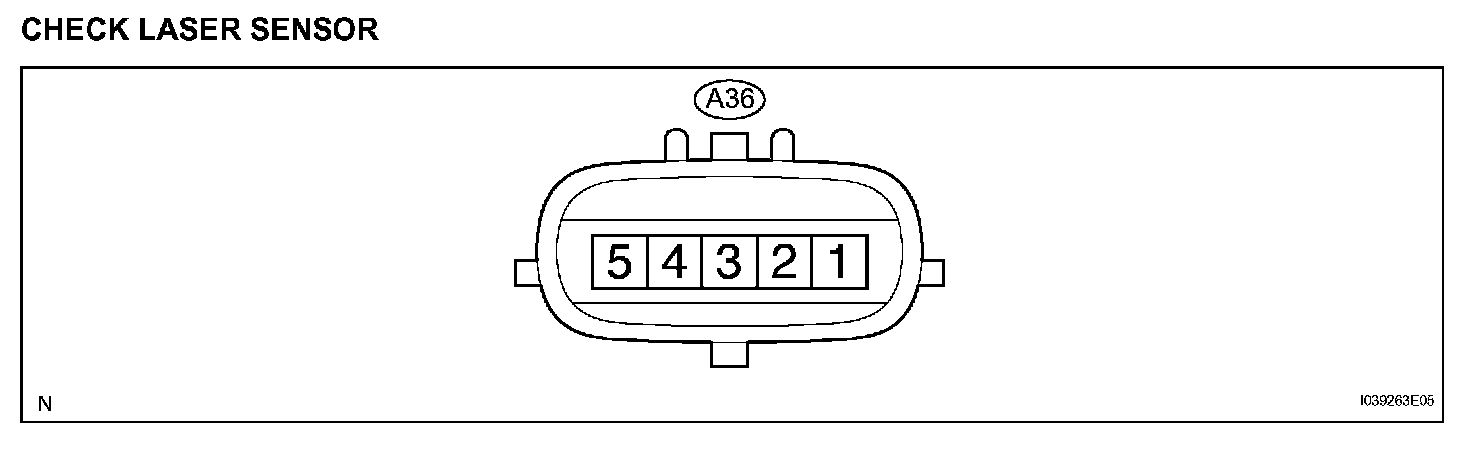

Terminals Of Control Module/Pinouts:



Terminals Of Control Module/Pinouts (Part 1):



Terminals Of Control Module/Pinouts (Part 2):



Oscilloscope Waveforms:
