Rear Speed Sensor

INSPECTION

1. INSPECT REAR SPEED SENSOR







a. Disconnect the rear speed sensor connector.

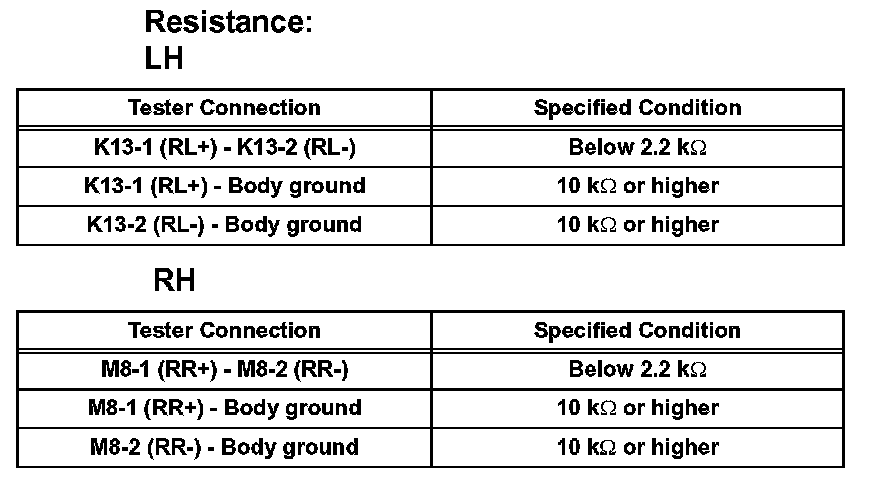

b. Measure the resistance according to the value(s) in the table.
