VSC Warning Light Remains ON

VSC Warning Light Remain ON

DESCRIPTION

If the ECU stores DTC, the VSC warning light comes on in the combination meter.
The skid control ECU is connected to the combination meter via CAN and Multiplex communications.

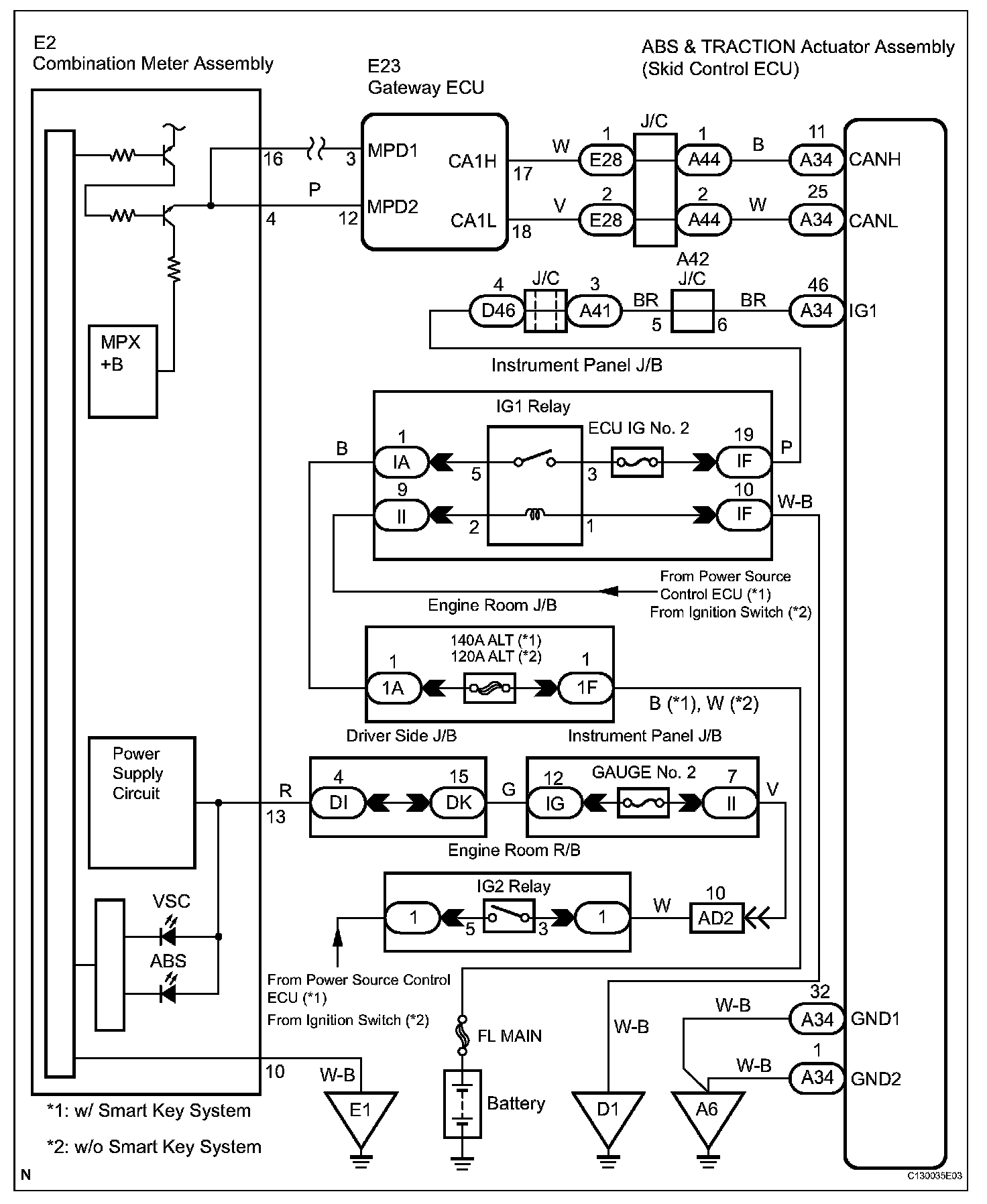

Wiring Diagram:

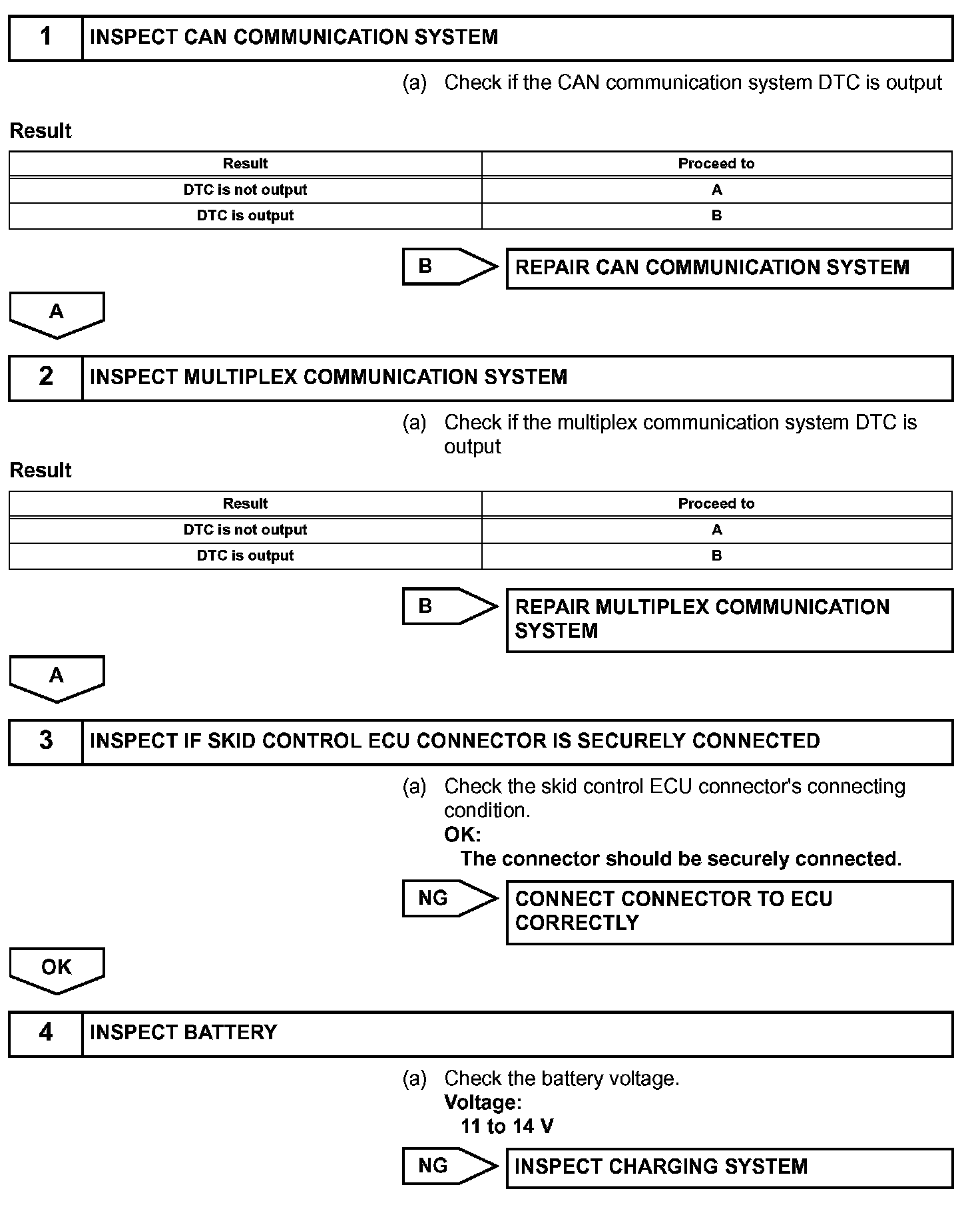

Step 1-4:

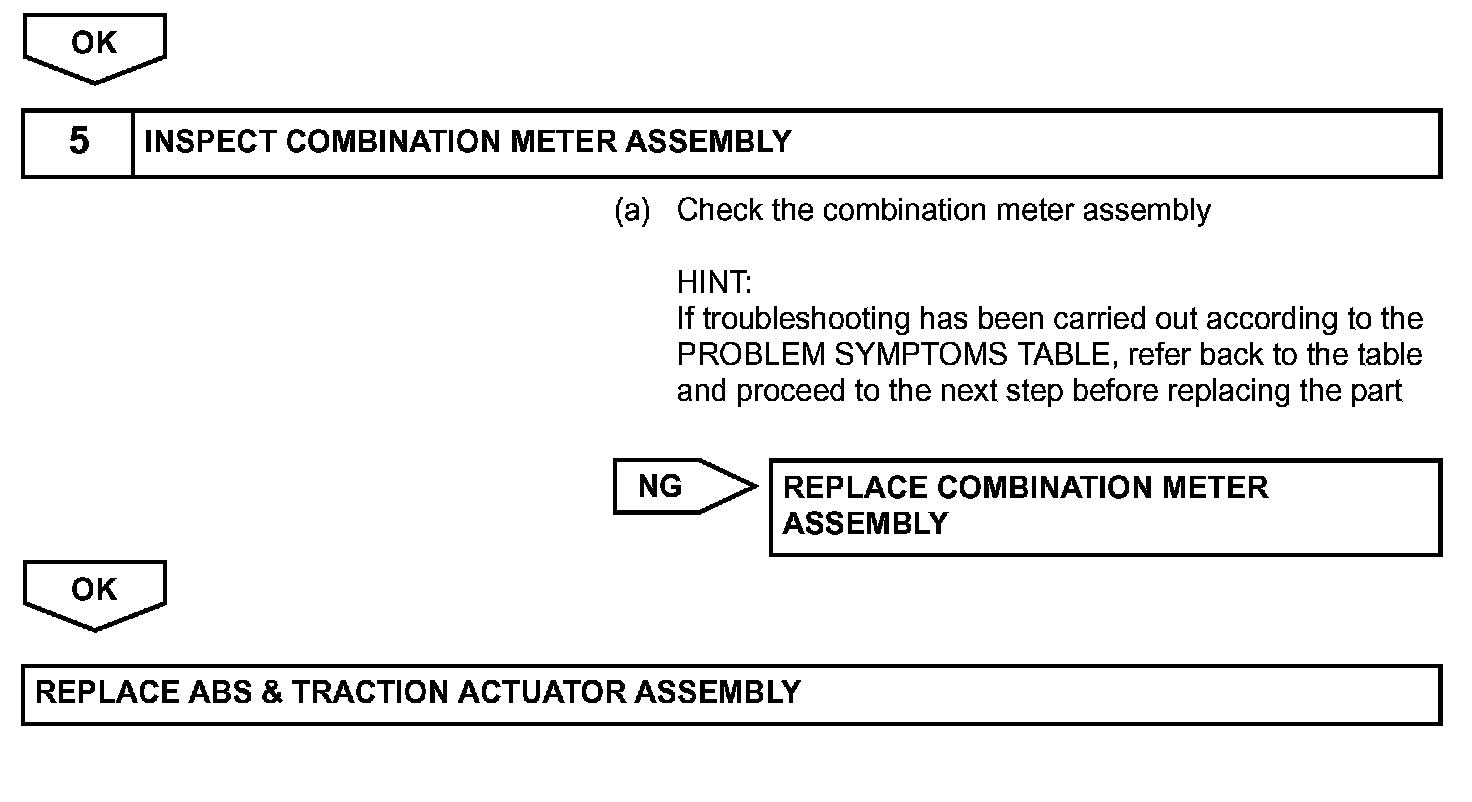

Step 4(Continued)-5:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
