Brake Warning Light Remains ON

Brake Warning Light Remains ON

DESCRIPTION

If any of the following is detected, the BRAKE warning light remains on:

- The skid control ECU connector is disconnected from the skid control ECU.
- The combination meter connector is disconnected from the combination meter assembly.
- The brake fluid level is insufficient.
- The parking brake is applied.
- The EBD is defective.
- There is a malfunction in the skid control ECU internal circuit.

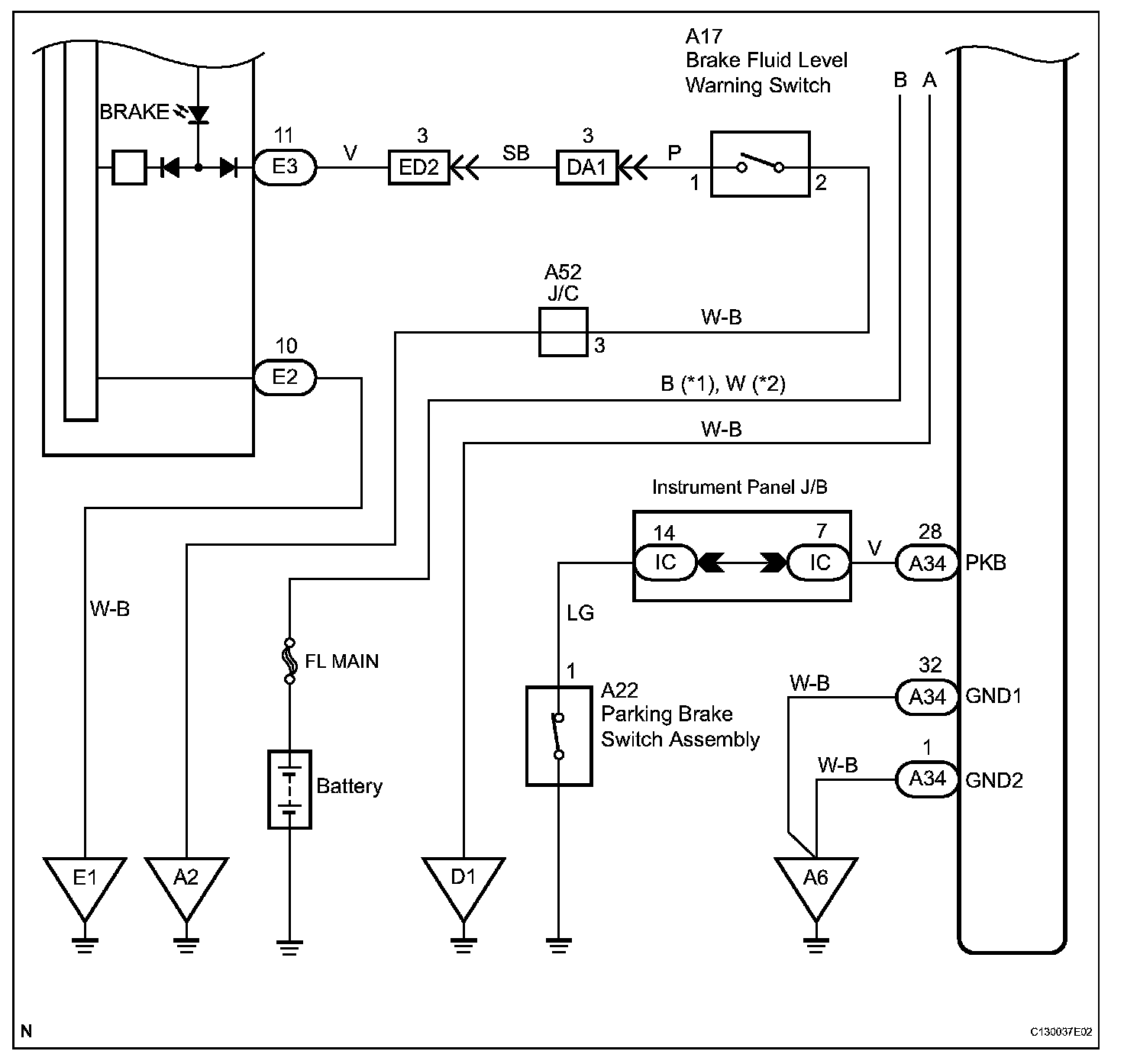

Wiring Diagram:

Step 1:

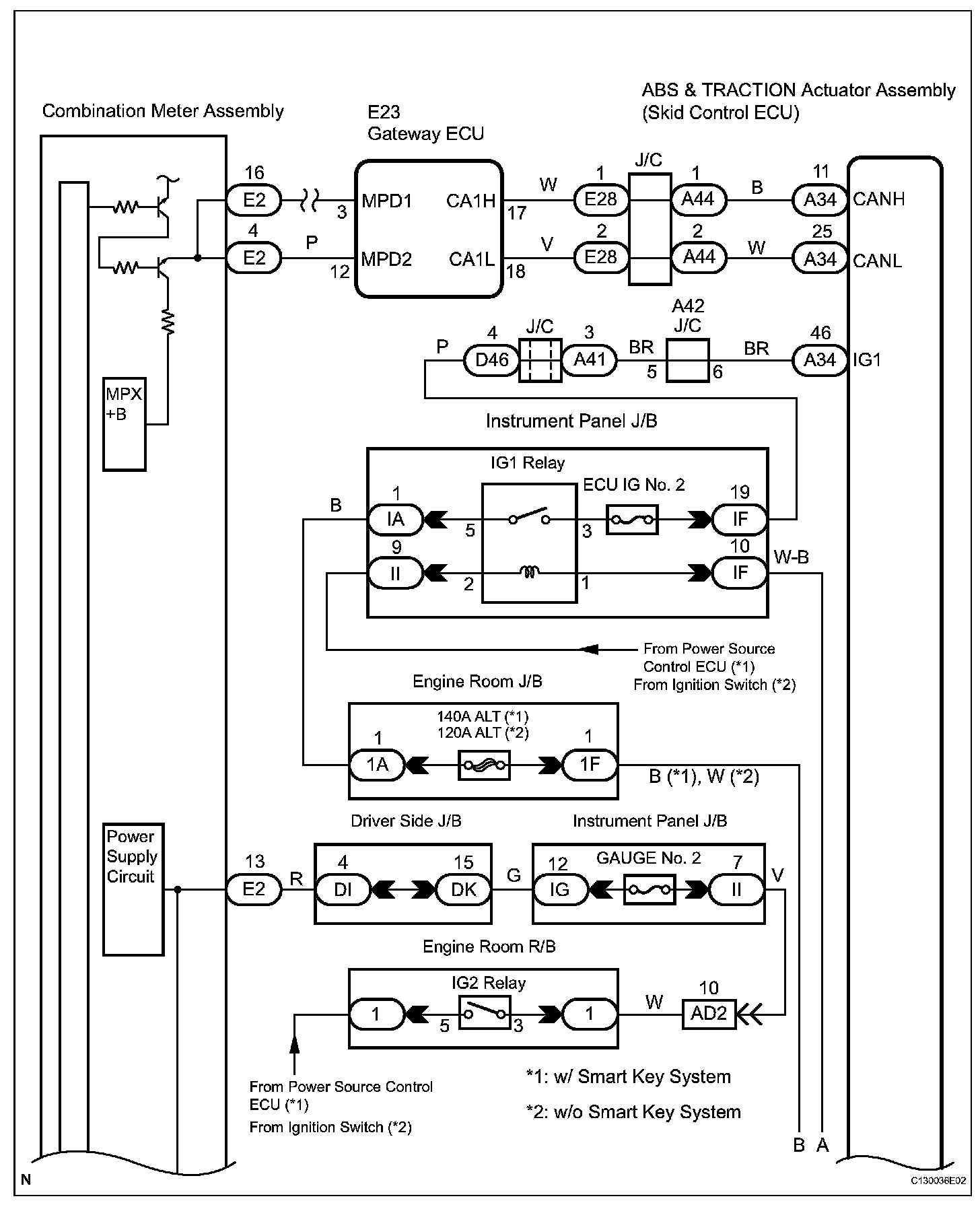

Step 1(Continued)-5:

Step 5(Continued)-8:

Step 8(Continued)-10:

Step 11-12:

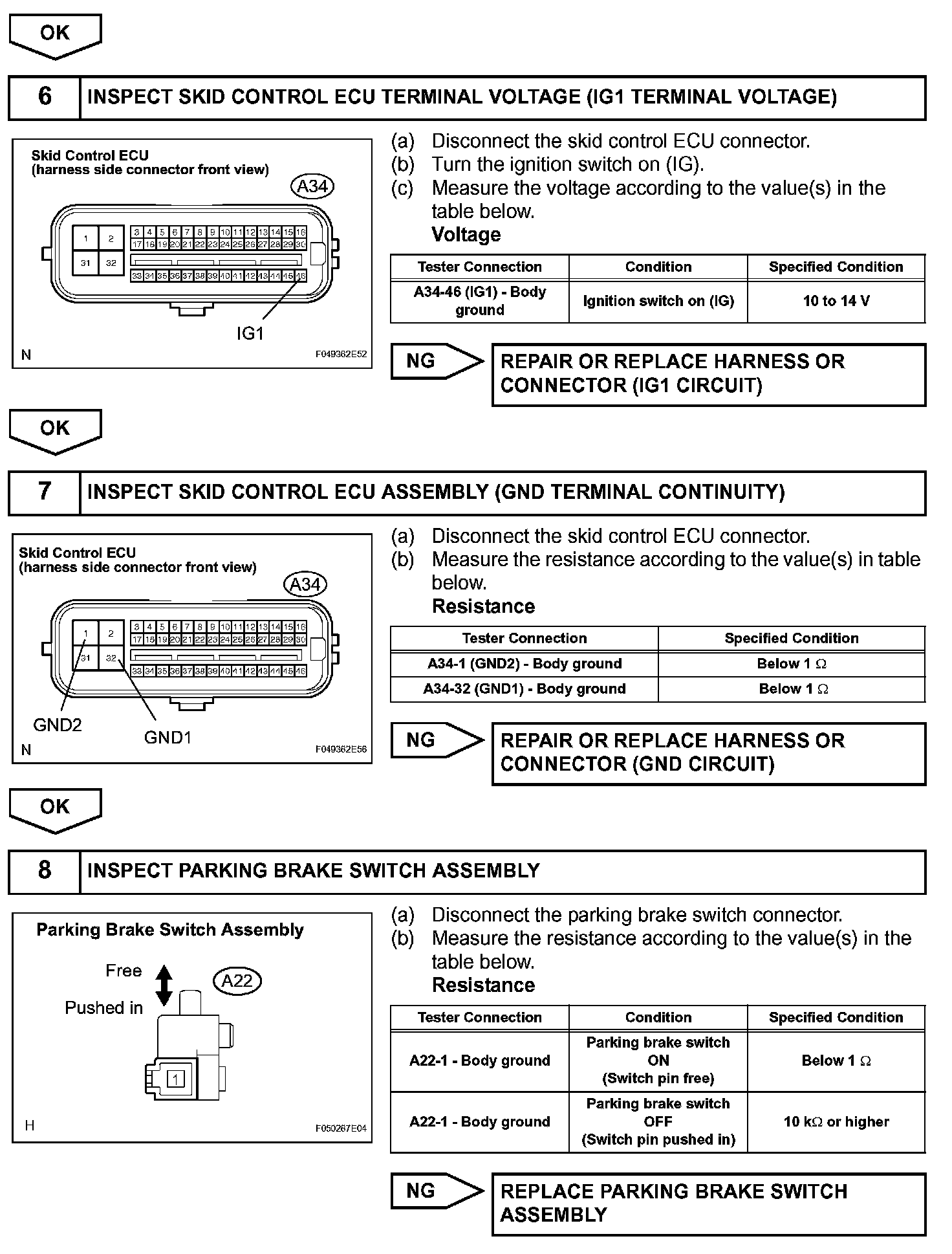

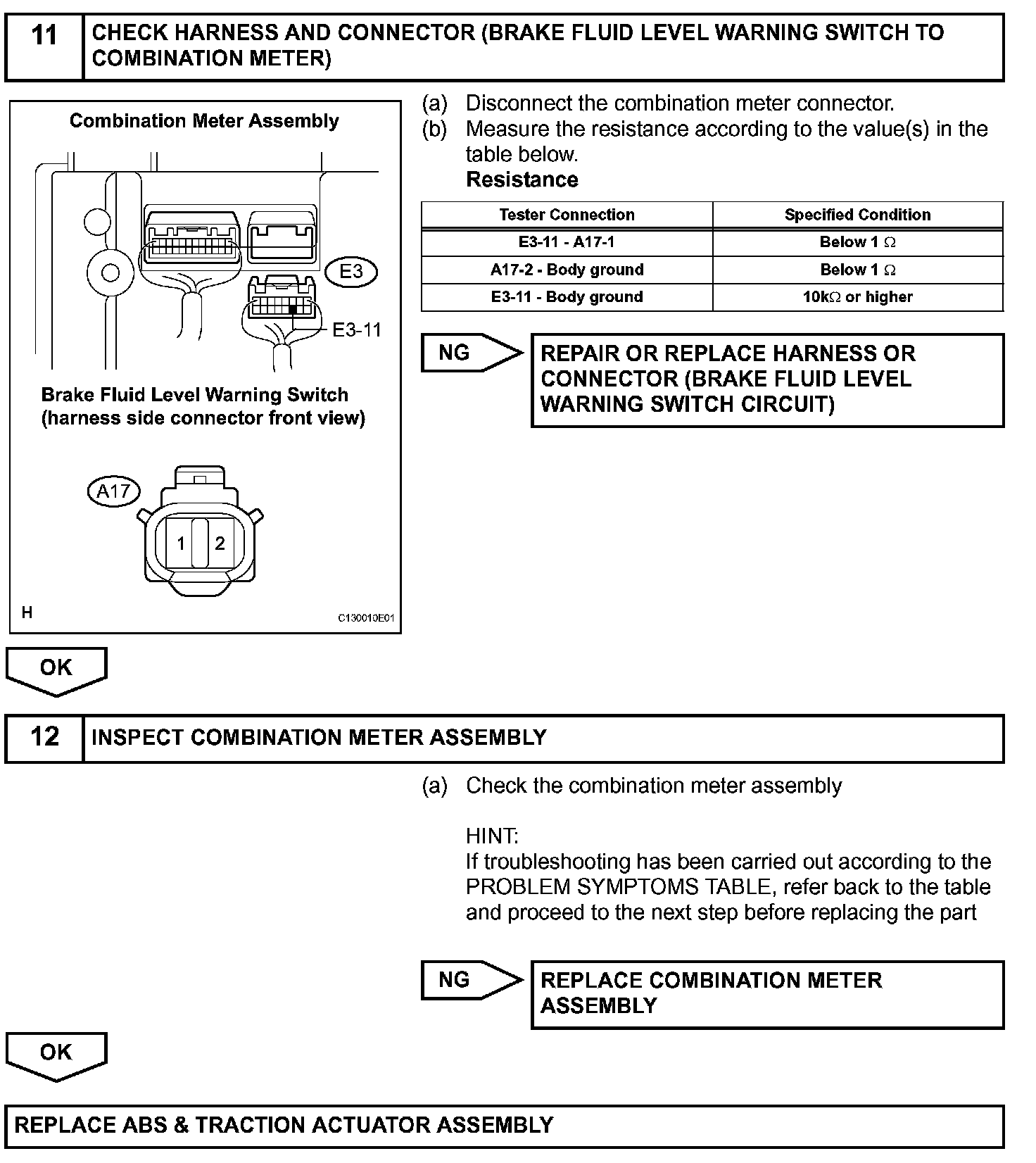

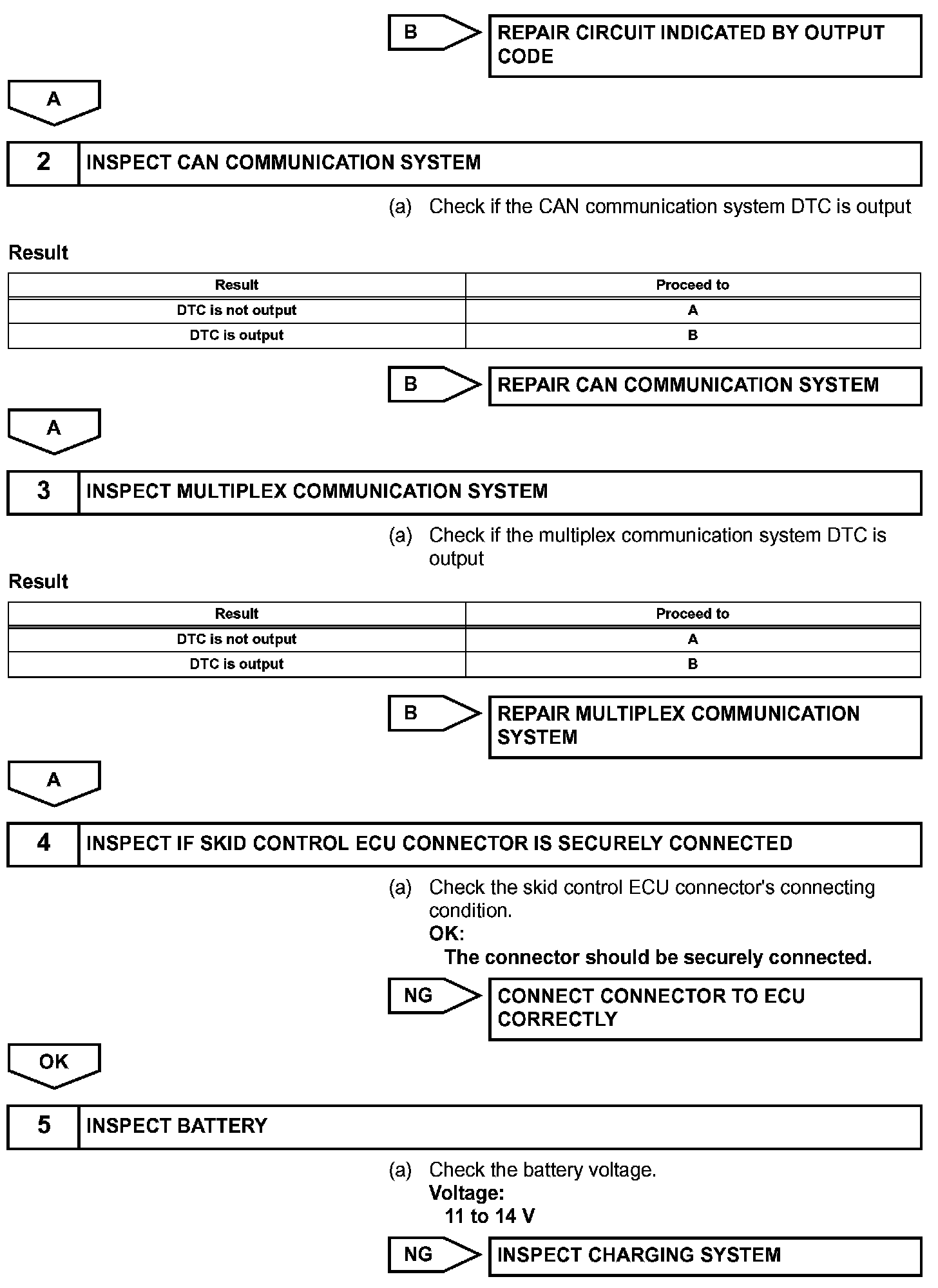

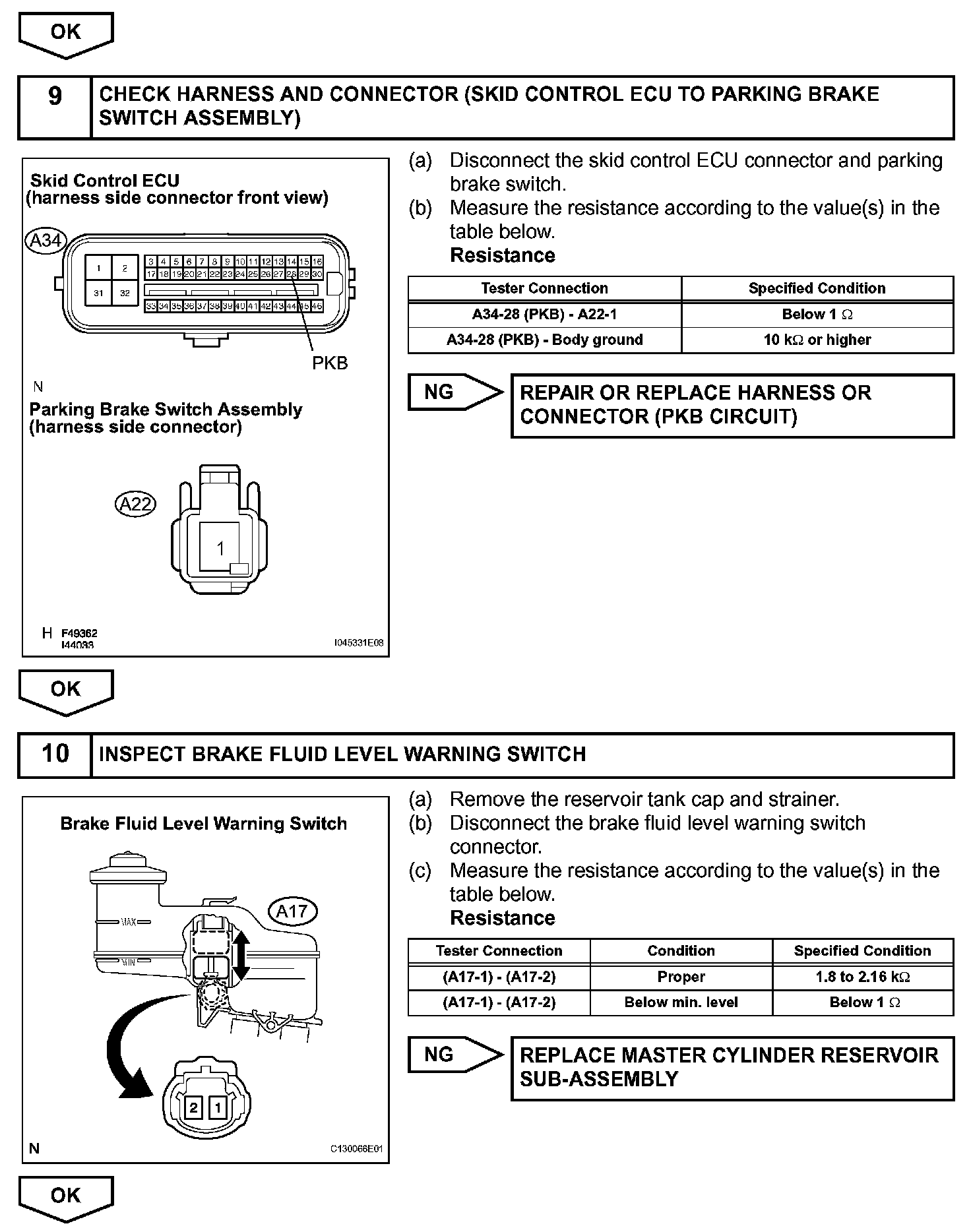

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
