Brake Warning Light Does Not Come ON

Brake Warning Light does not Come ON

DESCRIPTION

If any of the following is detected, the BRAKE warning light remains on:

- The skid control ECU connector is disconnected from the skid control ECU.
- The combination meter connector is disconnected from the combination meter assembly.
- The brake fluid level is insufficient.
- The parking brake is applied.
- The EBD is defective.
- There is a malfunction in the skid control ECU internal circuit.

Wiring Diagram:

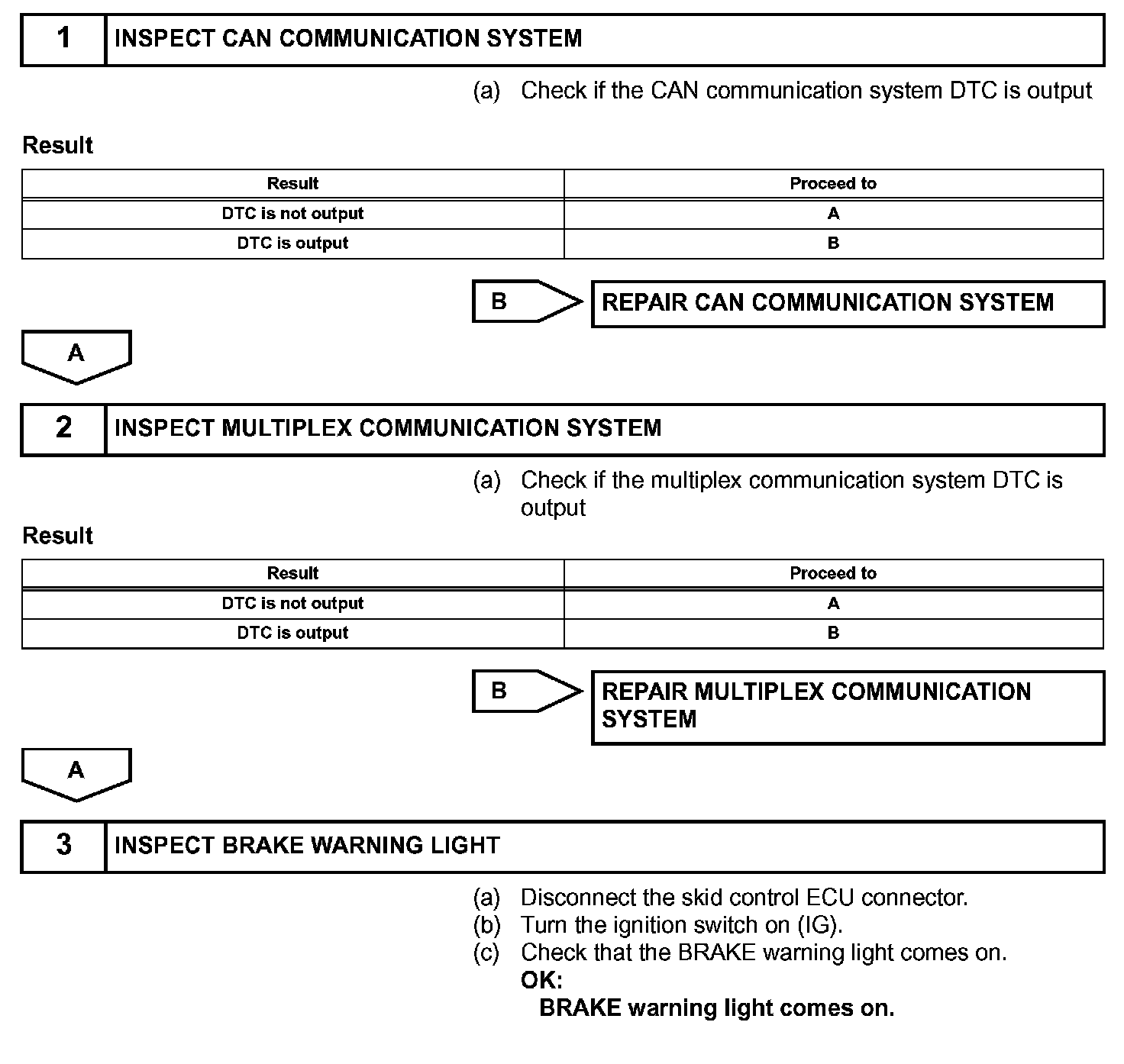

Step 1-3:

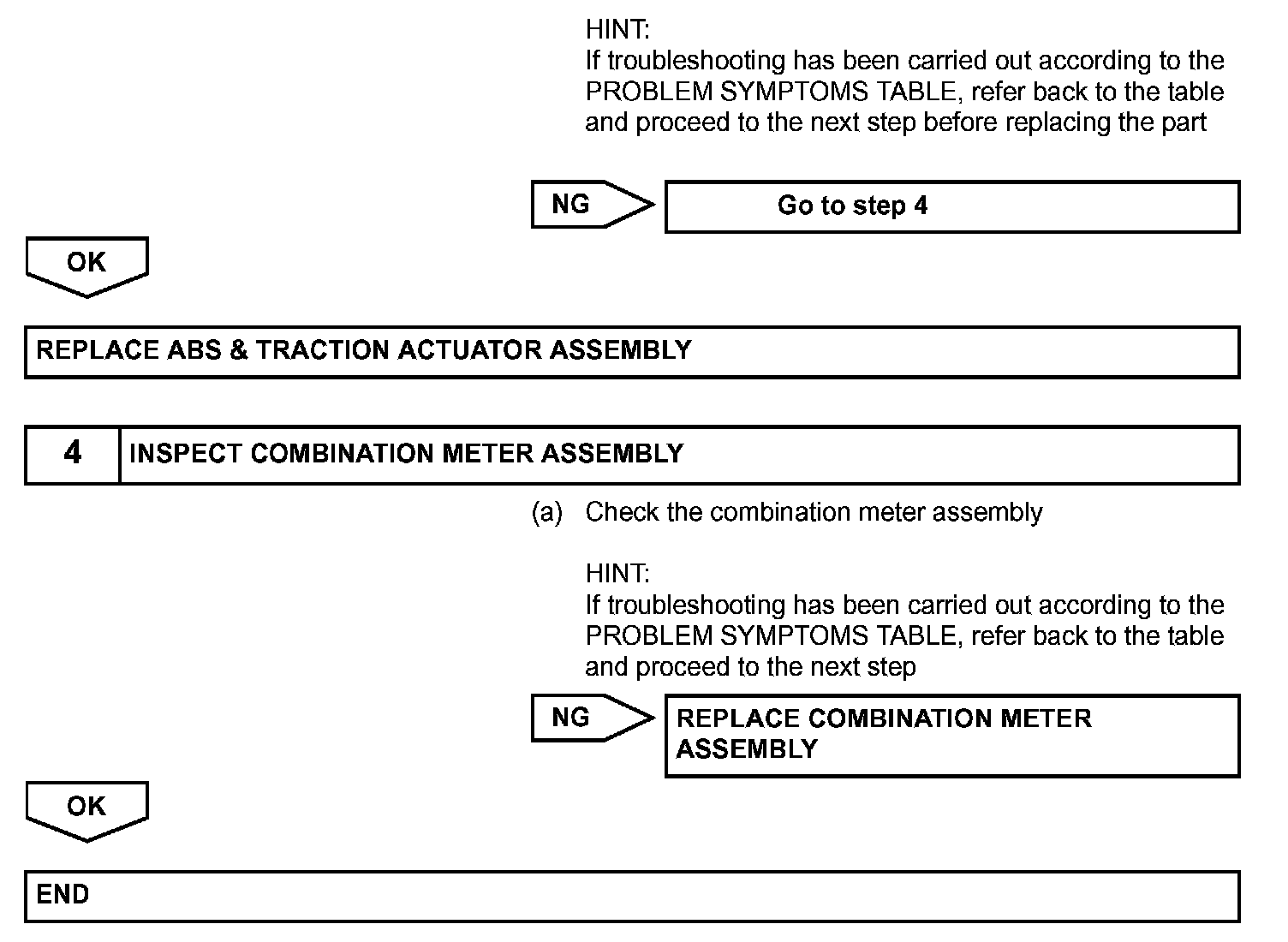

Step 3(Continued)-4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
