ABS Warning Light Does Not Come ON
ABS Warning Light does not Come ON
Wiring Diagram:

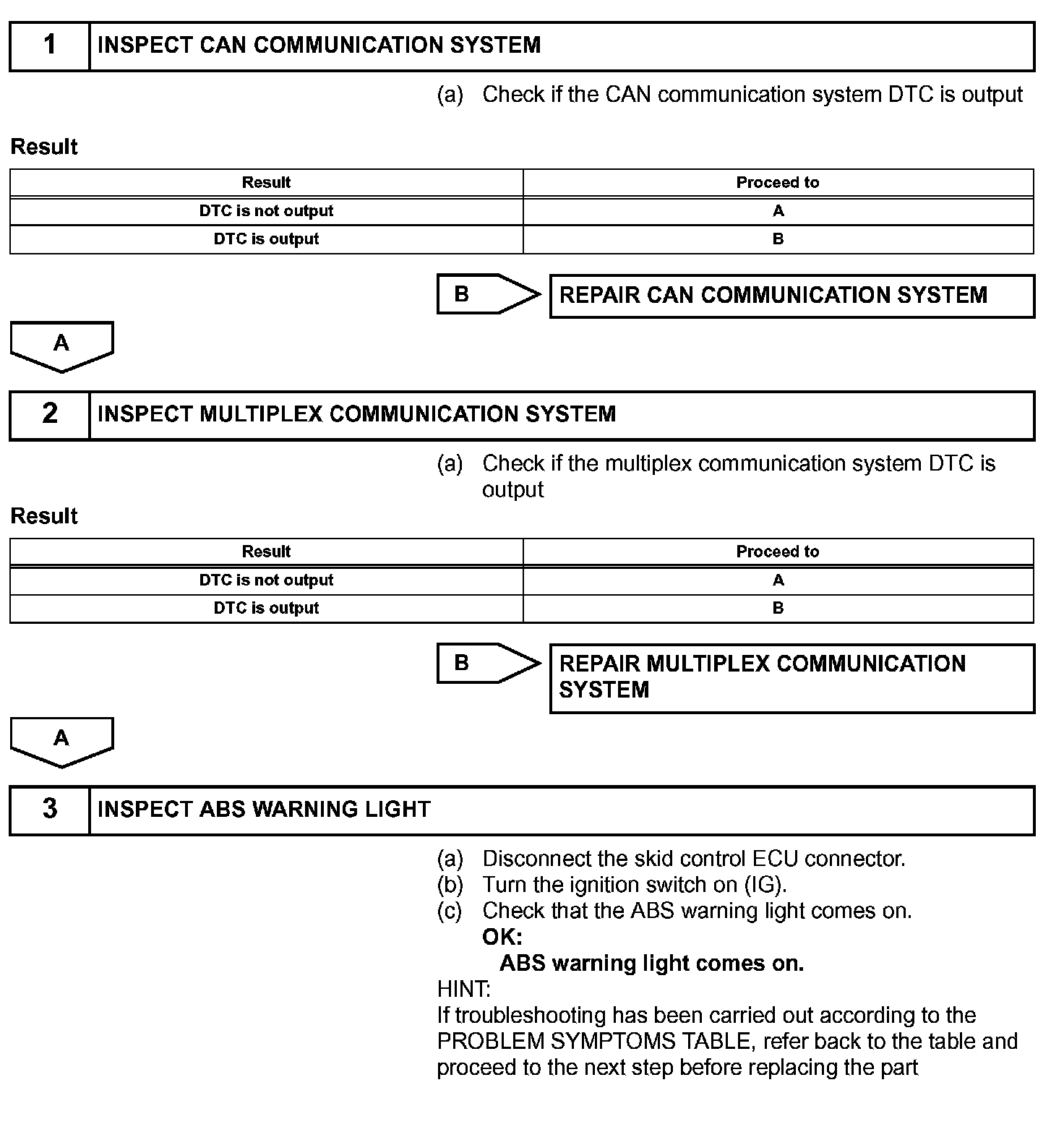

Step 1-3:

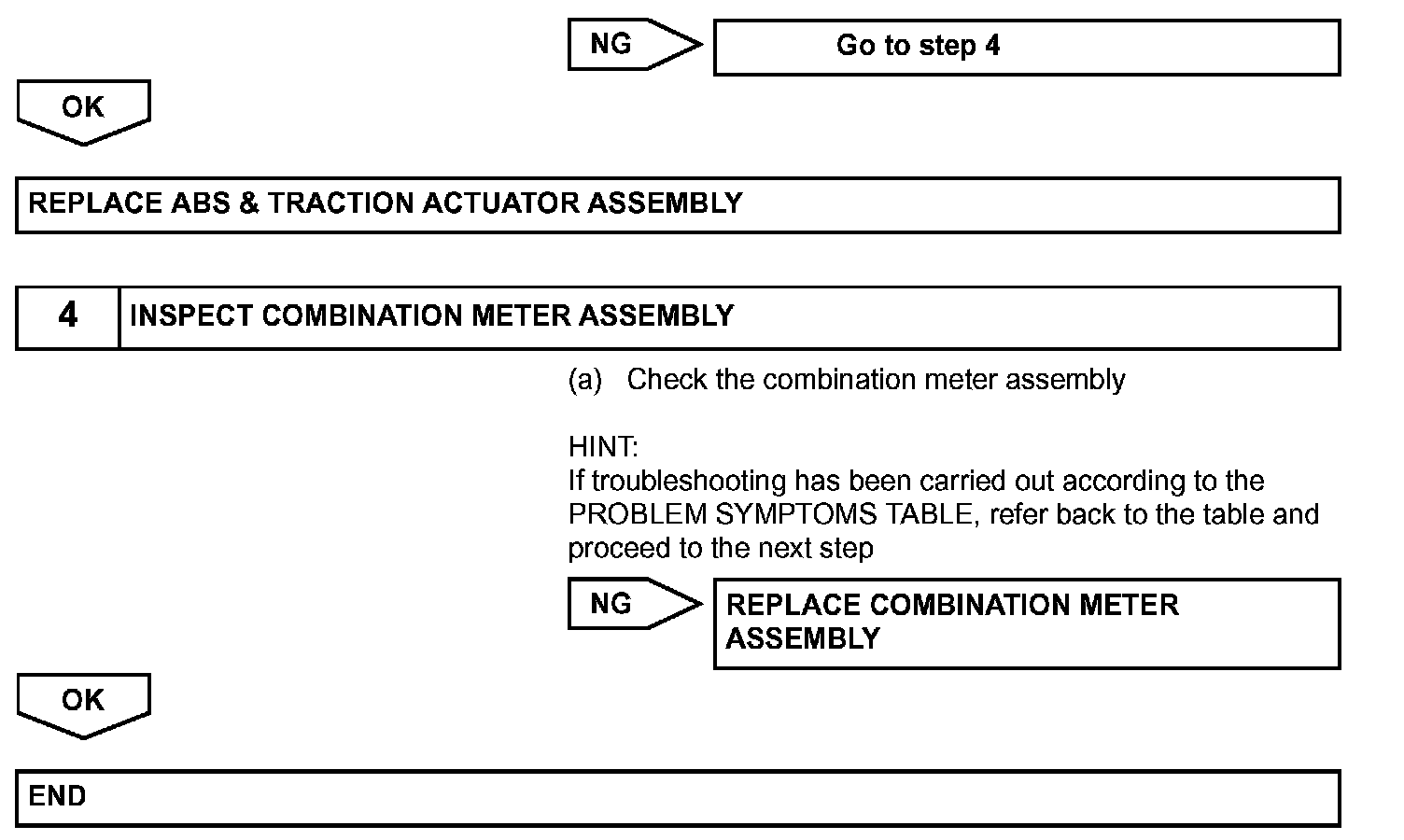

Step 3(Continued)-4:
INSPECTION PROCEDURE
NOTE:
When replacing the ABS & TRACTION actuator assembly, perform zero point calibration.
Calibration
