Brake Warning Light Remains ON
Brake Warning Light Remains ONDESCRIPTION
If any of the following is detected, the brake warning light remains on:
1. The skid control ECU connector is disconnected from the skid control ECU.
2. The brake fluid level is insufficient.
3. The parking brake is applied.
4. The EBD is defective.
Wiring Diagram:

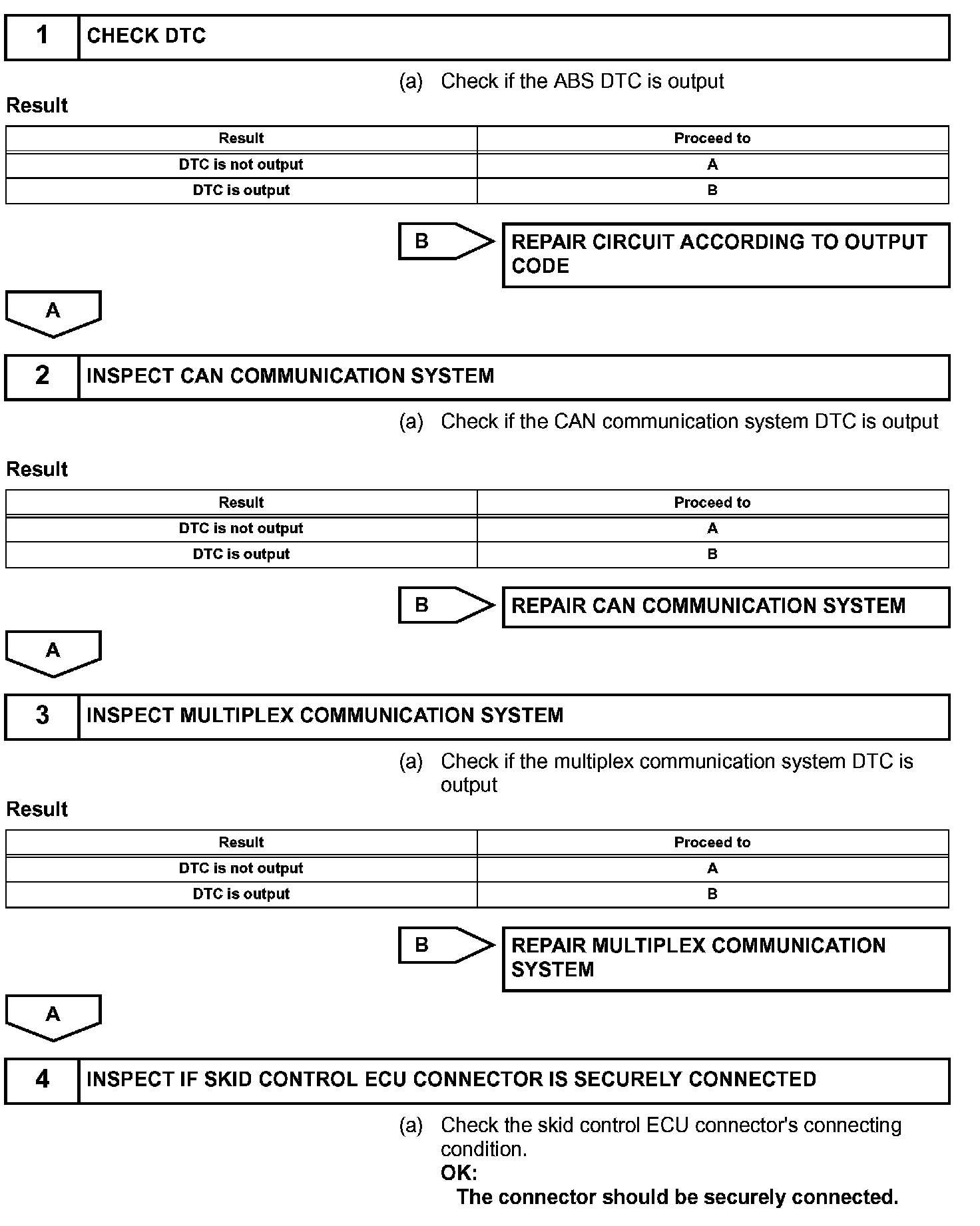

Step 1-4:
Step 4(Continued)-6:

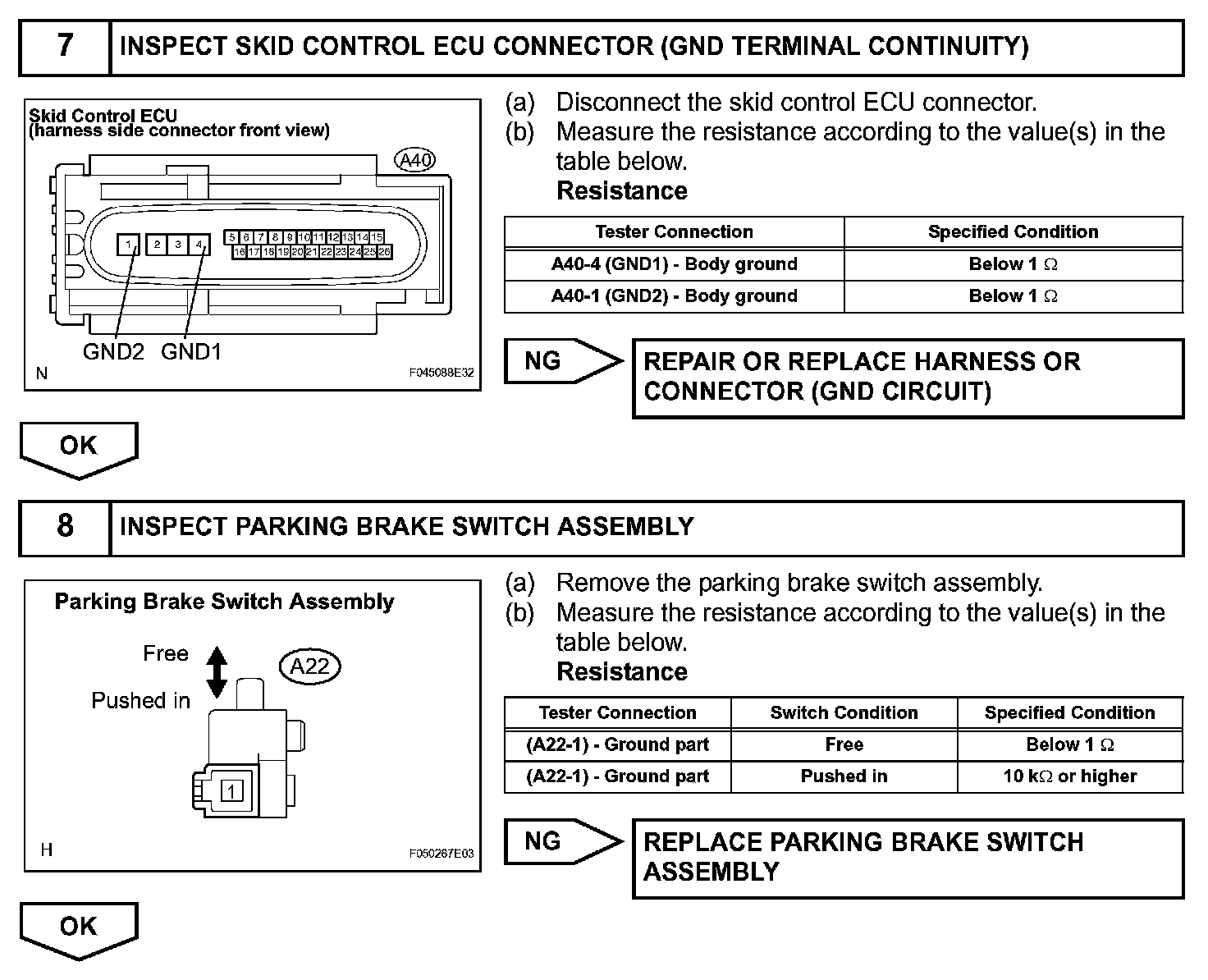

Step 7-8:

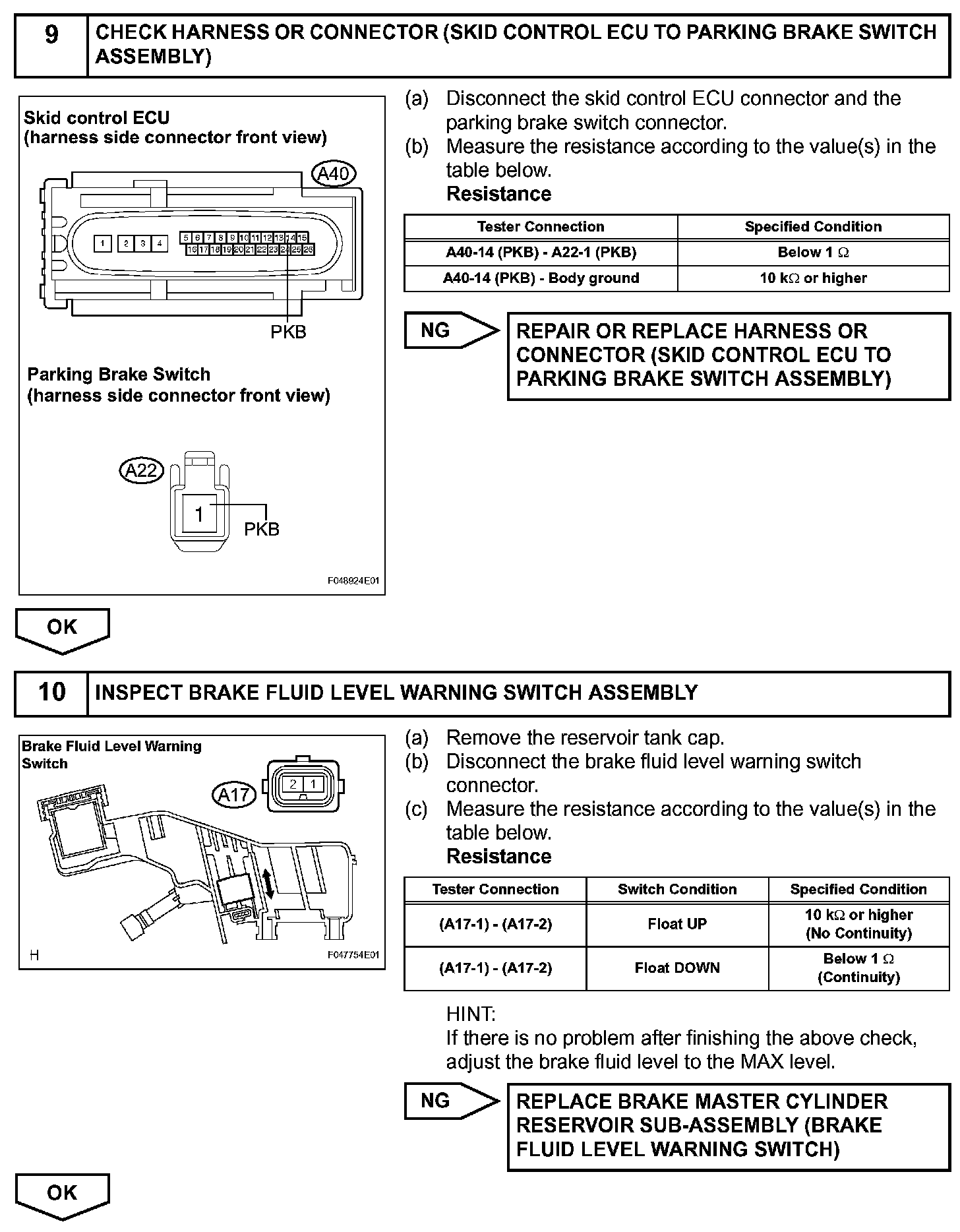

Step 9-10:

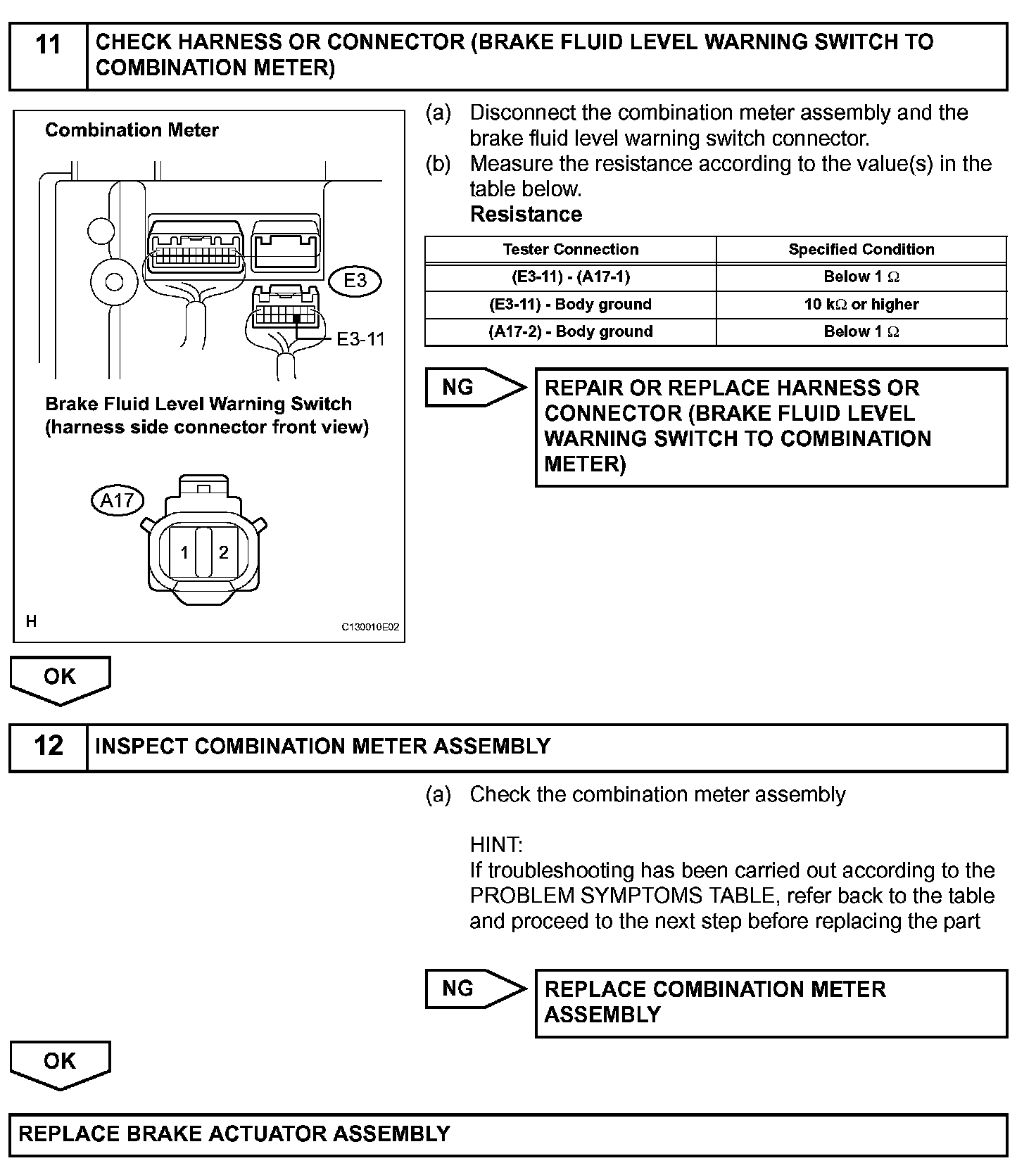

Step 11-12:
INSPECTION PROCEDURE
