Brake Warning Light Does Not Come ON

Brake Warning Light does not Come ON

DESCRIPTION

If any of the following is detected, the brake warning light remains on:

1. The skid control ECU connector is disconnected from the skid control ECU.
2. The brake fluid level is insufficient.
3. The parking brake is applied.
4. The EBD is defective.

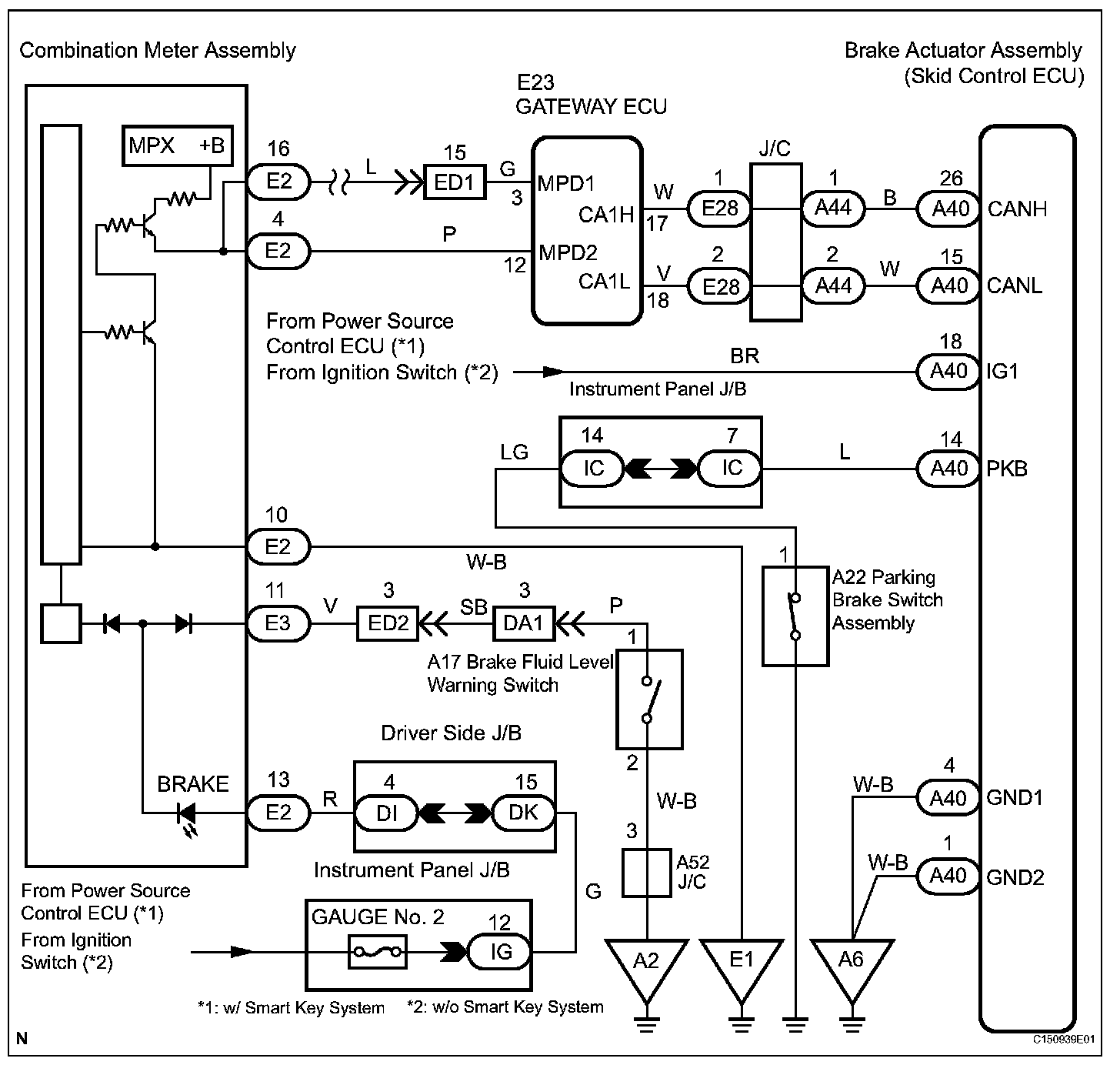

Wiring Diagram:

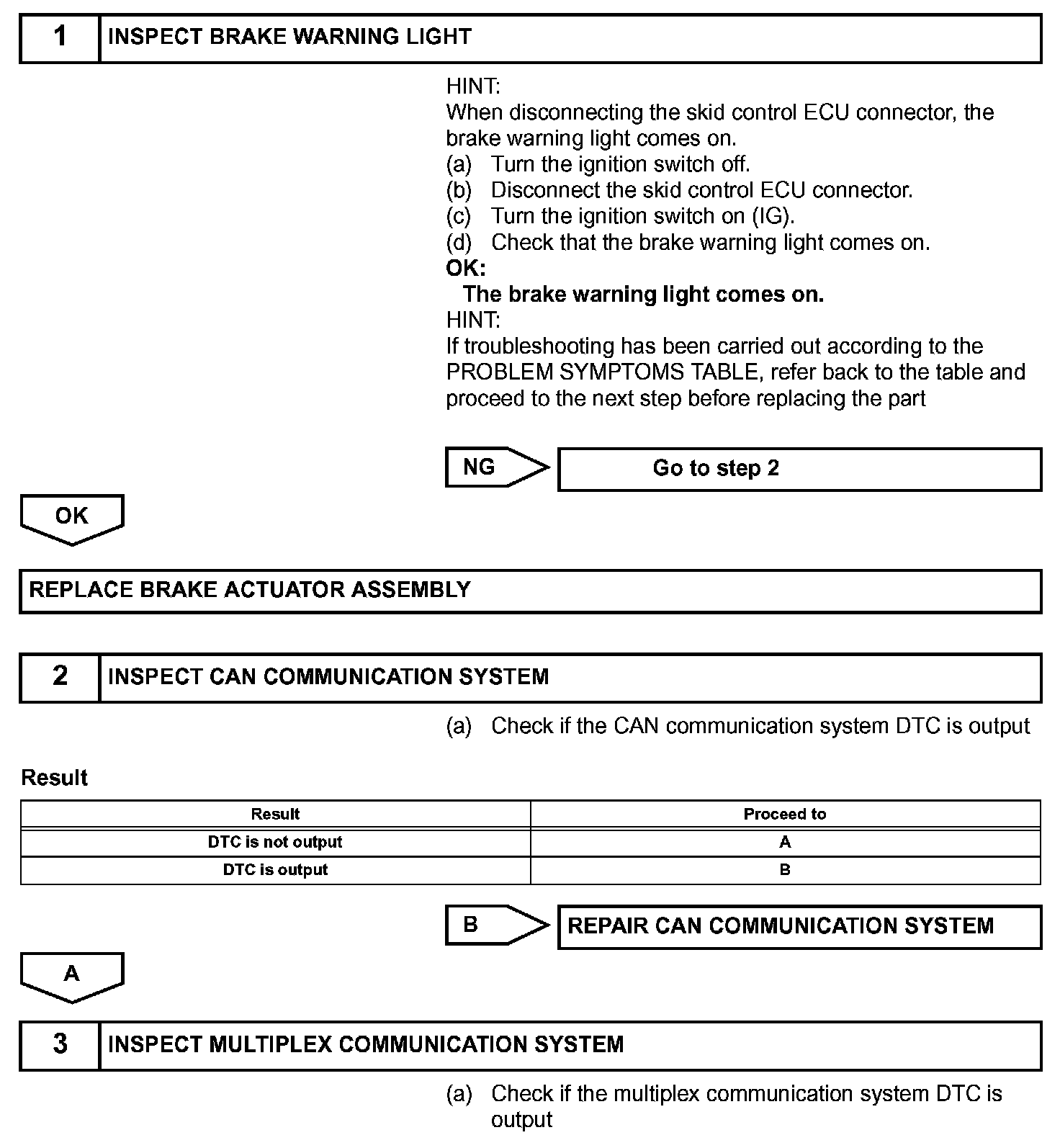

Step 1-3:

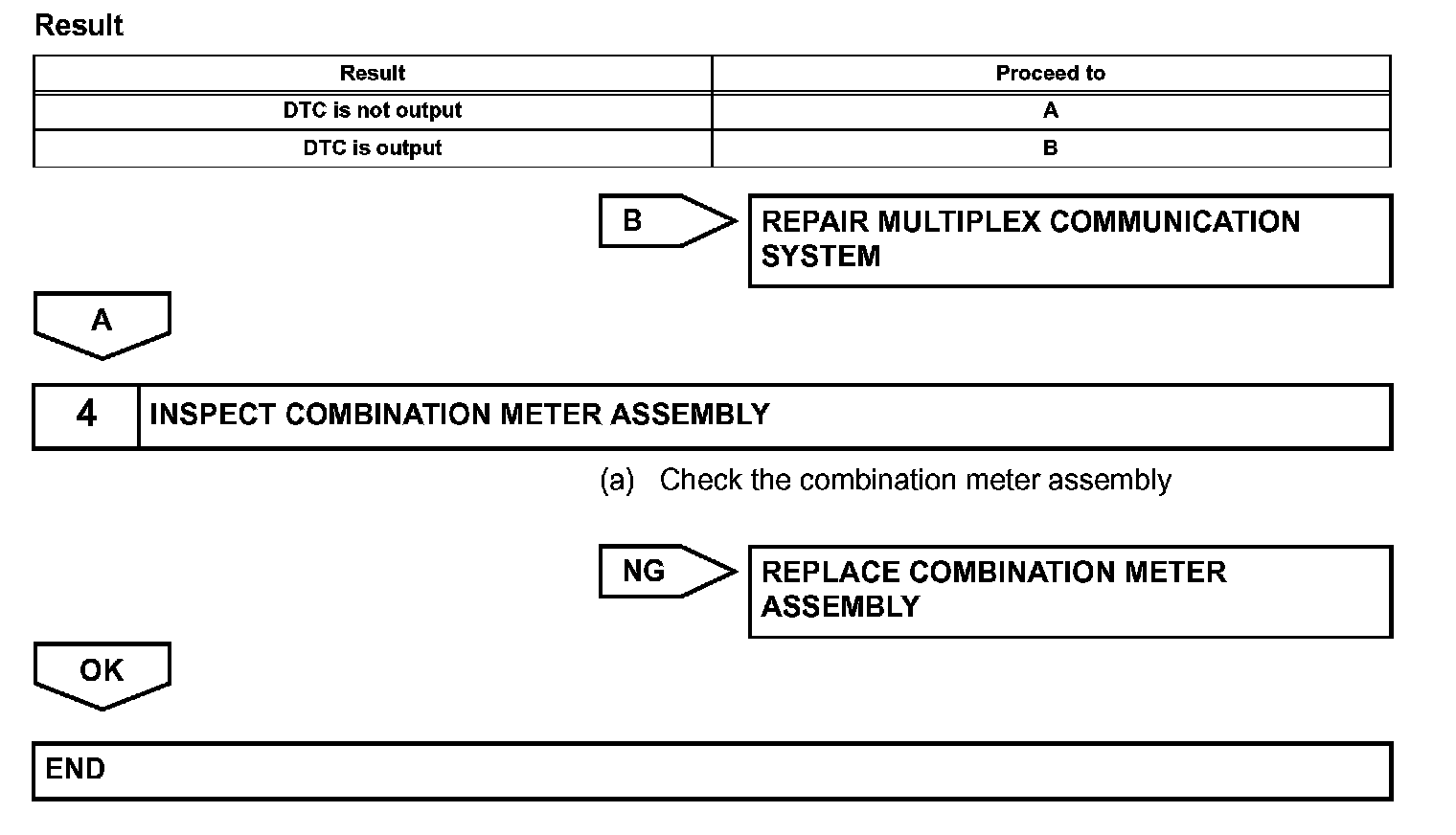

Step 3(Continued)-4:

INSPECTION PROCEDURE
