Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds and SLIP indicator light blinking during VSC operated.

Wiring Diagram:






Step 1-2:

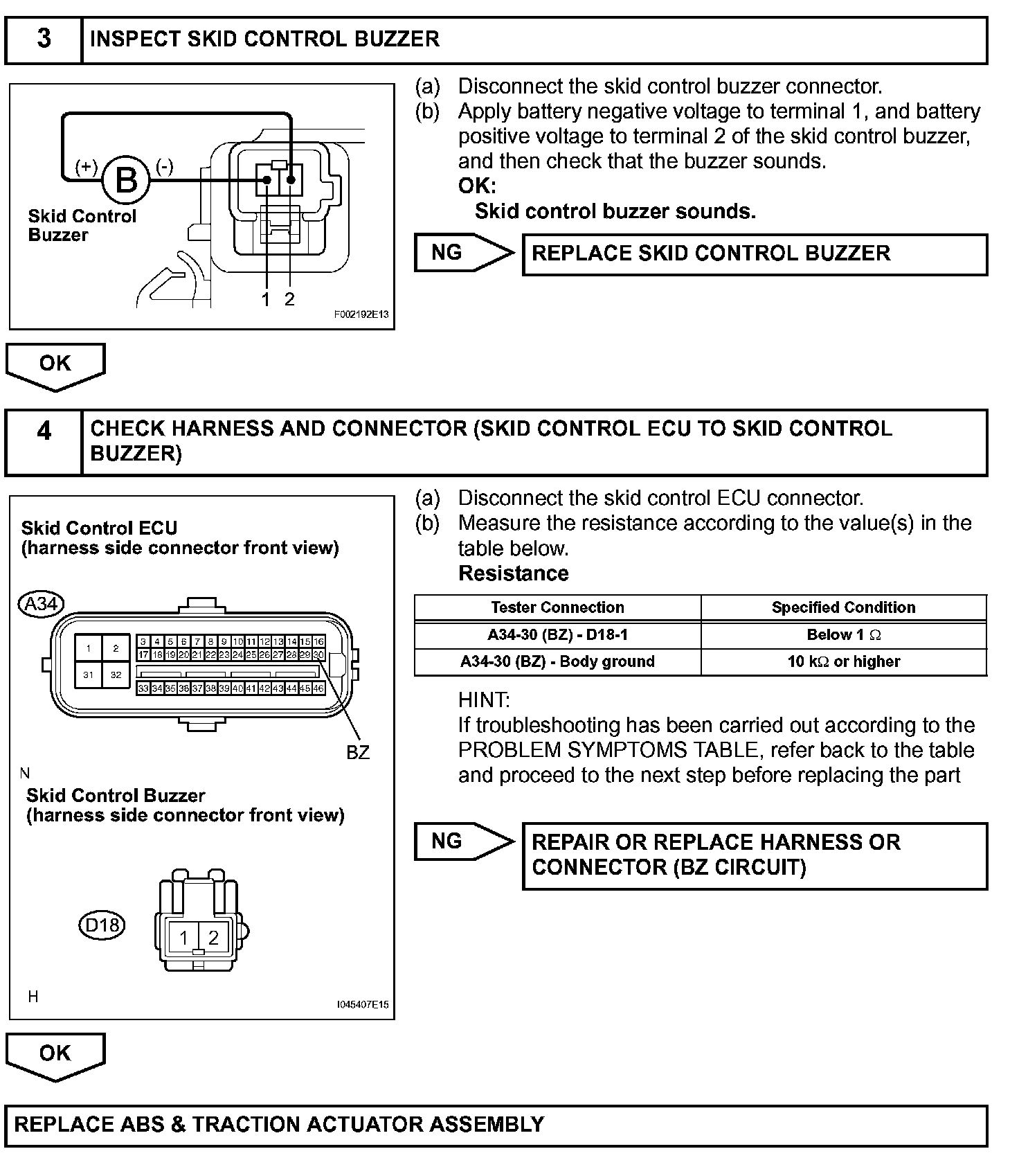

Step 3-4:




INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
